Trinocular Microscopes
A trinocular microscope is a type of compound microscope that features three eyepieces or optical paths. It typically includes two eyepieces for binocular viewing and an additional third optical path designed for attaching a camera or other imaging device. This third optical path allows users to capture still images or videos of the specimen being viewed through the microscope. Trinocular microscopes are commonly used in research, teaching, and various applications where documentation, analysis, or sharing of microscopic images is necessary. They offer both visual observation through the eyepieces and the ability to record or display images, making them versatile tools in fields such as biology, medicine, materials science, and more.

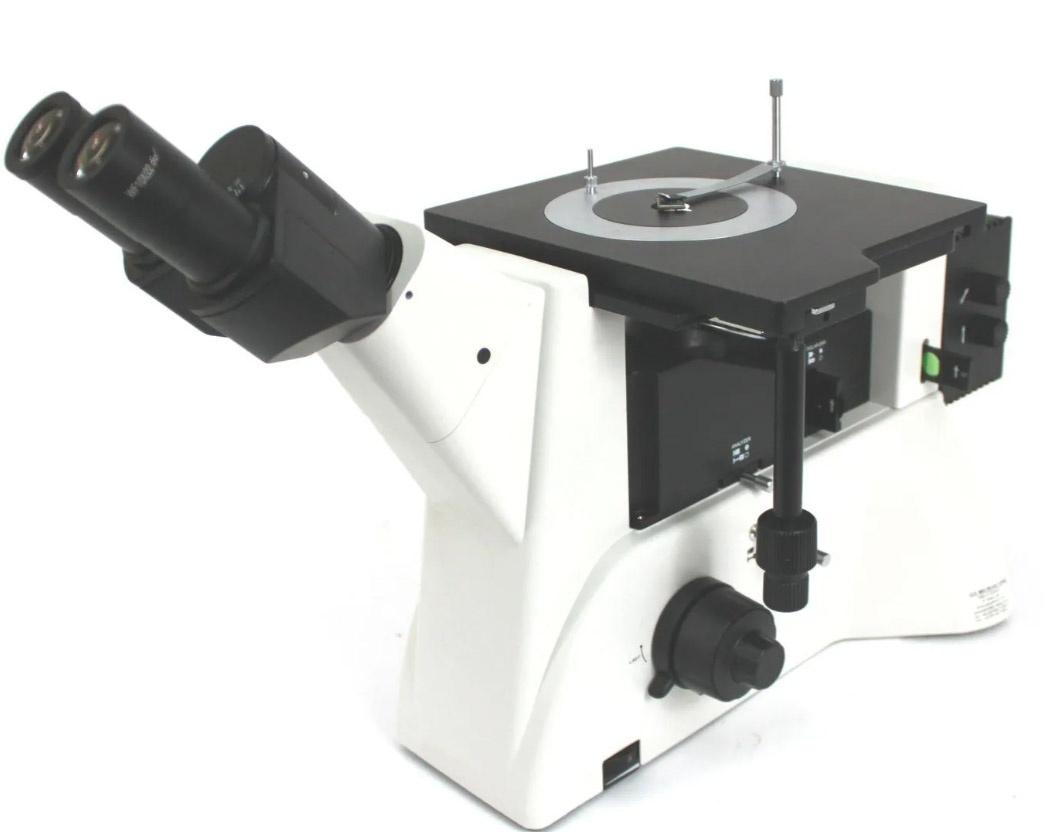

The KXJL20 and KXJL20BD microscope features outstanding UIS optics and a comprehensive range of functionalities, including darkfield (in the BD version) and polarised light capabilities. It is built on an ergonomic frame with a side camera port, offering a superb blend of quality and user-friendliness.
The microscopes comes with a pair of 10X eyepieces boasting a wide field number of 22mm, accompanied by a full set of high-quality, infinity corrected, long working distance, darkfield/brightfield, plan achromatic metallurgical objectives mounted beneath the stage. The stage features a circular mount for effortless rotation during polarised light observations. You can fine-tune the focus with adjustable tension, and a focus lock ensures objective protection.
For illumination, a high-intensity 50W halogen lamphouse is equipped, complete with adjustable intensity, field and aperture diaphragms, along with a set of Y, G, B, and diffusion filters. A range of optional accessories is available, including camera adaptors, digital cameras, image analysis software, additional objectives, and eyepieces. Additional product details:
- Eyepieces and Objectives: Pair of 10X Widefield Eyepieces, 4 BD Plan Achromatic Infinity Objectives; 10X, 20X, 50X, 80X
- Head: Trinocular head with interpupillary distance adjustment
- Stand & Focus Mechanism: Large substantial stand with coaxial coarse/fine focus
- Stage and Condenser: Large Mechanical Stage
- Illumination: 50W Halogen Lights with adjustable intensity

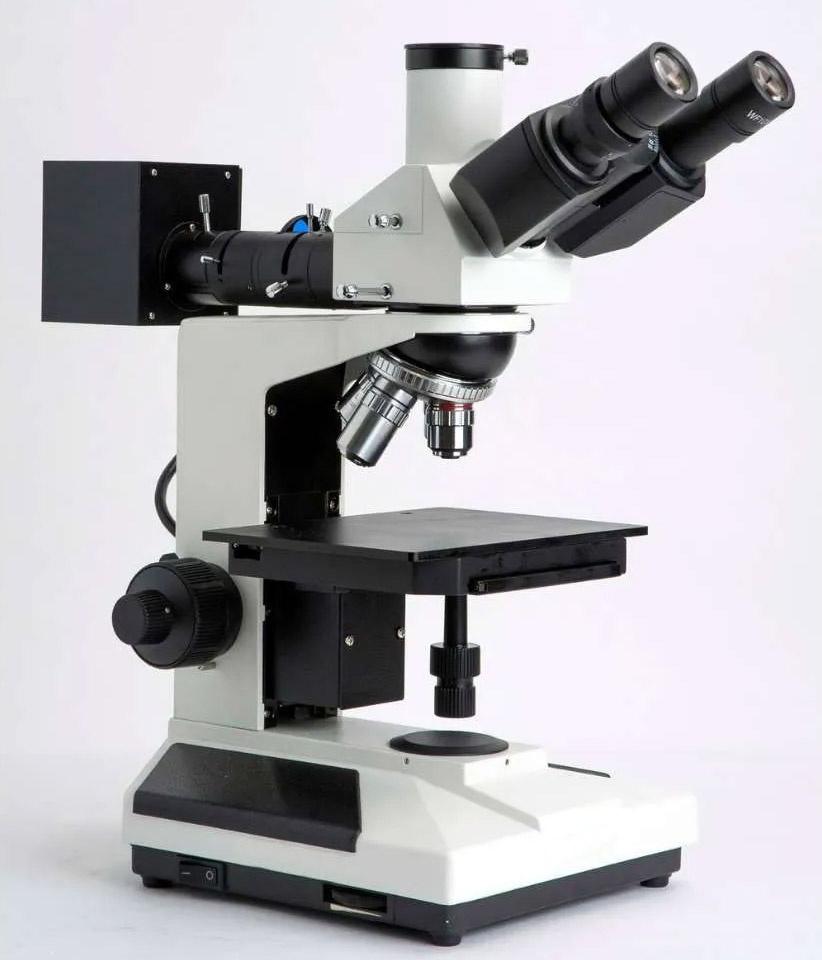

KL2003AHTG 50X-600X, Trinocular, Routine Materials Microscope, Reflected Light
The KL2003AHTG Materials Compound Microscope stands out as a robust metallurgical microscope, offering remarkable value for its price point. Its solid construction and optical quality make it a popular choice for both industrial and educational use. This microscope is user-friendly, quick to set up, and features incident LED illumination, ensuring longevity and cost-effectiveness. The KL2003AHTG Routine Materials Microscope is designed for budget-conscious users seeking good-quality microscopy. It boasts a sturdy all-metal body and quality glass optics, making it suitable for inspection tasks and routine materials and metallurgical applications. Key Features of the KL2003AHTG Materials Microscope:
- Equipped with a trinocular head, facilitating easy attachment of a microscope camera (via an adaptor) for image and video capture.
- The microscope comes with four high-quality plan achromatic metallurgical objectives on a reversed objective turret, offering a magnification range from 50X to 600X.
- It includes a mechanical stage with XY movement controls and coarse and fine focus adjustments. The focus tension is adjustable, and a focus lock safeguards the objectives from potential damage.
- Illumination is provided by an integrated LED lamp with adjustable intensity and a polariser to reduce glare from reflective surfaces. The package also comprises field and aperture diaphragms, along with a set of yellow, green, blue, and diffusion filters.
- A range of options is available, including camera adaptors, digital cameras, image analysis software, additional objectives, and eyepieces.
- Head: Trinocular head with interpupillary distance adjustment
- Eyepieces: 10X widefield eyepieces
- Objectives: Four Plan Achromatic objectives: 5X (WD 18mm), 10X (WD 8.8mm), 40X (WD 3.7mm), and 60X (WD 1.3mm)
- Stand & Focus Mechanism: Sturdy stand with coaxial coarse/fine focus, adjustable tension, and limit stopper
- Maximum Sample Height: 28mm
- Stage and Condenser: Double-layer mechanical stage, 185mm x 140mm (Movement Range 75mm x 50mm)
- Illumination: Reflected LED lamp with a rotatable polariser to minimise glare, field and aperture diaphragms, plus yellow, green, blue, and frosted glass filters on a wheel.
