| Eyepieces with Scales |
| Model |
Details |
| KMEYE10XRETPL |
10X WideField fn20mm Focussing Eyepiece with Reticle Horizontal Scale. Fits a 23.2mm (ID) Eyep.Tube. Suitable for KXJL17AT, KXJL17ATPOL, KXJL20, KL2003AHTG |
 |
| KMEYE10XRETPL3200 |
10X Focussing Eyepiece with 10mm Reticule, FN22. Suitable for KXJL20, KXJL20BD, KXJL101A, KXJL302BD, KMICM100BD, KL3230BD, KL3230 |
| KMEYE10XRETPL30230MM |
10X Focussing Eyepiece with 10mm Reticule/100 divisions, FN22 |
| Adaptors for Phototube |
| KMAD23.2MML |
23.2mm Phototube Adaptor -Converts L Series Trinocular Head Phototube to 23.2mm Eyepiece Tube
Suitable for use with all of the above microscopes except the Toolmaker's Microscope |
 |
| Microscope Eyepiece Tube : C-Mount Adjustable Camera Adaptor 0.50x |
Weight: 0.3 kg
Camera Mount: 23.2mm, C-Mount, Eyepiece Tube Mount
Eyepiece Diameter: 23.2mm
Magnification: Less than 2x
Objective Lens Power: 0.5x |
 |
| Objectives |
| KMOBJ20XNCCPLANACH |
20X non-coverslip corrected Plan Achromatic Objective for 160mm tube length 20XPL 160/-- NA0.4 WD 8.6mm. Suitable for use with: KL2003AHTG, KL3030 |
|
| KMOBJ60XNCCPLANACHRPLL |
60X non-coverslip corrected Plan Achromatic Objective for 160mm tube length. Suitable for use with: KL2003AHTG, KL3030 |
|
| KMOBJ60XNCCPLANACHRINFPLLBD |
60X non-coverslip corrected Plan Achromatic Infinity Corrected Objective for BD. Suitable for use with: KXJL20BD |
|
| KMOBJ80XDRYNCCPLANACHRPLL |
80X/0.80 non-coverslip corrected Plan Achromatic LWD Objective for 160mm tube length, NCC. Suitable for use with: KMXJL17AT & KMXJL17ATPOL |
|
| KMOBJ100XDRYNCCPLANACHRPLL |
100X dry non-coverslip corrected PLL Plan Achromatic Objective for 160mm tube length. Suitable for use with: KL2003AHTG, KL3030 |
|
| KMOBJ100XDRYNCCPLANACHRINFPLL |
100X dry non-coverslip corrected PLL Plan Achromatic Objective for Infinity corrected optics KL32** Microscopes |
|
| KMOBJ100XOILNCCPLANACHRPLL |
100X Oil Immersion non coverslip corrected Plan Achromatic Objective for 160mm tube length. Suitable for use with: KL2003AHTG, KL3030 |
|
| Microscope Cameras |
| KCAM-U3-5 5.1MP resolution camera |
- Utilizes an advanced Sony sensor for outstanding colour rendering and exceptional spatial resolution.
- Delivers high-definition display of 5.1-megapixel images at a comfortable 14.2 frames per second (USB-3).
- Offers full computer output via USB, enabling advanced imaging with enhancements, processing, and extensive manual measurement through the provided Capture software.
- Provides extended depth of focus and image stitching capabilities, along with over 200 functions within Capture, including flat field live correction, extended focus, image stitching, annotations with calibrated scalebars, and image analysis.
|
 |
| KCAM-Upro-6.3, 6.3MP resolution camera |
- Incorporates an advanced Sony sensor renowned for exceptional colour accuracy and remarkably high spatial resolution.
- Presents a high-definition display of 6.3-megapixel images at a comfortable 15 frames per second, all thanks to the USB-3 connectivity.
- Offers full computer output via USB, empowering advanced imaging with image enhancements, processing, and comprehensive manual measurement capabilities, all facilitated by the bundled Capture software.
- Equipped with Extended Depth of Focus and Image Stitching Capability for enhanced imaging versatility.
|
| KCAM-HiChrome HD Microscope Camera |
- Sony Starvis sensor with a 1080-P resolution, this camera offers:
- Direct output to an HDMI monitor, eliminating the need for a computer.
- The ability to capture images directly onto the camera itself, thanks to the built-in standard SD card writer, with no computer necessary.
- Complete control over image settings via parameter adjustments shown on the screen.
- A built-in calibrated measurement feature that operates independently and offers defined objective magnification ranges.
|
 |

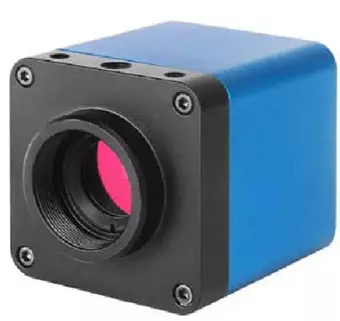

| KCAM HiChrome-HD Microscope Display Camera with Screen |
As above, with the addition of an attachable screen |

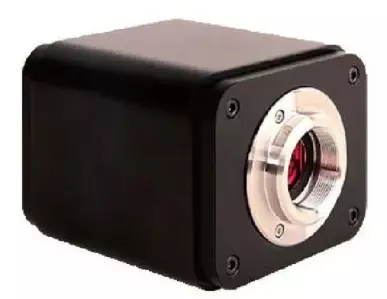

| KCAM HiChrome-HR4 |
- Advanced sensor that excels in delivering exceptional colour accuracy and outstanding spatial resolution.
- Presents 4K images at an impressive 60 frames per second for comfortable viewing and precise focusing.
- Offers multiple output options, including direct connection to an HDMI monitor for computer-free use or seamless connectivity through GigE and 5G secure wireless to the comprehensive Capture T software suite.
- Allows direct image capture onto the camera, eliminating the need for a computer, thanks to the integrated standard SD card.
- Provides complete image control via parameter settings displayed on the screen.
- Enables full computer output through USB for advanced imaging with image enhancements, processing, and extensive manual measurement capabilities, all facilitated by the included Capture software.
- Equipped with Extended Depth of Focus and Image Stitching Capability for added versatility.
|
 |
