Portable Valve Grinding Machines

The Larslap range of portable industrial valve grinders offered by Kemet are a patented design concept that are a proven solution for on-site valve reconditioning.

Repairing leaking valves in industrial pipelines is a laborious operation involving extended downtime, production losses and substantial unwanted costs. Losses are minimized if valves can be reground in situ, precluding the need to dismantle and remove defective valves from the pipeline. Available in overlapping sizes, these grinders combine unsurpassed versatility with exceptional ease of handling and operation. A combination guaranteed to give these grinders cutting edge performance, whatever the valve location.

These valve grinding machines have unique, lightweight universal clamping system which allows rapid and accurate mounting for grinding valve seats or wedges. Operating checks and replacement of abrasive discs can be carried out without disturbing the assembly. No realignment is necessary when repositioning the grinding head.

Model SH - For gate valves and wedges with flat seats

Valves with flat seats ø 10 - 50mm (0.4” - 2”)

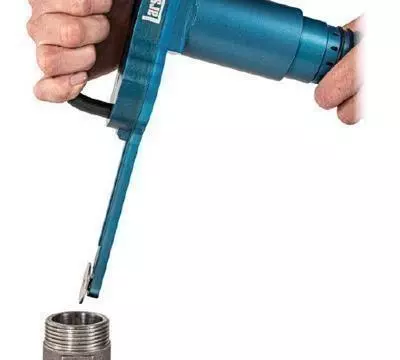

grinding gate valves and wedges with flat seats

Model K & K Universal - For globe, control and safety valves

Valves with flat seats Ø 8 - 150 mm (1/4” - 6”) and/or angled seats Ø 8 - 65 mm (1/4” - 2 1/2”)

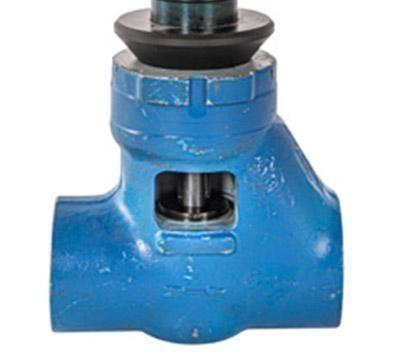

grinding safety and control valves with flat and conical seats

Model FL-H - For gate, globe, check, safety and control valves

Valves with flat seats ø 50 - 200 mm (2” - 8”)

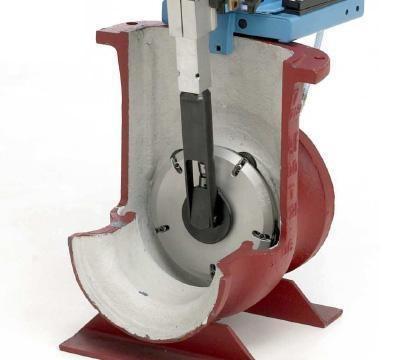

grinding gate, globe, check, safety and control valves

Model S - For gate and parallel slide valves, discs and wedges

Valves with flat seats 25 - 100mm (1” - 4”)

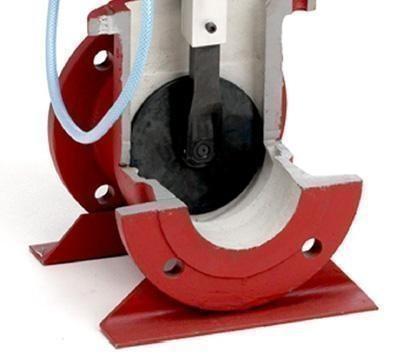

grinding gate check valves and gate valve wedges

Model D - For globe, control and safety valves with flat or angled seats

Valves with flat and angle seats ø 50 - 800mm (2” - 32”)

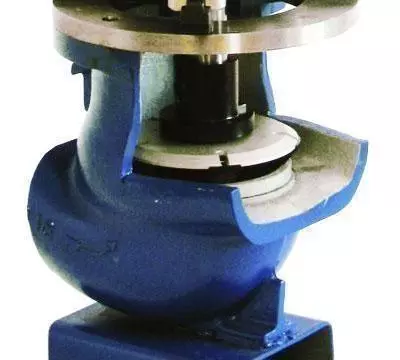

grinding globe flat or angled seats
kemet ISO 9001

BSI number Q05919

Over 85 years of service to industry
