Ultrasonic Cleaning Measurement - Ultrasonic Process Controller

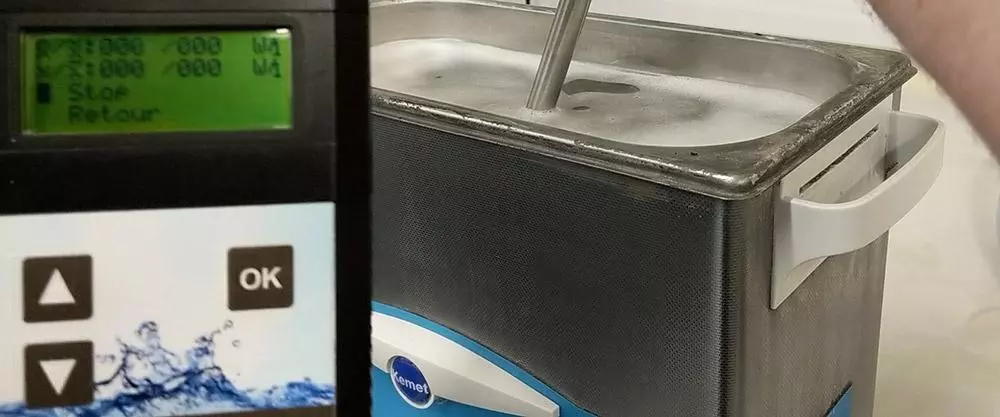

The UPC 3000 is a unit equipped with a microprocessor and 3 measuring sensors for the immediate and complete control of your ultrasonic cleaning baths.
- Bath concentration, temperature and conductivity are directly measured
- Follow-up of the ultrasonic intensity evolution in the baths
- Quality control of the demineralized water in the rinsing baths
- Configuration of each unit according to specific NGL processes
- Easy menu with three keys
- Measures cleaning concentration prepared with hard or demineralized water
- Temperature Measuring range: 0 ⇒ 99.9°C Accuracy: ± 0.2°C
Measuring of concentration and demineralized water quality
| Sensors | demineralized water | Concentration |
|---|---|---|
| Cell constant | 0,1 cm−1 | 0,475 cm−1 |
| Measuring range | 0,01 μS/cm 20 μS/cm | 0,02 mS/cm 200 mS/cm |
Display: in % of the concentration Precision: 0.1 % of the value measured (± 1 digit)
Dimensions
Unit: 195 x 100 x 40 mm
US sensor: 250 mm ou 500 mm (optional)
Power supply
Over 4 accumulators and/or by direct power supply. When using direct power supply, the accumulators are automatically recharged.
