Top loading single stage spray washing machines

Cleaning parts prior to maintenance or between production phases is often necessary. This is important not only for technical reasons but also for operator comfort. In this regard, the Spintec wash machine provides the ideal solution for quick and efficient part cleaning. It operates within a closed chamber, contributing to a better working environment. The machine offers various features that enhance its usability. It cleans parts fast and efficiently, ensuring effective cleaning outcomes. Additionally, it is equipped with a digital operating timer and temperature control, making it easy to control and adjust according to specific requirements.

To prevent any issues related to dry running, the Spintec wash machine includes a level controller that protects its functions. This feature helps maintain the machine's longevity and reliability. Moreover, the machine is constructed using durable materials such as stainless steel for the chamber, spray pipes, nozzles, pump, and valves. This ensures its robustness and long-term performance. The Spintec wash machine also prioritises safety and ergonomics in the working environment. It incorporates a lid with gas springs, a safety switch, and exhaust connections to ensure a safe operating experience. Additionally, it provides an air gun for drying the parts and adjustable feet for easy installation. These features come as standard in all machines, further enhancing the usability and convenience of the Spintec wash machine.

Options

  • Removable basket gives more possibilities for material handling in production.
  • Loading trolley for ergonomically moving heavier loads.
  • 7-day timer heats the liquid up according to the operation schedules.
  • Closed loop filtration cleans the wash liquid particle free and prolongs wash liquid lifespan time.
  • Oil separator removes free oil from wash liquid and reduces waste liquid volumes.
  • Automatic refill and detergent dosing ensure consistent cleaning result for longer production series.
  • Heat insulation saves energy in cooler environments.

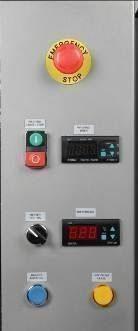

Control system

  • Digital treatment timer (00:00 – 99:59 mm:ss)
  • Digital temperature controller
  • Treatment start/stop buttons
  • Heating on/off switch
  • Basket rotation switch (with optional removable basket)
  • Low level alarm
  • Dry run protection
  • Inter lock for the lid
  • Emergency stop
  • Main switch

spray washers

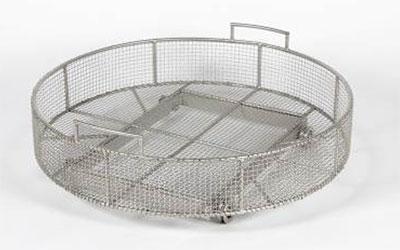

Name Wash basket Spintec 82 Wash basket Spintec 105 Wash basket Spintec 125
Basket diameter (mm) 820 1050 1250
Max load (kg) 150 200 300
Material AISI 304 AISI 304 AISI 304

Rolls for moving the basket between trolley and spray cleaner.

spray washer basket

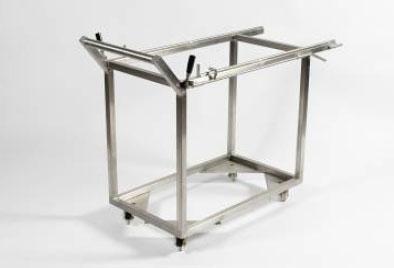

Name Loading trolley Spintec 82 Loading trolley Spintec 105 Loading trolley Spintec 125
Material AISI 304 AISI 304 AISI 304

Enables loading of washed parts outside of machine as well as moving basket to and from machine. Locks on to the spray cleaner with manually operated levers. Locking of basket during transport.

spray washer trolley

Model Spintec 60 Spintec 82 Spintec 105 Spintec 125
Function Single stage top loading spray cleaner. Spray in air with fixed nozzles, basket rotation.
External dimensions (mm) 1000 x 755 x 1150 (h) 1250 x 950 x 1250(h) 1500 x 1250 x 1350(h) 1800 x 1500 x 1600(h)
1550(h) lid open 1750(h) lid open 2000(h) lid open 2400(h) lid open
Basket diameter (mm) 600 820 1050 1250
Usable load height (mm) 300 (fixed basket) 400 (fixed basket) 500 (fixed basket) 640 (fixed basket)
360 (removable basket) 460 (removable basket) 600 (removable basket)
Max load (kg) 80 150 200 300
Tank capacity(l) 50 120 220 450
Heating power (kW) 4 4 7,5 15
Temperature range (°C) 20 - 80°C 20 - 80°C 20 - 80°C 20 - 80°C
Pump Centrifugal pump Ebara CDX, 3- phase, 60 l/min, 1,5 bar, Seal C-CE- NBR. Centrifugal pump Ebara CDX, 3- phase, 120 l/min, 2 bar, Seal C-CE- NBR. Centrifugal pump Ebara CDX, 3- phase, 140 l/min, 3 bar, Seal C-CE- NBR. Centrifugal pump Ebara CDX, 3- phase, 190 l/min, 3,2 bar, Seal C-CE- NBR.
Filling valve R ½” R ½” R ½” R ½”
Drain valve R 1” R 1” R 1” R 1”
Level sensor Conductive sensor
Voltage (VAC) 380/220 – 415/240 380/220 – 415/240 380/220 – 415/240 380/220 – 415/240
Frequency (Hz) 50 50 50 50
Connected load (kW) 6 6 10 18
Fuses 3x 32A 3x32A 3X32A 3X32A

Recommended Cleaning Fluids for Spintec Spray Washer

Type Package Size Product Code Alkaline or Acid PH approx Dilution % Suggested Temp °C Suggested Suggested Use Comments
Decoclean 440 25 Litre 362945 Alkaline 13 1 - 3% 50 - 80°C Heavy contamination on Ferrous metals only Do not use on Non-ferrous metals. Rinse well.
Decospray TM 25 Litre 363162 Alkaline 9.6 1 - 3% 60 - 70°C Removes oils and does not attack metals It temporarily protects the parts against oxidation
Decospray HT13 25 Litre 363163 Alkaline 14 2 - 3% 70 - 75°C Removes oils from Non-ferrous materials Very high degreasing power
