Valve Grinding Gate, Check Valves & Gate Valve Wedges

Model S for valves 1" - 6" (25-150mm)

All S machines are equipped with a silencer for your comfort. In every detail we have it as our goal to make your working environment as good as possible.

The Model S drive head is equipped for 3°angle grinding located on the opposite side of the flat grinding head. The S can be equipped with a range of grinding heads, permitting numerous combinations within the 25-150 mm range (1”-6”).

The model S valve grinder is easily set up for wedge grinding using the clamping system. The model S is supplied with a rugged, customized carrying/storage case complete with accessories. The case is fitted with specially designed compartments molded to the shape of each component, allowing operators to confirm at glance that all items are in place before and after grinding.

Kemet grinding paper is tested, proved and perfectly fitted to suit your machine under the conditions it will be working in. (from 40 grit to 3mic)

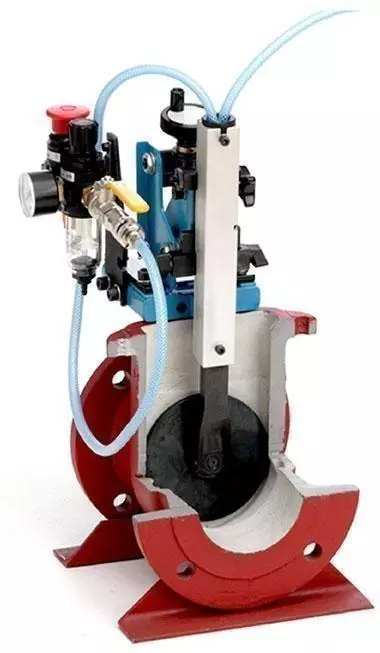

grinding gate valve wedges

Possible dimensions:

A= 25-150 mm (1"-6")
B= 19 mm (0.74") min
C= 40mm (1.6”) min
350 mm (13.8”) max
D= 35-120 mm (1.38"-4,72")
L= 320mm (12.6”) min
440 mm (17.3”) max
Carrying case Model S-C: 600 x 470 x 230 mm (23.6" x 18.5" x 9")
Total weight Model S-C: 15 kg (33.75 lb)

grinding range for gate valve wedges

Model S-C 100
25-100mm (1”-4”)
S-C 150
25-150mm (1”-6”)
Mounting plate tick tick
Adjustable mounting frame tick tick
Wedge plate tick tick
Drive shaft for gate valves tick tick
Pneumatic drive unit for gate valves (6-7 bar) option option
Regulator for pneumatic drive unit option option
Silencer for pneumatic drive unit option option
Electric drive unit 110 or 220V option option
S grinding plate Ø25mm (1") for flat and 3° seats tick tick
S grinding plate Ø32mm (1 ¼”)for flat and 3° seats tick tick
S grinding plate Ø40mm (1 ½”) for flat and 3° seats tick tick
S grinding plate Ø50mm (2”) for flat and 3° seats tick tick
S grinding plate Ø65mm (2 ½”) for flat and 3° seats tick tick
S grinding plate Ø80mm (3”) for flat and 3° seats tick tick
S grinding plate Ø100mm (4”) for flat and 3° seats tick tick
S grinding plate Ø125mm (5”) for flat and 3° seats   tick
S grinding plate Ø150mm (6”) for flat and 3° seats   tick
Rough, medium and fine grinding discs Ø17, 20, 25mm (0.67", 0.79", 1") tick tick

A selection of standard models, other configurations and accessories are available on request
