Tungsten Carbide Rotary Burrs
Material | Cut 2 | Cut 5 | Cut 6 |
---|---|---|---|
Brass, Copper, Cast Iron, Bronze | ![]() ![]() | ![]() ![]() | ![]() ![]() |
Unhardened Steel | ![]() ![]() | ![]() ![]() | ![]() ![]() |
Hardened Steels, Stainless Steels, Nimonic Alloys, Titanium | ![]() ![]() | ![]() | ![]() ![]() |
- Recommended
- Highly Recommended
Cut 2 - Standard cut for general applications.
Cut 5 - Foundry cut for maximum stock removal, rough edges and foundry applications.
Cut 6 - Double cut for general purpose use, improves control and reduces chips.
Power Cut Burr Set

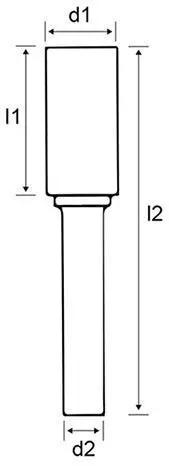

Profile / Shape | Size (mm) | Type | Code | ![]() | ||||
---|---|---|---|---|---|---|---|---|
d1 | l1 | d2 | l2 | |||||
![]() | Cylinder with endcut | 12.7 | 25 | 6 | 70 | Brazed (Cut 5) | * | |
![]() | Ball nosed cylinder | 12.7 | 25 | 6 | 70 | 321726 | ||
![]() | Ball nosed tree | 12.7 | 25 | 6 | 70 | 321727 | ||
![]() | Pointed tree | 12.7 | 25 | 6 | 70 | 321728 | ||
![]() | Ball nose cone | 12.7 | 32 | 6 | 77 | 321729 |
5pc (6mm Shank/Cut 5) Code: 321721
*Available in Power Cut Burr Set
Burr Set
Profile / Shape | Size (mm) | Angle | Type | Code | ![]() | ||||
---|---|---|---|---|---|---|---|---|---|
d1 | l1 | d2 | l2 | ||||||
![]() | Cylinder without endcut | 3 | 14 | 3 | 38 | Solid (Cut 6) | 321730 | ||
![]() | Ball nosed cylinder | 3 | 14 | 3 | 38 | 321731 | |||
![]() | Ball | 3 | 2.5 | 3 | 38 | 321732 | |||
![]() | Oval | 3 | 6 | 3 | 38 | 321733 | |||
![]() | Ball nosed tree | 3 | 14 | 3 | 38 | 321734 | |||
![]() | Pointed tree | 3 | 14 | 3 | 38 | 321735 | |||
![]() | Flame | 3 | 6 | 3 | 38 | 321736 | |||
![]() | Ball nosed cone | 3 | 14 | 3 | 38 | 8° | 321737 | ||
![]() | Cone | 3 | 11 | 3 | 38 | 14° | 321738 | ||
![]() | Inverted cone | 3 | 4 | 3 | 38 | 10° | 321739 |
10pc (3mm Shank/Cut 6) Code: 321722
Micro Burr Set
Profile / Shape | Size (mm) | Angle | Type | Code | ![]() | ||||
---|---|---|---|---|---|---|---|---|---|
d1 | l1 | d2 | l2 | ||||||
![]() | Cylinder without endcut | 1 | 4 | 3 | 38 | 321740 | |||
1.5 | 4 | 3 | 38 | 321741 | |||||
![]() | Ball nosed cylinder | 1 | 4 | 3 | 38 | 321742 | |||
1.5 | 4 | 3 | 38 | 321743 | |||||
![]() | Ball | 1 | 0.9 | 3 | 38 | Solid (Cut 2) | 321744 | ||
1.5 | 1.4 | 3 | 38 | 321745 | |||||
![]() | Oval | 1.5 | 4 | 3 | 38 | 321746 | |||
![]() | Cone | 1.5 | 4 | 3 | 38 | 16° | 321749 |
10pc (3mm Shank/Cut 2 Micro) Code: 321723
