Diprofil Power Units

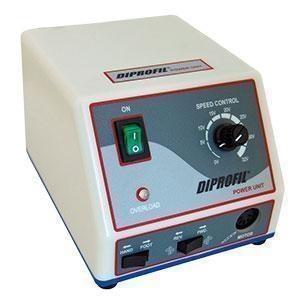

Diprofil Power Unit - DPU-3
This compact and ergonomic Power Unit is designed for use together with dedicated rotary hand-pieces and micro-motor driven reciprocating Diprofil polishing/filing machines with carbon brush motors. It has high torque and electrical feedback circuitry. Other features include continuously variable speed, forward / reverse switch and automatic overload protection. Supplied with foot control type DPU-3-FC for optional speed adjustment.
Technical data
- Input: AC 110/220 V at 50/60 Hz
- Output: DC 0 – 32 V, 1,2 A
- Power: max. 100 W
- Weight Power unit: 1,7 kg
- Dimensions Power unit: W115 x D147 x H96 mm
- Weight Foot control: 585 g

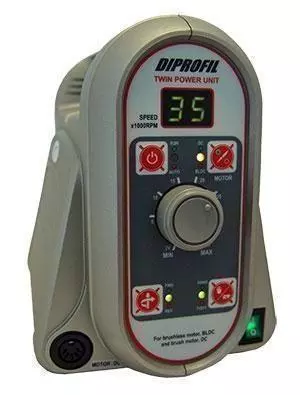

Diprofil Twin Power Unit - TPU-20
Twin power unit featuring dual control system for both brushless and carbon brush micro-motors (not simultaneously). Variable speed control by hand dial or the included foot control type TPU-20-FC. Supplied with hand-piece cradle and a convenient magnetic tool holder.
- Digital display showing the speed in rpm
- Maximum torque set mode
- Maximum speed set mode
- Built in handle for best portability
- Error code display function
- Foot control with auto-cruise speed function
- Self diagnosis system
Technical data
- Input: AC 200 ~ 240 V at 50/60 Hz
- Output: DC 0 – 32 V, 1,6 A, BLDC 0 – 32 V, 1,6 A
- Power DC: max. 185 W
- Power BLDC: max. 245 W
- Weight Power unit: 2,9 kg
- Dimensions Power unit: W137 x D232 x H180 mm
- Weight Foot control: 575 g
