Diprofil Micro Motors

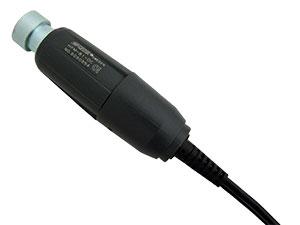

Micro-motor - HPM-B1

DC micro-motor adapted for Diprofil mini polishing/filing machines type FMR/D, FMV/D and rotary hand-piece type C-HPM-B1. For use together with power unit DPU-3 or twin power unit TPU-20.

Technical data

  • Speed: max. 38.000 rpm
  • Consumed power: 100 W
  • Torque: 4,0N cm
  • Weight: 190 g
  • Dimensions: L100 x Ø29,5 mm
  • Noise: < 70 db(A) at 38.000 rpm
  • Vibrations: < 2,5 m/s²
Micro-motor

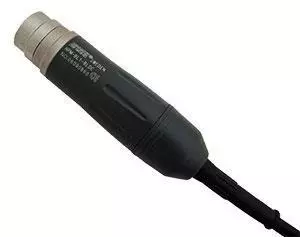

Brushless Micro-motors - HPM-BL1 + HPM-BL2

Brushless micro-motor for use together with twin power unit TPU-20.

Technical data HPM-BL1

  • Speed: max. 40.000 rpm
  • Consumed power: max. 230 W
  • Torque: 8,5N cm
  • Weight: 255 g
  • Dimensions: L100 x Ø27 mm
  • Noise: < 70 db(A) at 40.000 rpm
  • Vibrations: < 2,5 m/s²

Technical data HPM-BL2

  • Speed: max. 50.000 rpm
  • Consumed power: max. 230 W
  • Torque: 7,6N cm
  • Weight: 255 g
  • Dimensions: L100 x Ø27 mm
  • Noise: < 70 db(A) at 50.000 rpm
  • Vibrations: < 2,5 m/s²
Brushless Micro-motors

Adapter for connecting Urawa, Argofile and Gesswein front-pieces to the Diprofil micro-motors type HPM-BL1 and HPM-B1 (when using DC motor type HPM-B1 a specific shaft with item no. D/G-7 is also required).

micro motor Adapter for connecting Urawa, Argofile and Gesswein
