Diprofil Files and Accessories

Diprofil Machine Files

We offer a wide variety of different machine files to be used in the Diprofil polishing-/filing machines. Many types are available both as single files and as assorted sets of 6 - 10 different files.

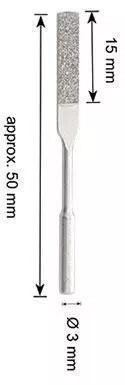

Standard Machine Files - DLA®

Profile Size (mm) Grit D64 Grit D151 Grit D181

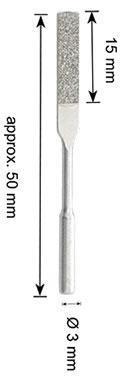

precision diamond Standard machine files dla Standard machine files size pillar 2x1 333723 333724 333725
3x1 333728 333634 333727
4x1 333731 333729 333730
4x2 333732 333733 333734
5x2 333256 333419 333255
Standard machine files size round Ø 1 333021 333738 333739
Ø 2 333881 333164 333882
Ø 3 333740 333022 333741
Ø 4 333999 333023 333541
Standard machine files size triangle 2x2x2 - 333749 -
3x3x3 - 333654 -
4x4x4 - 332027 -
R = 1 - 333990 -
R = 1.5 - 333743 -
Standard machine file size half round upsidedown R = 2 - 333744 -
Standard machine file size crossing R = 2.5x5 333260 333025 333259

Safe Sided Machine Files - DLA®

Profile Size (mm) Grit D64 Grit D151 Grit D181
precision diamond safe sided machine files dla safe sided machine file size pillar 2x1 333745 333016 333746
3x1 333747 333017 333748
4x1 333999 333018 333544
5x2 333750 333019 333751
safe sided machine file size pillar 0.5x4 - 333752 -
1x4 - 333753 -
safe sided machine file size triangle 2x2x2 333755 333756 333757
3x3x3 333758 333759 333760
4x4x4 333761 333198 333762
safe sided machine file size half round upsidedown R = 1 - 333763 -
R = 1.5 - 333764 -
R = 2 - 333765 -

Standard Machine Files - DLE

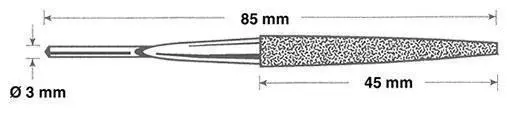

precision diamond standard machine files dle

Profile Size (mm) Grit D151
standard dle machine file size pillar 5x2 333644
standard dle machine file size round Ø 3 333029
standard dle machine file size half round upsidedown 5x2 333766
standard dle machine file size oval 5x2 333030
standard dle machine file size triangle 3.5x3.Sx3.5 333028
standard dle machine file size square 2.5x2.5 333027
standard dle machine file size pillar 5x2 333543
standard dle machine file size half round upsidedown 5x2 333767

Standard Machine Files - DLF

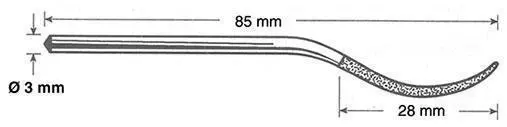

precision diamond machine files dlf

Shape Size (mm) Grit D151
diamond dlf machine file size pillar 4.5x2.5 333031
diamond dlf machine file size round Ø 3 333032
diamond dlf machine file size oval 5x2.5 333033
diamond dlf machine file size square 3x3 333768

Standard Machine Files - DLK

precision diamond machine files dlk

Shape Size (mm) Grit D151
diamond dlk machine file size pillar 10x2.5 333769

Conical Machine Files - DLM

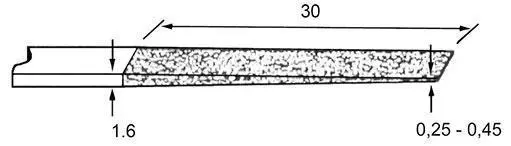

Conical Machine tapered needle files

Shape Size (mm) Grit D30 Grit D46 Grit D76 Grit D107
Conical Machine tapered needle file size pillar 2.5x1.6 333770 333366 333771 333365
4X1.6 333772 333368 333773 333367
6X1.6 333774 333370 333775 333369
8X1.6 333776 333777 333778 333779

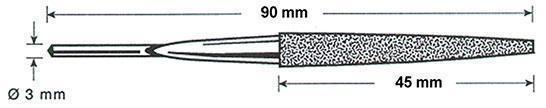

Machine Files - DBE

machine files dbe

Shape Size (mm) Grit D46 Grit D76 Grit D107
dbe machine file size pillar 4 x 2 DBE-1-D46 DBE-1-D76 DBE-1-D107
dbe machine file size round Ø3 DBE-2-D46 DBE-2-D76 DBE-2-D107
dbe machine file size half round 5x2 DBE-3-D46 DBE-3-D76 DBE-3-D107
dbe machine file size oval 5x2 DBE-4-D46 DBE-4-D76 DBE-4-D107
dbe machine file size triangle 3.5x3.5x3.5 DBE-5-D46 DBE-5-D76 DBE-5-D107
dbe machine file size square 2.5x2.5 DBE-6-D46 DBE-6-D76 DBE-6-D107

Machine Files - DLB

machine files dlb Shape Size (mm) Grit D107
dlb machine file size pillar 3.2x1.4 DLB-1-D107
dlb machine file size round Ø3 DLB-2-D107
dlb machine file size round Ø3 DLB-3-D107
dlb machine file size triangle 2.5x2.5x2.5 DLB-4-D107
dlb machine file size pillar 3.2x1.4 DLB-5-D107
dlb machine file size oval 4x2 DLB-6-D107
Diprofil Machine Files

Diprofil Hand Files

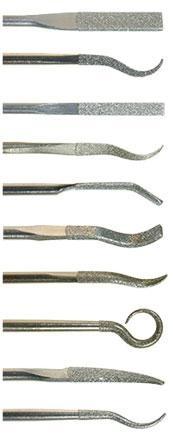

We offer a wide variety of different hand files for different kinds of applications such as deburring and EDM-scale removal. Most types are available both as single files and as assorted sets of 6 - 10 different files.

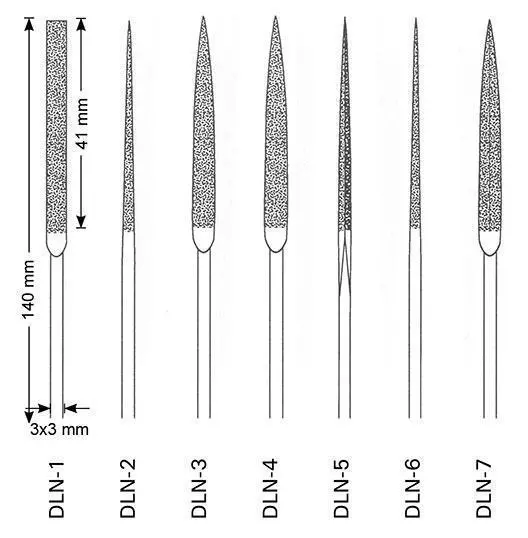

Hand Files - DLN

Hand Files - DLN

Shape Size (mm) Grit D64 Grit D151
dln hand file size pillar 4x1.3 DLN-1-D64 DLN-1-D151
dln hand file size round Ø 1.6 DLN-2-D64 DLN-2-D151
dln hand file size half round upsidedown 4x1.8 DLN-3-D64 DLN-3-D151
dln hand file size oval 4x1.6 DLN-4-D64 DLN-4-D151
dln hand file size triangle 3x3x3 DLN-5-D64 DLN-5-D151
dln hand file size square 1.9x1.9 DLN-6-D64 DLN-6-D151
dln hand file size barrett 4.1x1.5 DLN-7-D64 DLN-7-D151

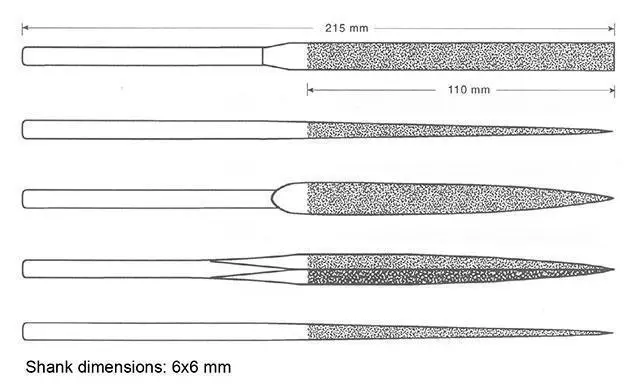

Hand Files - DLG

hand files dlg

Shape Size (mm) Grit D151
dlg hand file size pillar 10x3 DLG-1-D151
dlg hand file size round Ø 6.5 DLG-2-D151
dlg hand file size half round upsidedown 12.2x4 DLG-3-D151
dlg hand file size triangle 9.5x9.5x9.5 DLG-4-D151
dlg hand file size square 5.5x5.5 DLG-5-D151

Hand Files - DLH

Shape Size (mm) Grit D151
dlh hand file size pillar 5.3x1.4 DLH-11-D151
dlh hand file size round Ø 3 DLH-2-D151
dlh hand file size oval 5.1x2.2 DLH-4-D151
dlh hand file size triangle 3.8x3.8x3.8 DLH-5-D151
dlh hand file size square 2.6x2.6 DLH-6-D151
dlh hand file size pillar 5.2x1.6 DLH-8-D151
dlh hand file size knife all sides 5.0x1.6 DLH-9-D151
dlh hand file size half round upsidedown 5.6x1.9 DLH-30-D151

Safe Sided Hand Files - DLH

Shape Size (mm) Grit D151
dlh safe sided hand file size pillar 4.8x1.1 DLH-1-D151
dlh safe sided hand file size half round upsidedown 5.5x1.7 DLH-3-D151
dlh safe sided hand file size barrette 4.9x2.1 DLH-7-D151

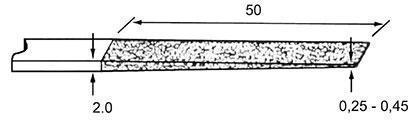

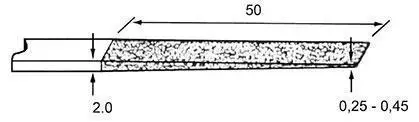

Conical Hand Files - DLS

Conical Hand Files - DLS
Shape Size (mm) Grit D30 Grit D46 Grit D76 Grit D107
dls Conical Hand file size pillar 4 / 2 DLS-1-D30 DLS-1-D46 DLS-1-D76 DLS-1-D107
dls Conical Hand file size pillar 4 / 3 DLS-2-D30 DLS-2-D46 DLS-2-D76 DLS-2-D107
dls Conical Hand file size pillar 6 / 6 DLS-3-D30 DLS-3-D46 DLS-3-D76 DLS-3-D107
dls Conical Hand file size pillar 8 / 8 DLS-4-D30 DLS-4-D46 DLS-4-D76 DLS-4-D107

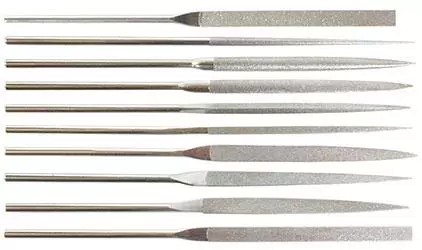

Hand Files - DBH

Hand Files - DBH

Total file length approx 140 mm, Shank diameter 3 mm.

Shape Size (mm) Grit D46 Grit D76 Grit D126
dbh hand file size pillar 6x1.5 DBH-1-D46 DBH-1-D76 DBH-1-D126
dbh hand file size round Ø3 DBH-2-D46 DBH-2-D76 DBH-2-D126
dbh hand file size half round 5x2 DBH-3-D46 DBH-3-D76 DBH-3-D126
dbh hand file size oval 5x2 DBH-4-D46 DBH-4-D76 DBH-4-D126
dbh hand file size triangle 3.5x3.5x3.5 DBH-5-D46 DBH-5-D76 DBH-5-D126
dbh hand file size square 2.5x2.5 DBH-6-D46 DBH-6-D76 DBH-6-D126
dbh hand file size barrette 6x2 DBH-7-D46 DBH-7-D76 DBH-7-D126
dbh hand file size pillar 5.4x1.5 DBH-8-D46 DBH-8-D76 DBH-8-D126
dbh hand file size knife 1.7x6 DBH-9-D46 DBH-9-D76 DBH-9-D126
dbh hand file size crochet 6x1.5 DBH-10-D46 DBH-10-D76 DBH-10-D126

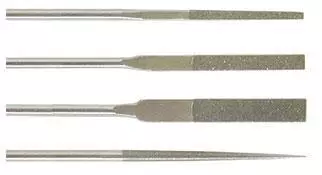

Conical Hand Files - DLL

Conical Hand Files - DLL

Shape Size (mm) Grit D30 Grit D46 Grit D76 Grit D107
DLL Conical Hand file size pillar 1.7x2 DLL-1-D30 DLL-1-D46 DLL-1-D76 DLL-1-D107
DLL Conical Hand file size pillar 1.7x4 DLL-2-D30 DLL-2-D46 DLL-2-D76 DLL-2-D107
DLL Conical Hand file size pillar 1.7x6 DLL-3-D30 DLL-3-D46 DLL-3-D76 DLL-3-D107
DLL Conical Hand file size round Ø3 DLL-4-D30

Hand Files DLD

  Shape Size (mm) Grit D107
Hand Files DLD dld hand file size pillar 6.0x1.2 333792
dld hand file size square 2.5x2.5 333793
dld hand file size pillar 3x1.5 333794
dld hand file size triangle 3x3x3 334074
dld hand file size half round 5x2 333795
dld hand file size pillar 3.2x1.5 333796
dld hand file size oval 4x2.2 333797
dld hand file size round Ø 2.5 333798
dld hand file size knife all sides 5x1.5 333799
dld hand file size round Ø 2.5 333034

Hand Files - DLQ

Shape Size (mm) Grit D46 Grit D126
dlq hand file size pillar 8.5x1.6 DLQ-1-D46 DLQ-1-D126
dlq hand file size round Ø4 DLQ-2-D46 DLQ-2-D126
dlq hand file size half round 7x2.5 DLQ-3-D46 DLQ-3-D126
dlq hand file size square 3.5x3.5 DLQ-4-D46 DLQ-4-D126
dlq hand file size triangle 4.5 x4.5x4.5 DLQ-5-D46 DLQ-5-D126

Hand Files - DLX

Shape Size (mm) Grit D151
dlx hand file size pillar 11 x 3.5 DLX-1-D151
dlx hand file size round Ø5 DLX-2-D151
dlx hand file size half round 10.5x4.4 DLX-3-D151
dlx hand file size triangle 7.7x7.7x7.7 DLX-4-D151
dlx hand file size square 6.3x6.3 DLX-5-D151
Diprofil hand files

Diprofil Grinding Pins & Points

Diamond and CBN grinding pins and points are excellent for different kinds of grinding and deburring applications. Our assortment consists of a wide variety of tools in different shapes, dimensions and grit sizes. Tools are available with Ø 2,35; Ø 3,0 or Ø 6,0 mm shanks. We also offer customer specific tools according to special requirements.

Shape Dimensions Grit Code
diamond grinding point cone Cone D 3.1, a 30°, T 5.0, L 46 D151 333404
D 3.1, a 30°, T 5.0, L 46 D64 333807
D 8.0, a 90°, T 3.9, L 43.2 D151 333226
D 8.0, a 60°, T 6.6, L 45.9 D151 333808
diamond grinding point cone flat end Cone flat end D 1.6, d 0.9, a 4°, T 10, L 46 D151 333652
D 2.1, d 1.4, a 4°, T 10, L 46 D151 334025
D 2.1, d 1.4, a 4°, T 10, L 46 D64 333810
D 2.6, d 1.75, a 4°, T 3, L 46 D151 333650
D 7.0, d 2.0, a 30°, T 10, L 49 D151 333076
D 8.0, d 1.4, a 45°, T 8.5, L 47.5 D151 333412
diamond grinding point cone inverted Cone
inverted
D 2.4, d 1.5, a 20°, T 3, L 46 D151 333811
D 2.4, d 1.5, a 20°, T 3, L 46 D64 333812
D 6.5, d 3.5, a 15°, T 10, L 49 D151 333411
D 8.0, d 3.0, a 90°, T 2.15, L 42 D151 333410

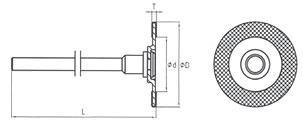

diamond grinding wheel Wheel D 7.3, T 0.8, L 40 D151 333247
diamond grinding wheel Wheel D 9.0, d 7, T 0.6, L 40 D151 332133
diamond grinding wheel Wheel D 20, d 12.75, T 1.0, L 48 D151 333656
diamond grinding wheel Grinding wheel D 17.2, d 14.6, T 2.4, L 48 D151 334063
diamond grinding wheel Grinding wheel D 5.8, T 2.3, R 1, L 41 D151 334015
D 9.8, T 3.4, R 1.5, L 42.2 D151 333817
diamond cutting wheel Cutting wheel D 15.0, d 13.0, T 0.6, L 48 D151 333265
D 18.0, d 16.0, T 0.6, L 48 D151 333818
D 22.0, d 20.0, T 0.6, L 48 D151 333657
D 36.0, d 34.0, T 1.0, L 48 D151 333819
Diprofil grinding pins

Diprofil Cutting / Grinding wheels

Diamond cutting-/grinding wheels are excellent for cutting or grinding applications as well as for making slots in different kinds of materials such as semi-conductors. Most of the tools are also available with a Ø 2,35 or Ø 3,0 mm shank attached. We also offer customer specific tools according to special requirements.

Dimensions (Ø x Width x Bore Ø) Grit Size Code
20 x 0.4 x 2.5 D107 333430
20 x 0.6 x 2.5 D151 333542
20 x 0.8 x 2.5 D151 333431
20 x 1.0 x 2.5 D151 333985
22 x 0.6 x 2.5 D151 333800
25 x 0.8 x 2.5 D151 333801
30 x 0.8 x 6 D151 333802
36 x 1.0 x 2.5 D151 333803

Hardened stainless mandrel shanks

Type Code
Shank Ø 2.35 mm, Flange Ø 5 mm, Screw M2.5 333804
Shank Ø 3.0 mm, Flange Ø 6 mm, Screw M2.5 333805
Diprofil grinding wheels

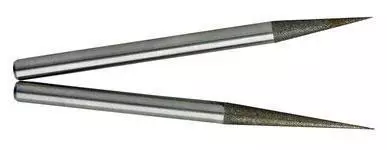

Diprofil Diamond taper pins

Precision diamond taper pins are ideal for grinding and polishing of carbide drawing dies for the wire and tube industries. All tools have a Ø 6,0 mm shank.

Angle = α Diameter = Ø Grit Size Code
6 mm D 76 DTP-86-D76
6 mm D 91 DTP-86-D91
10 mm D 76 DTP-810-D76
10 mm D 91 DTP-810-D91
12° 6 mm D 76 DTP-126-D76
12° 6 mm D 91 DTP-126-D91
12° 10 mm D 76 DTP-1210-D76
12° 10 mm D 91 DTP-1210-D91

All types are also available as blanks for polishing and final finishing with Diamond Compound.

Angle = α Diameter = Ø Grit Size Code
6 mm n/a DTP-86
10 mm n/a DTP-810
12° 6 mm n/a DTP-126
12° 10 mm n/a DTP-1210
Diprofil taper pins

Precision Steel Files

Diprofil precision steel files for use in soft and semi-hard steel as well as other materials of low to medium hardness.

precision steel files
Profile & Shape Size (mm) Cut 00 Cut 1
precision steel file profile 1 precision steel file size pillar 5 x 1.5 334046 334037
precision steel file size round Ø 3 333820 333691
precision steel file size half round upsidedown 5 x 2 334045 334038
precision steel file size oval 5 x 2 334011 334057
precision steel file size triangle 3.5 334058 333677
precision steel file size square 2.5 334059 333676
precision steel file profile 2 precision steel file size pillar 3.3 x 1 334079 333821
precision steel file size round Ø 2 333822 333823
precision steel file size half round upsidedown 3.2 x 1.1 334091 333824
precision steel file size oval 3 x 1.3 333678 333825
precision steel file size triangle 2.2 333826 333827
precision steel file size square 1.7 333828 333829

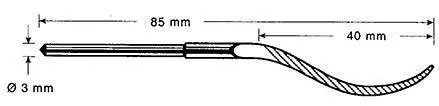

precision steel file profile 3 precision steel file size pillar 4 x 2 333830 334028
precision steel file size round Ø 3 334012 333832
precision steel file size oval 4.7 x 2.5 334013 333834
precision steel file size square 3 333835 333047
precision steel file profile 4 precision steel file size pillar 10 x 2.5 333360 333679
