Aluminium Oxide Abrasive Discs
AbraDiscs
- Self adhesive abrasive discs without the need for release paper
- Aluminium Oxide abrasive resin bonded onto durable superior cloth backing
- Rubber mounted holders for safe working
- Quick change discs with good stickability
- Diameters - 25mm, 50mm, 75mm
- Grit Sizes - 60, 120, 180
- Plain or rubber faced foam holders available
| Grit | Size 1" (25mm) Max Speed 7500 rpm |
Size 2" (50mm) Max Speed 4000 rpm |
Size 3" (75mm) Max Speed 2500 rpm |
|---|---|---|---|
| Code | Code | Code | |
| 60 (Red box) | 410001 | 410004 | 410007 |
| 120 (Yellow box) | 410002 | 410005 | 410008 |
| 180 (Blue Box) | 410003 | 410006 | 410009 |
AbraDisc Holders
| Rubber Holders | Foam Face Holders | ||||
|---|---|---|---|---|---|
| Size | Shaft | Code | Size | Shaft | Code |
| 1"(25mm) | 1/8" | 410201 | 1" (25mm) | 1/8" | 410210 |
| 2" (50mm) | ¼" | 410202 | 2"(50mm) | ¼" | 410211 |
| 3"(75mm) | ¼" | 410203 | 3"(75mm) | ¼" | 410212 |
Abrasive Caps - AbraCaps
The AbraCap abrasive caps and the flexible rubber holders are novel tools for fine grinding and polishing of all metals. Whenever rigid grinding is unsatisfactory, AbraCaps fulfil their purpose.
The abrasive caps are manufactured without a seam and covered with several layers of grit. It is recommended to slightly wet the surface of the rubber holder prior to pushing on the abrasive cap to ensure that the cap, which has a glue surface on the inside, firmly sticks to the rubber holder.
The flexible rubber holders have a longitudinal slit so that when pushing the cap on, air can escape and a used cap can be slit with a knife and removed from the rubber holder.
The 3 shapes of caps available are:

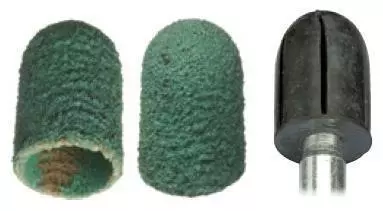

R-Suffix denotes round profile

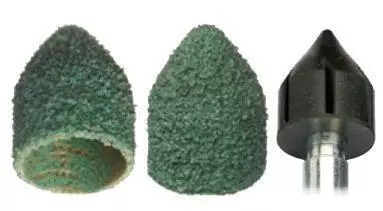

P-Suffix denotes Pointed profile

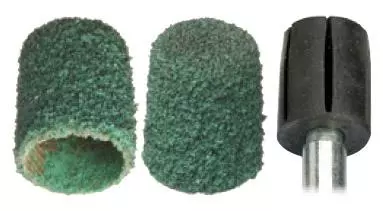

S-suffix denotes square profile
Available with 1/8" and/or 3mm diameter shaft
| Small AbraCap | Size (mm) | Max recommended speeds (rpm) | Rubber Holder | Grit 80 | Grit 150 | Grit 320 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref | Shaft Diameter Size | Ref | Code | Ref | Code | Ref | Code | ||||
| 1/8" | 3mm | ||||||||||
 |
5 x 10 | 57,000 | 5S | 430100 | 430132 | 5SC | 430001 | 5SM | 430040 | 5SF | 430002 |
| 7 x 12 | 42,000 | 7S | 430118 | 430135 | 7SC | 430039 | 7SM | 430043 | 7SF | 430044 | |
| 10 15 | 30,000 | 10S | 430103 | 430125 | 10SC | 430009 | 10SM | 430050 | 10SF | 430010 | |
| 13 x 17 | 23,000 | 13S | 430120 | TBA | 13SC | 430053 | 13SM | 430054 | 13SF | 430055 | |
| 16 x 19 | 18,000 | 16S | - | 430133 | 16SC | 430021 | 16SM | 430061 | 16SF | 430022 | |
 |
5 x 11 | 57,000 | 5R | 430101 | 430127 | 5RC | 430003 | 5RM | 430041 | 5RF | 430004 |
| 7 x 12 | 42,000 | 7R | 430117 | 430128 | 7RC | 430038 | 7RM | 430045 | 7RF | 430046 | |
| 10 x 15 | 30,000 | 10R | 430104 | 430123 | 10RC | 430011 | 10RM | 430051 | 10RF | 430012 | |
| 13 x 19 | 23,000 | 13R | - | 430138 | 13RC | 430056 | 13RM | 430057 | 13RF | 430058 | |
| 16 x 26 | 18,000 | 16R | 430107 | 430134 | 16RC | 430023 | 16RM | 430062 | 16RF | 430024 | |
 |
5 x 11 | 57,000 | 5P | 430102 | 430126 | 5PC | 430005 | 5PM | 430042 | 5PF | 430006 |
| 7 x 12 | 42,000 | 7P | 430119 | 430131 | 7PC | 430047 | 7PM | 430048 | 7PF | 430049 | |
| 10 x 15 | 30,000 | 10P | 430105 | 430129 | 10PC | 430013 | 10PM | 430052 | 10PF | 430014 | |
| 13 x 19 | 23,000 | 13P | 430122 | TBA | 13PC | 430059 | 13PM | 430060 | 13PF | 430037 | |
| 16 x 26 | 18,000 | 16P | 430108 | 430130 | 16PC | 430025 | 16PM | 430063 | 16PF | 430026 | |
