Upright Microscopes

Upright microscopes, also known as compound microscopes, are a common type of optical microscope used in various scientific, educational, and clinical settings. They are characterised by the placement of the objective lens above the specimen stage and are typically used for observing thin, transparent specimens mounted on glass slides. The advantages of upright microscopes include their versatility, adaptability for various observation techniques, customisation options, user-friendly design, and suitability for a broad range of applications in both research and education.

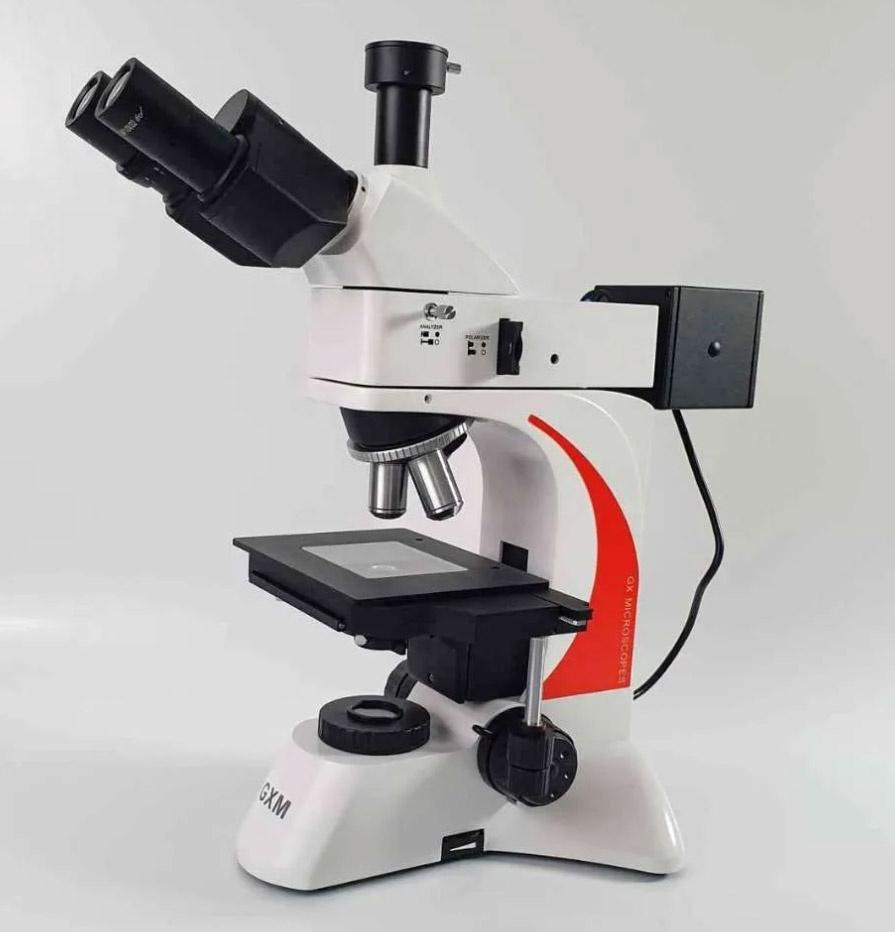

KL3230 Research Materials Upright Microscope, Reflected and Transmitted LED Illumination

This materials compound microscope combines high performance and versatility, making it ideal for professionals, industry, and research. It is well-suited for detailed inspections and research in metallurgy, materials, precision engineering, and electronics. This microscope delivers clear, precise, and high-contrast imaging with a wide field of view, offering both transmitted and reflected illumination for a variety of sample types.

Key features of this materials microscope include fully plan achromatic objective lenses with infinity optics, Köhler illumination for optimal contrast, a trinocular head for camera attachment, and a broad magnification range of 50x to 600x (expandable to 1000x). It features a mechanical stage with ergonomic XY controls, precise focusing with adjustable tension and a focus lock, extra-widefield eyepieces, and durable construction.

The microscope provides both reflected and transmitted brightfield illumination with Köhler adjustment for superior image quality. It includes a rotatable polariser to reduce glare from reflective surfaces and a set of colour filters. The use of extra-widefield FN22 eyepieces offers an extended field of view. Additional product information:

Eyepieces and Objectives: 10X widefield eyepieces and 4 plan achromatic, infinity corrected long working distance objectives.
Head: Trinocular head with 30-degree inclined eyepiece tubes and interpupillary distance adjustment.
Stand & Focus Mechanism: Sturdy stand with coaxial Coarse/Fine Focus Mechanism, adjustable tension, and limit stopper.
Stage and Condenser: Abbe Condenser on Rack and Pinion.
Illumination: Reflected and transmitted illumination with LED lamps, adjustable intensity, field and aperture diaphragms, polariser, and set of colour and diffusion filters.

Research Materials Upright Microscope, Reflected and Transmitted LED Illumination

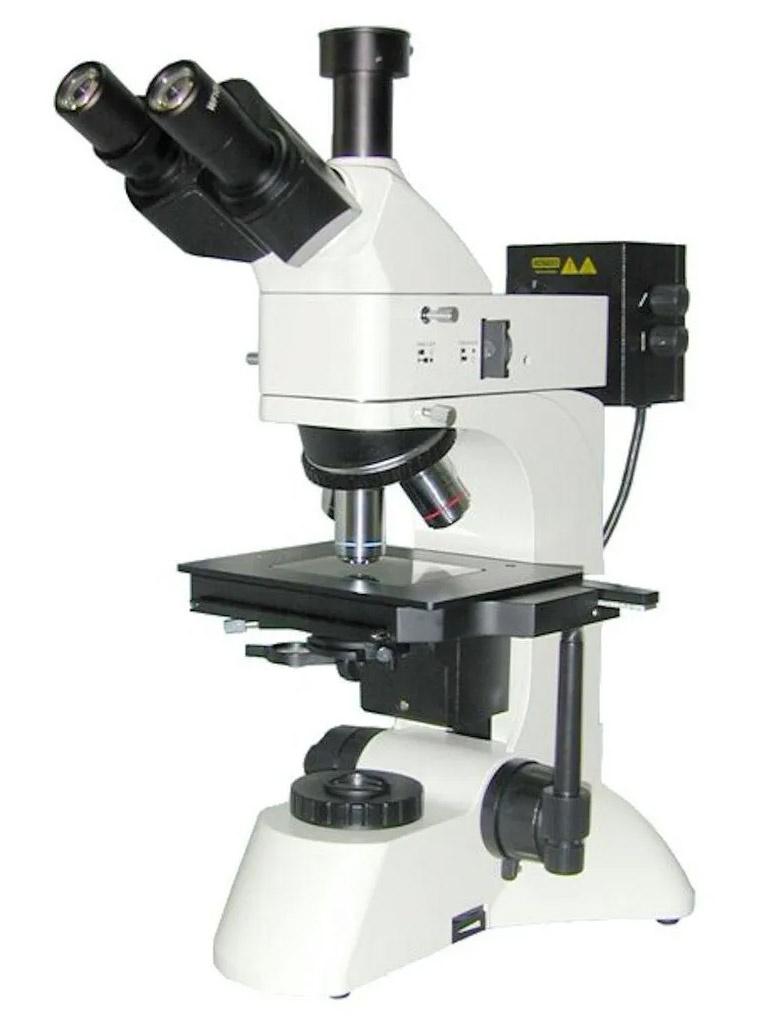

KML3230BD, Trinocular, Research, Materials Upright Microscope, Top and Bottom LED Lights

This robust and high-quality materials microscope features infinity optics, offering both darkfield and brightfield incident and transmitted light capabilities. It's equipped with a trinocular head ready for digital camera attachment and boasts a complete set of top-quality infinity BD plan achromatic materials objectives on a modern reversed objective turret. Specimens can be conveniently placed on the mechanical stage with ergonomically positioned XY stage and focus controls.

The microscope allows for adjustable focusing tension and features a focus lock for objective protection. It utilises integral reflected light LED illumination with adjustable intensity, along with darkfield and brightfield insert fields and aperture diaphragms. Additionally, it includes a polariser and a set of Y, G, B, and diffusion filters. Transmitted light is provided by an LED illuminator with adjustable intensity and a field diaphragm for Koehler illumination, projected through an adjustable aperture condenser on a rack and pinion, with blue and diffusion filters supplied. This microscope is built on the latest and highly acclaimed KL3200 series research microscope frame, ensuring high stability and durability, making it suitable for demanding applications.

Options include a range of camera adaptors, digital cameras, image analysis software, additional objectives, and eyepieces. Additional product information:

Eyepieces and Objectives: 10X Widefield Eyepieces, 4 Plan Achromatic; BD, Infinity corrected, Long Working Distance Objectives, including 5X, 10X, 20X, and 40X (spring)
Head: Trinocular head with 30-degree inclined eyepiece tubes and interpupillary distance adjustment
Stand & Focus Mechanism: Substantial stand with coaxial Coarse/Fine Focus Mechanism, adjustable tension, and limit stopper
Stage and Condenser: Abbe Condenser on Rack and Pinion
Illumination: Integral reflected light LED illuminator with adjustable intensity, field and aperture diaphragms, polariser, and a set of Y, G, B, and diffusion filters. Transmitted light from an LED lamp with adjustable intensity and field diaphragm for Koehler illumination, projected through an adjustable aperture condenser on a rack and pinion.

Trinocular, Research, Materials Upright Microscope, Top and Bottom LED Lights

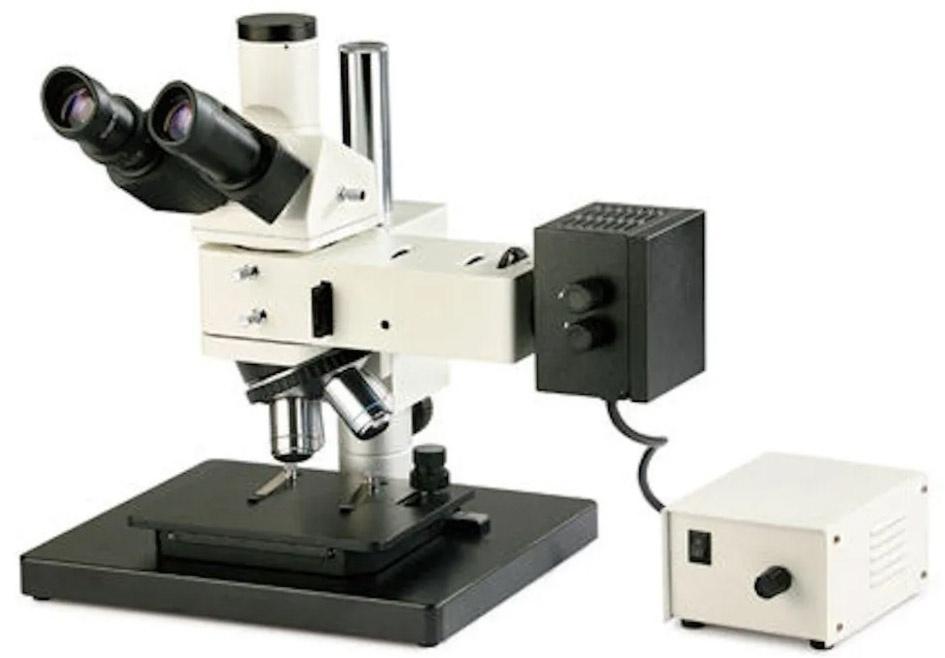

KMICM100BD, Trinocular, Research, Materials Upright Industrial Microscope

This industrial inspection microscope is exceptionally practical, suitable for examining reflective samples, and commonly employed in component inspection. The entire microscope is affixed to a pillar stand, facilitating the inspection of unusually large specimens. Additionally, the head can be optionally mounted on long-reach boom arm stands if needed. It comes equipped with a trinocular head, ready for digital camera attachment, and includes a comprehensive set of high-quality brightfield/darkfield plan achromatic infinity corrected material objectives.

Specimens can be positioned on the mechanical stage with controls for XY stage movement. The focusing tension is adjustable, and a focus lock safeguards the objectives from potential damage. Illumination is provided by a reflected light illuminator featuring a 5W LED lamp, which offers adjustable intensity, field and aperture diaphragms, a polariser, and a set of Y, G, B, and diffusion filters. A variety of options are available, including camera adaptors, digital cameras, image analysis software, additional objectives, and eyepieces. Additional product details:

Eyepieces and Objectives: Pair of 10X Widefield Eyepieces, 5 BD LWD Plan Achromatic Objectives
Head: Trinocular head with 30-degree inclined eyepiece tubes and interpupillary distance adjustment
Stand & Focus Mechanism: Sturdy stand with coaxial Coarse/Fine Focus Mechanism, adjustable tension, and limit stopper
Stage and Condenser: Abbe Condenser on Rack and Pinion
Illumination: Reflected light provided by a 5W LED lamp with adjustable intensity

Trinocular, Research, Materials Upright Industrial Microscope

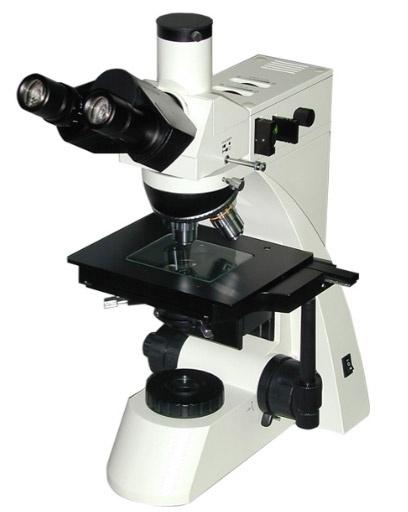

KL3030 Routine Upright Metallurgical Microscope

If you're seeking an affordable materials microscope built to withstand daily use for years, the L3030 is your answer. It's the 'workhorse' of our lineup, featuring a robust metal frame designed for longevity. The straightforward and user-friendly design keeps the price tag equally friendly. The KL3030 metallurgical microscope comes equipped with a trinocular head ready for camera attachment, enabling image and video capture and precise sample measurements. It includes a complete set of high-quality plan achromatic materials objectives, ensuring sharp, well-focused images across the entire field of view at magnifications ranging from 50x to 500x.

Reduced Glare from Reflective Surfaces

Metallurgical microscope samples often feature highly reflective surfaces, leading to glare issues, especially when using a camera. The L3030 addresses this concern with a built-in rotatable polarizer and diffuser filter to minimize glare.

Magnification range of 50x to 500x.
Dual incident (reflected) and transmitted (base) illumination, provided by built-in LED lamps with adjustable intensity.
A mechanical stage with user-friendly XY controls for precise sample positioning.
Coarse and fine focus controls with ergonomically placed knobs.
Adjustable focusing tension and a focus lock for objective protection.
Customizable field and aperture diaphragms to optimize image quality.
Equipped with a rotatable polarizer to minimize glare from reflective surfaces, complemented by yellow, green, blue, and diffusion filters.
Built on the sturdy and renowned KL3000 series microscope frame, offering high stability and durability for demanding applications.
Options include various camera adapters, digital cameras, image analysis software, additional objectives, and eyepieces.
Reflected and transmitted Köhler illumination for superior image quality and versatility.
The L3030 features adjustable field and iris diaphragms, ensuring precise setup for Köhler illumination, thus maximizing image quality with its fully plan achromatic optics. Its dual lamps provide both reflected and transmitted illumination, suitable for various sample types.
Eyepieces and Objectives: Pair of 10X widefield eyepieces and 4 Plan Achromatic objectives: 5X, 10X, 20X, & 50X
Head: Trinocular head with interpupillary distance adjustment. Light split: 100/0 between eyepieces and camera port.
Stand & Focus Mechanism: Large, stable stand with ergonomic coaxial coarse/fine focus featuring 2μm intervals.
Stage and Condenser: Large mechanical stage (210 x 140mm) with XY movement range of 75 x 50mm.
Illumination: Adjustable intensity reflected and transmitted LED light.

Routine Upright Metallurgical Microscope
