Refurbished and Ex-Demo Metallographic Machines

All machines are fully operational with some cosmetic defects which are outlined for each machine below.

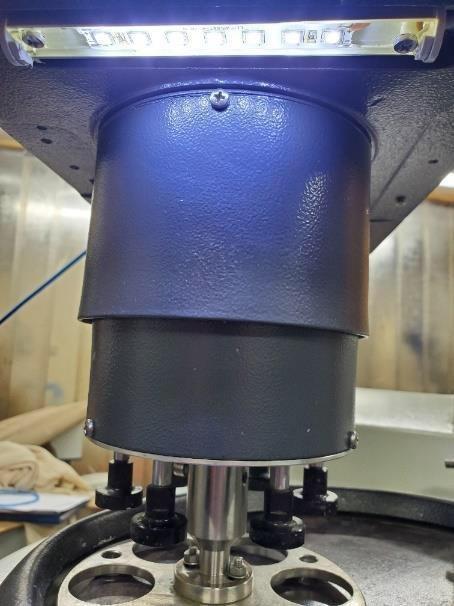

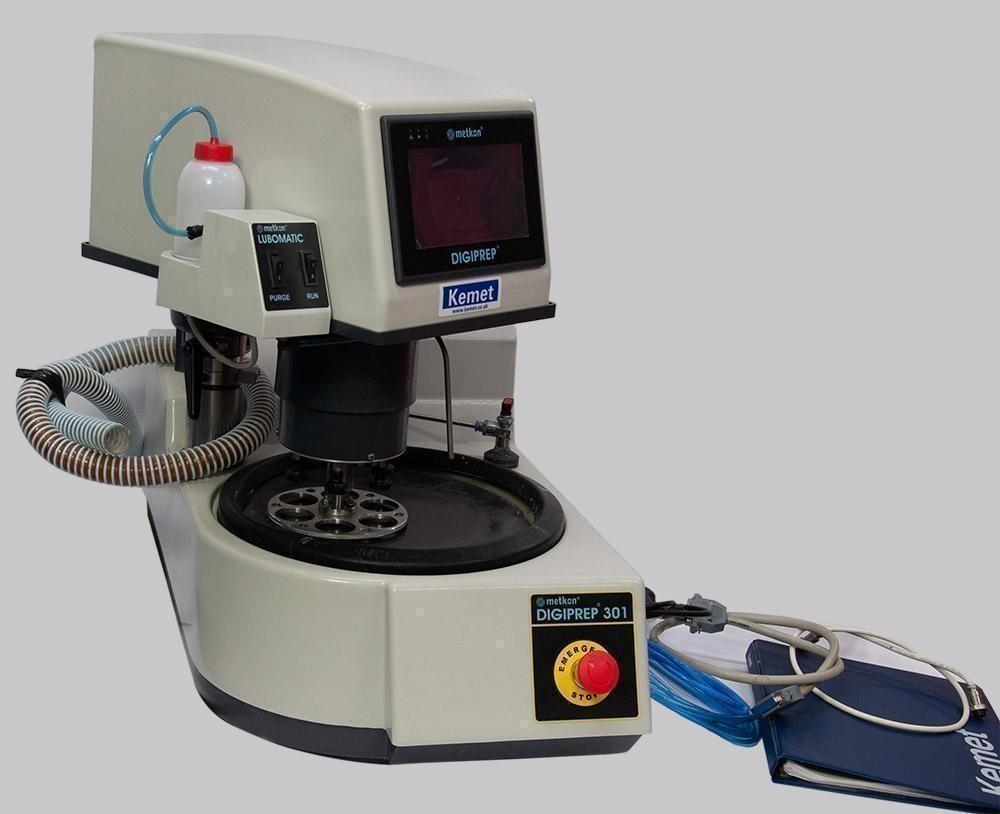

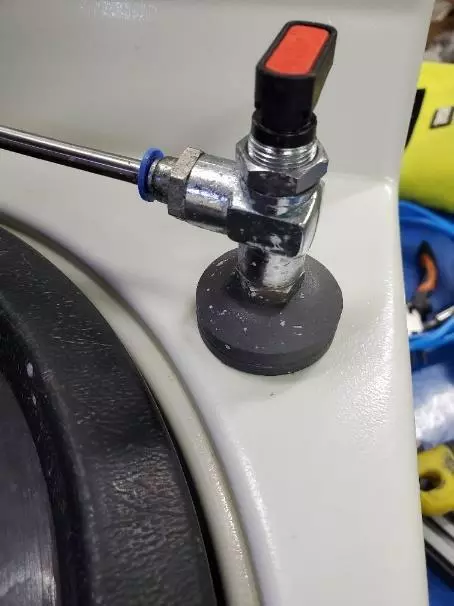

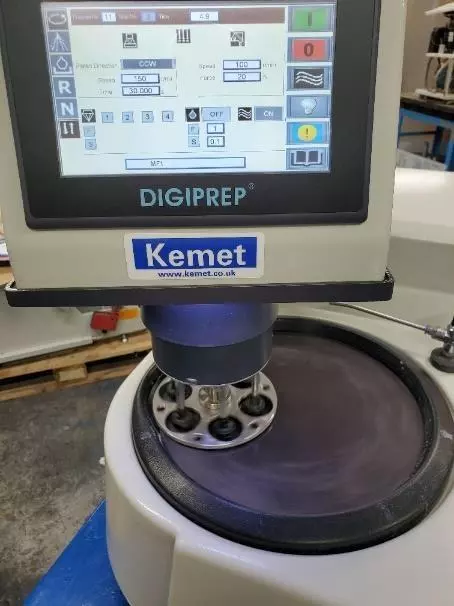

DIGIPREP 301 - S/N N20150261/N20150188

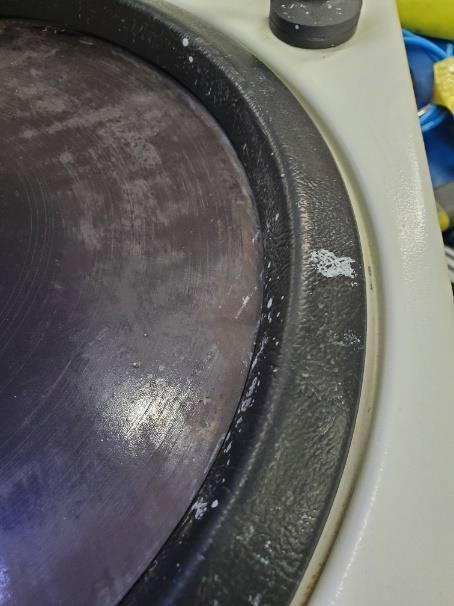

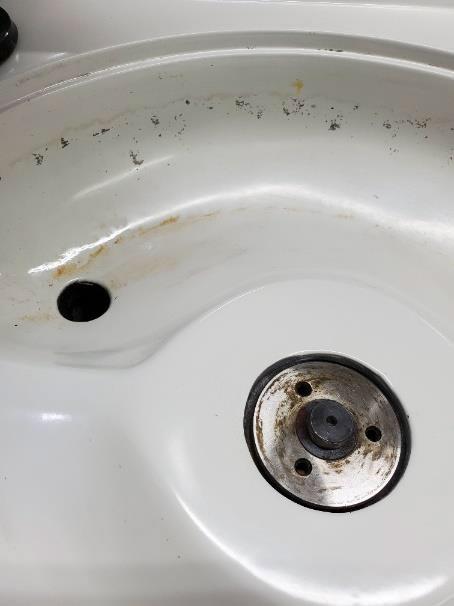

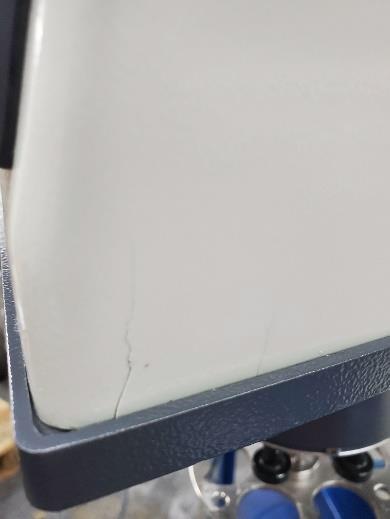

Has small crack on side body fascia. The machine has been used with colloidal media so has some staining on splash guard and surrounding area of the plate. Includes drive plate and aluminium plate with magnetic backer. Available for £...., please contact us for more info and to purchase.

DIGIPREP preparation systems are designed for fully automated materialographic sample preparation for consistent and reproducible specimen quality. DIGIPREP’s automatic head controls the force applied precisely (central and individual pressure), allowing specimens to be produced exactly the same way. With the ability to store and recall preparation programs on the LCD screen, consistent results are obtained. Supplied ready to use without specimen holders.

Specification of Base Unit

  • Single plate machine
  • Single powerful high-torque motor (1 HP)
  • Plate Ø 300mm
  • Variable speed: 50 - 600rpm (soft start and soft stop)
  • LED lighting illuminates platen, bowl, , specimen and working area
  • Retractable water hose for easier cleaning
  • Base Dimensions: 380mm x 690mm x 340mm
  • Electrical: 220V-single phase-50Hz

Specification of Automatic Head

  • New HMI touch screen allowing 25 different programmes to be saved
  • Grinding depth measurement by Z axis control
  • Individual or Central Pressure
  • 60W, DC Head motor
  • Variable Head Speed, 50-150rpm
  • Quick locking swing mounted design

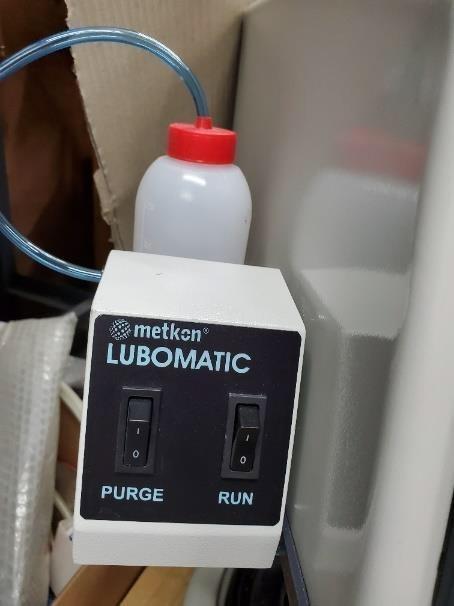

  • Lubomat integrated lubricant dispenser with gravity feed and flow adjustment valve
  • Air supply tubes, air filtering and lubricating unit
  • Sample Capacity: 1-6 samples (individual force) or up to 10 samples (central force)
  • Sample Force: 5 to 60 N per sample (individual force) or 20-360 N (central force)
  • Requires 6 bar compressed air

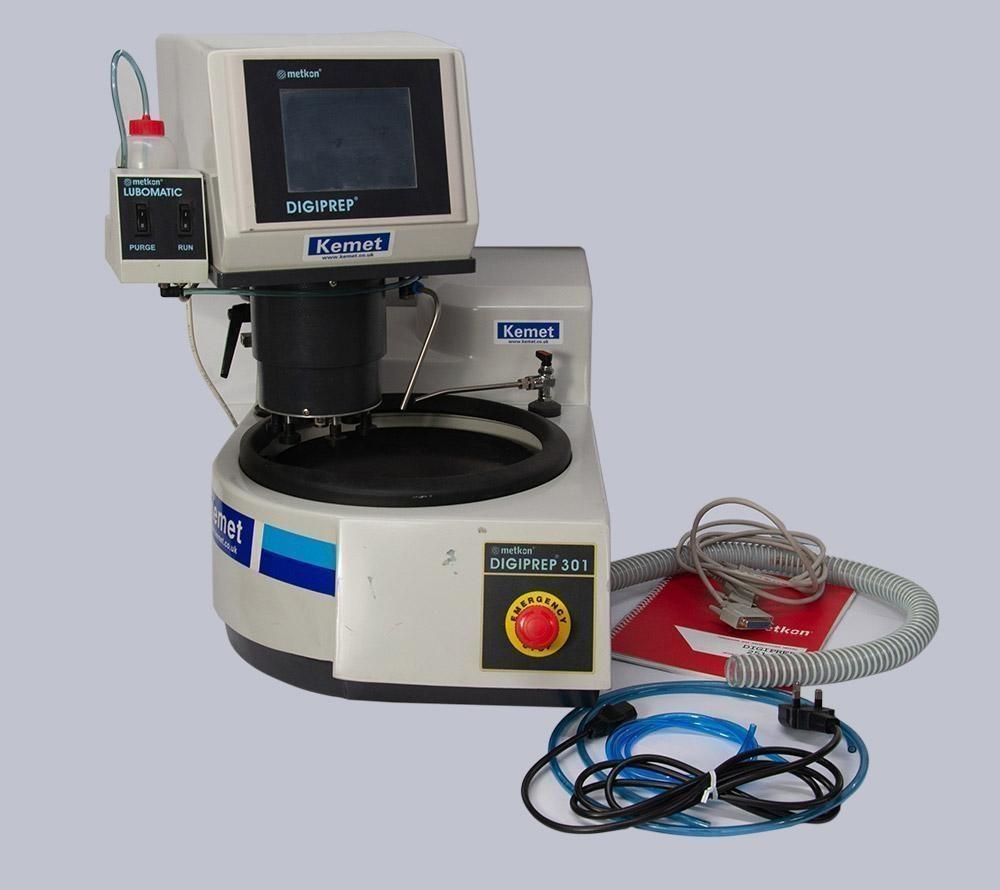

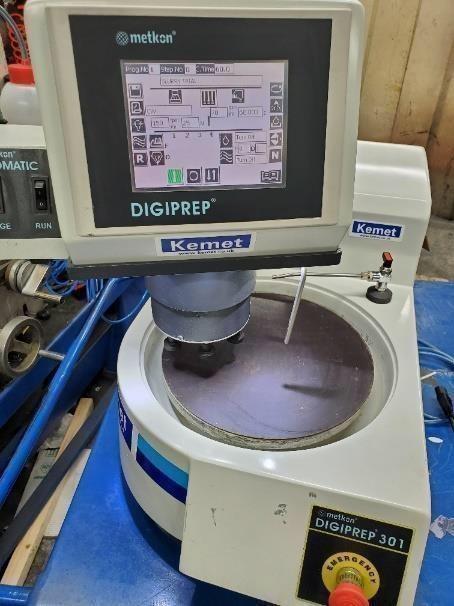

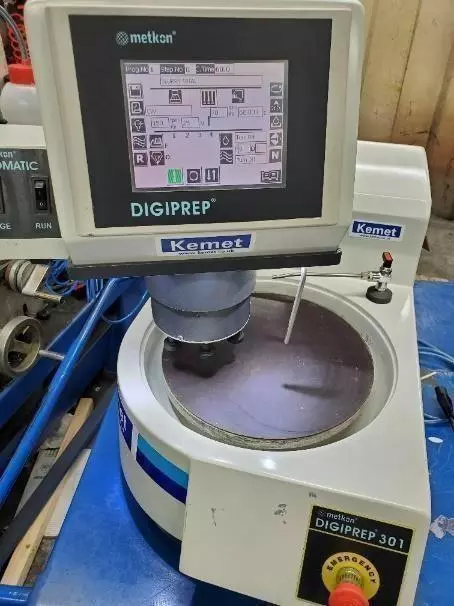

DIGIPREP 301 - S/N N0110211/N0110287

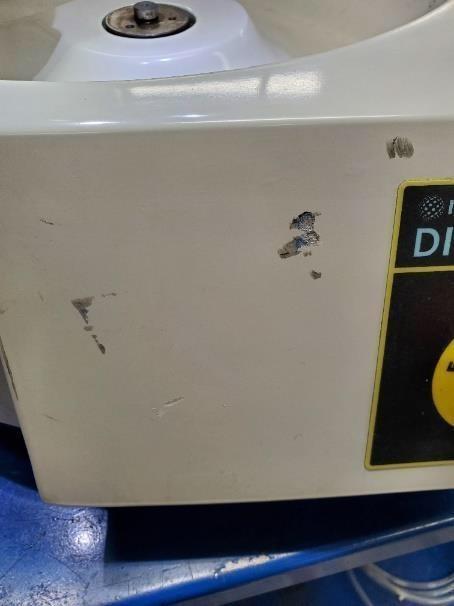

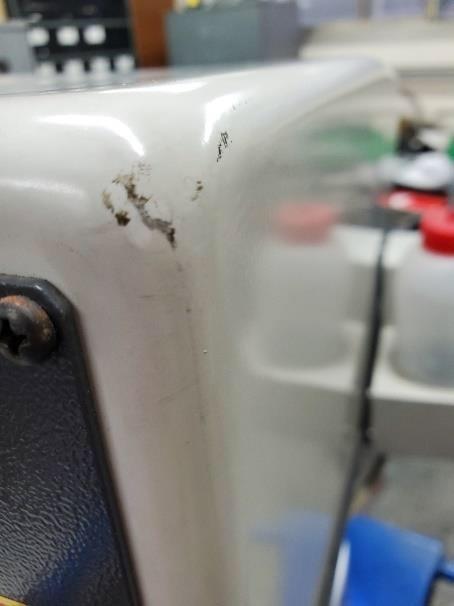

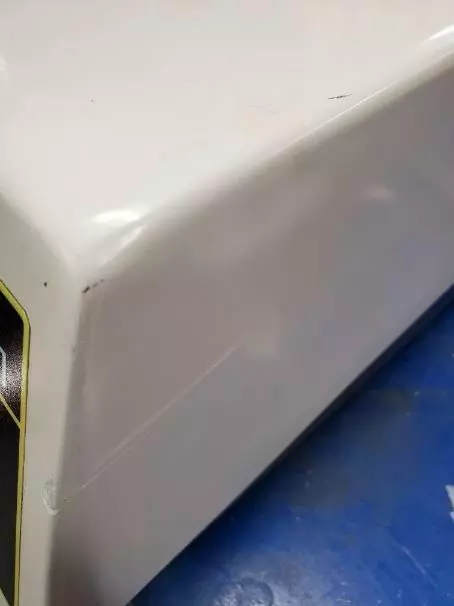

Machine casing has some scratch damage but does not affect operational use of the machine. Available for £...., please contact us for more info and to purchase.

DIGIPREP preparation systems are designed for fully automated materialographic sample preparation for consistent and reproducible specimen quality. DIGIPREP’s automatic head controls the force applied precisely (central and individual pressure), allowing specimens to be produced exactly the same way. With the ability to store and recall preparation programs on the LCD screen, consistent results are obtained. Supplied ready to use without specimen holders.

Specification of Base Unit

  • Single plate machine
  • Single powerful high-torque motor (1 HP)
  • Plate Ø 300mm
  • Variable speed: 50 - 600rpm (soft start and soft stop)
  • LED lighting illuminates platen, bowl, , specimen and working area
  • Retractable water hose for easier cleaning
  • Base Dimensions: 380mm x 690mm x 340mm
  • Electrical: 220V-single phase-50Hz

Specification of Automatic Head

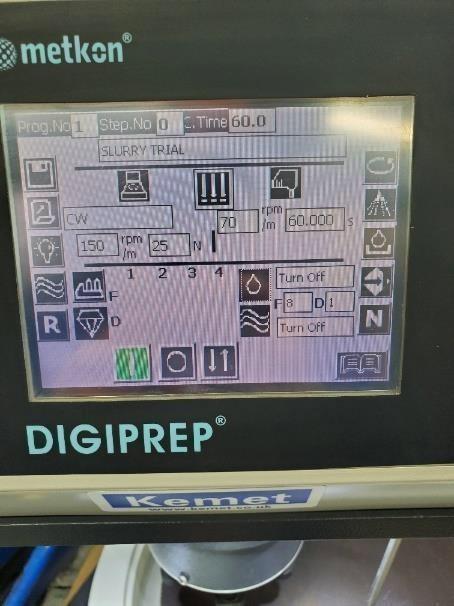

  • New HMI touch screen allowing 25 different programmes to be saved
  • Grinding depth measurement by Z axis control
  • Individual or Central Pressure
  • 60W, DC Head motor
  • Variable Head Speed, 50-150rpm
  • Quick locking swing mounted design
  • Lubomat integrated lubricant dispenser with gravity feed and flow adjustment valve
  • Air supply tubes, air filtering and lubricating unit
  • Sample Capacity: 1-6 samples (individual force) or up to 10 samples (central force)
  • Sample Force: 5 to 60 N per sample (individual force) or 20-360 N (central force)
  • Requires 6 bar compressed air

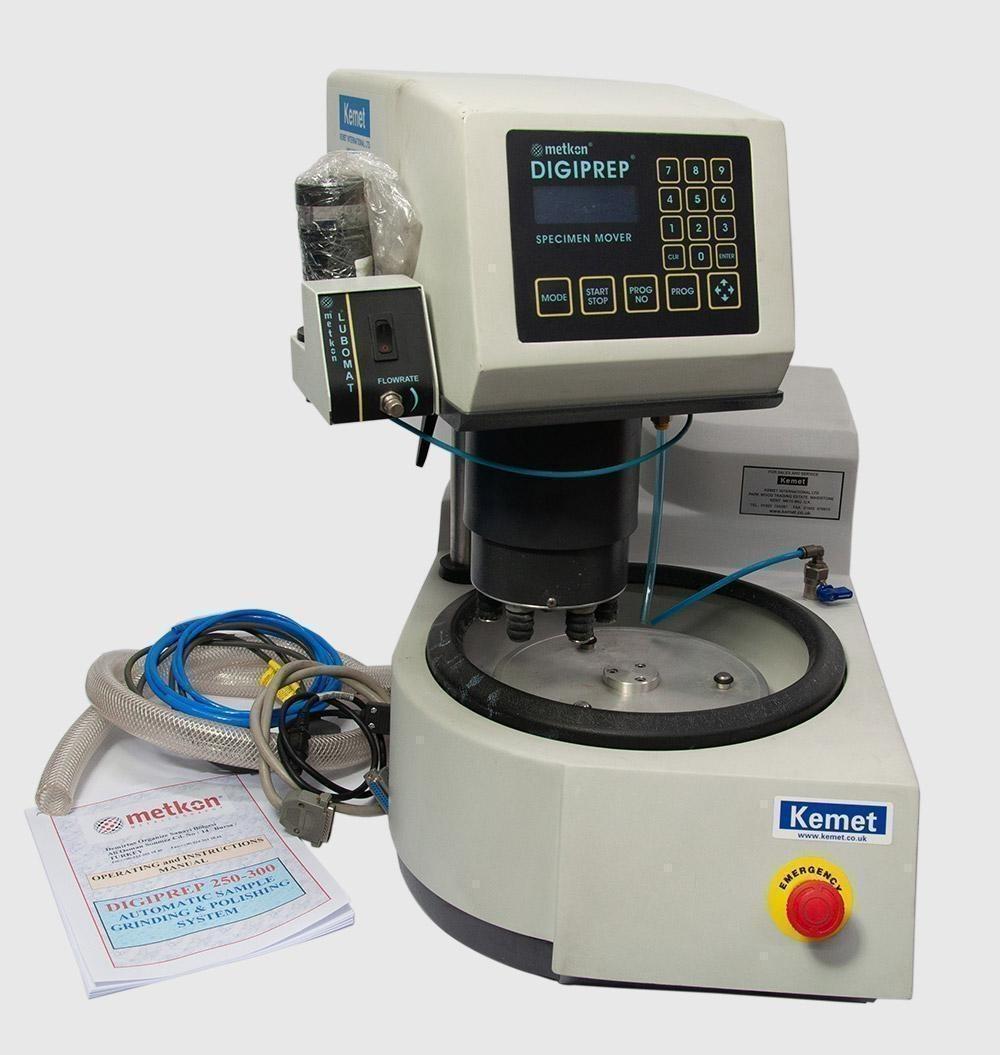

DIGIPREP 300 S/N N090065/N090080

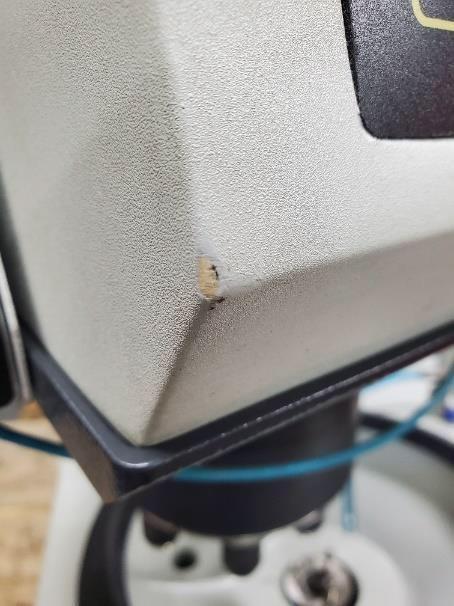

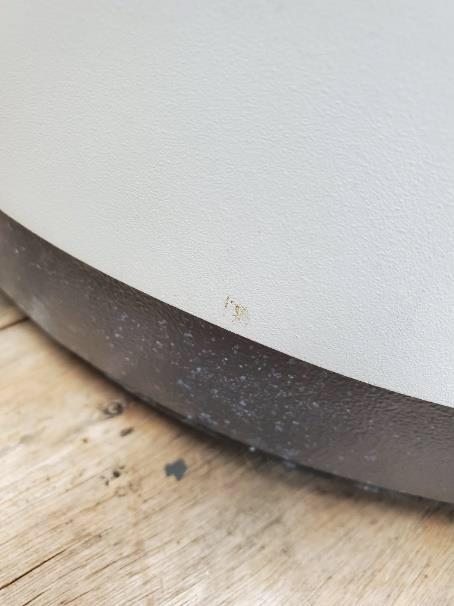

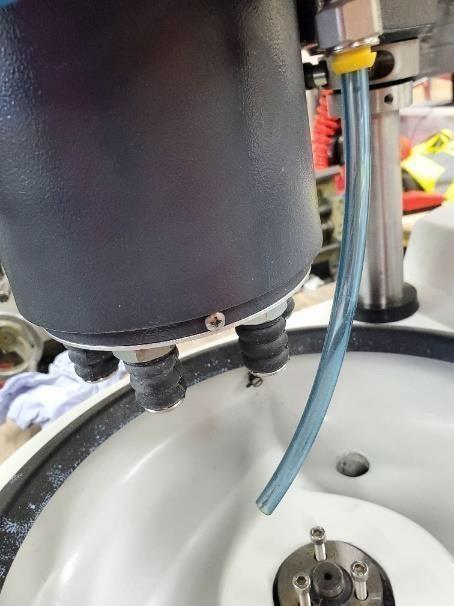

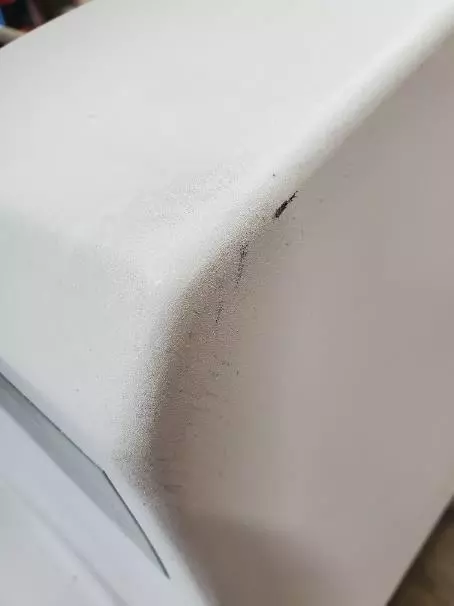

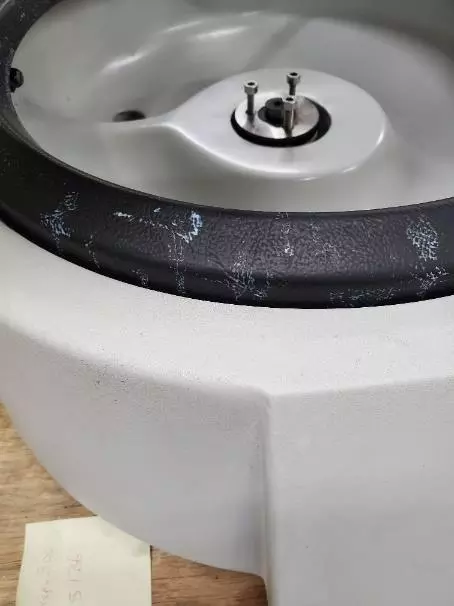

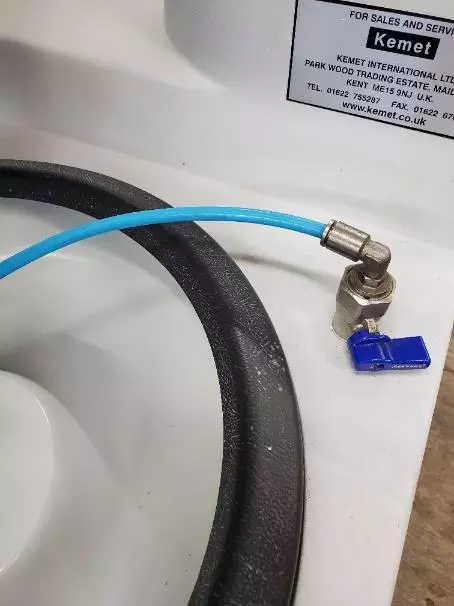

Water feed to plate and lubomat feed replaced with plastic tubing Instead of standard feed tubes. Machine stage has some 'staining' from fluid media usage. The machine shows general wear and tear damage due to its age (2009), however, all functions are operational. Available for £...., please contact us for more info and to purchase.

DIGIPREP preparation systems are designed for fully automated materialographic sample preparation for consistent and reproducible specimen quality. DIGIPREP’s automatic head controls the force applied precisely (central and individual pressure), allowing specimens to be produced exactly the same way. With the ability to store and recall preparation programs on the LCD screen, consistent results are obtained. Efficiency is further increased by adding the DOSIMAT Peristaltic unit for automation and control of consumable consumption. Supplied ready to use without specimen holders.

Specification of Base Unit

  • Single plate machine
  • Single powerful high-torque motor (1 HP)
  • Plate Ø 300mm
  • Variable speed: 50 - 600rpm (soft start and soft stop)
  • Base Dimensions: 420mm x 730mm x 350mm
  • Electrical: 220-1-50

Specification of Automatic Head

  • Individual or Central Pressure
  • 60W, DC Head motor
  • Head Speed 150 rpm
  • Sample Capacity: 1-6 samples (individual force) or up to 10 samples (central force)
  • Sample Force: 5 to 60 N per sample (individual force) or 20-360 N (central force)
  • Requires 6 bar compressed air
  • Head dimensions: 220mm x 450mm x 380mm

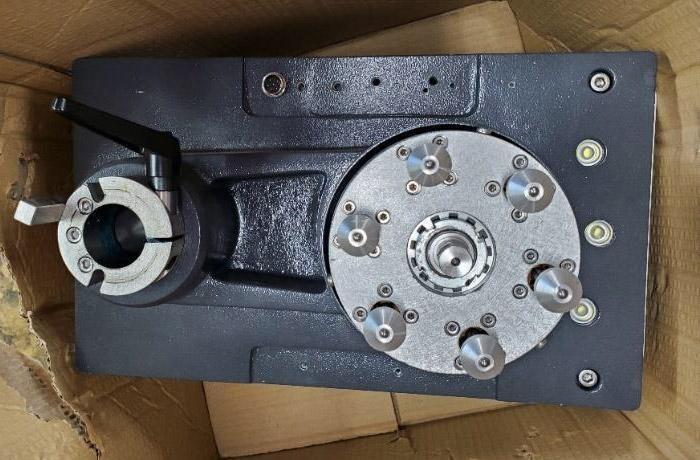

DIGIPREP 301 Head Unit S/N N0100606

Very little wear and tear signs, all fully working, available for £...., please contact us for more info and to purchase.

  • Individual or Central Pressure
  • 60W, DC Head motor
  • Head Speed 150 rpm
  • Sample Capacity: 1-6 samples (individual force) or up to 10 samples (central force)
  • Sample Force: 5 to 60 N per sample (individual force) or 20-360 N (central force)
  • Requires 6 bar compressed air
  • Head dimensions: 220mm x 450mm x 380mm

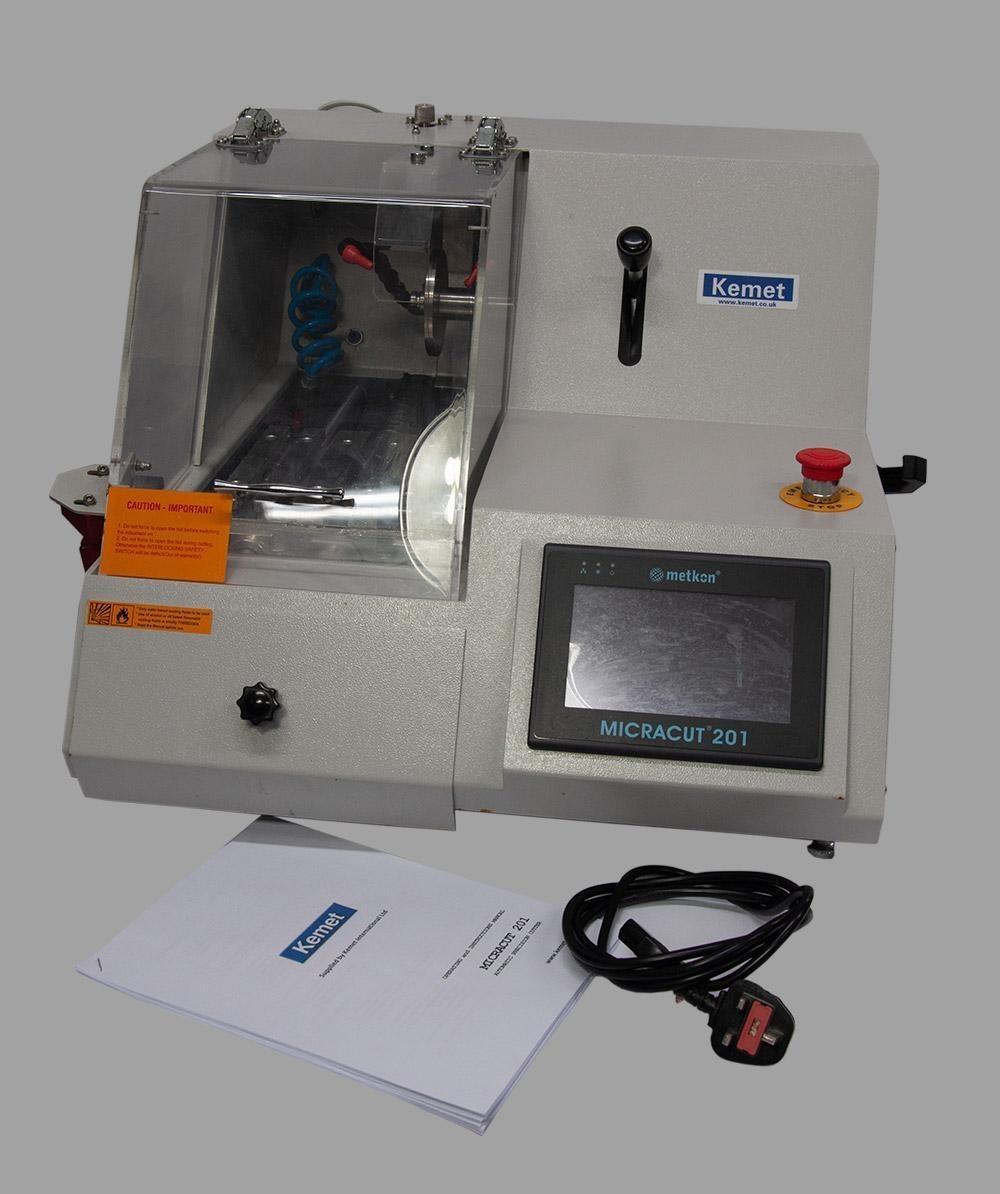

MICRACUT 201 - S/N N20150167

Very little signs of wear and tear, in excellent working order. Available for £...., please contact us for more info and to purchase.

MICRACUT 201 is a microprocessor controlled high speed table feed precision cut off machine used for precise and deformation free cutting of materials found in any metallurgical, geological, electronic, research, biomedical or industrial laboratory. The cut surface is ready for microscopic examination with minimal polishing.

MICROCUT 201 is built on precisely manufactured heavy duty aluminium frame providing stable and vibration resistant base for precision components and linear bearings. The cutting compartment is fully enclosed. The transparent hood is equipped with interlocking safety switch. It has variable speed from 500 to 5000 rpm allowing both high speed and low speed cutting. A wide range of clamping tools can be used on the T-slotted moving table. Optional X-axis table with motorised drive mechanism positions the specimen with 5 micron accuracy. The height of the cut off wheel (Z axis) can be adjusted up to 45mm. Diamond, CBN and abrasive cut off wheels up to 200mm diameter can be used. Automatic feed rate and force can be adjusted on the front panel. Supplied without clamping tools or specimen vice.

Cutting parameters:

The preselection of the cutting force as well as the setting of the cutting feed rate (20 – 1500 µm /sec) is possible from the touch screen LCD. The feed rate is automatically adjusted and if needed reduced, resulting in perfect cuts. This eliminates sample and machine damage.

Multi-Slice Cutting:

The optional automatic X-table allows programmable plane parallel sectioning. Slices of equal thickness with a number of slices as well as programming slices of different thickness is possible.

Programmable Return Positions:

Micracut 201 has 3 different stop modes:- Autostop: stops when the specimen has been cut through. Relative stop: stops when it has returned to its starting point. Absolute stop: stops when the ultimate reset point in all axes has been reached.

Database:

A library of 25 different cutting programs with related specimen name or number can be saved with all cutting parameters which can easily be recalled at any time.

Specification:

  • Cut of Wheel: Ø 200mm
  • Cutting Capacity: Ø 75mm or 40 x 50mm
  • Positioning range, X axis: 25mm
  • Positioning range, Y axis: 180mm
  • Positioning range, Z axis: 45mm

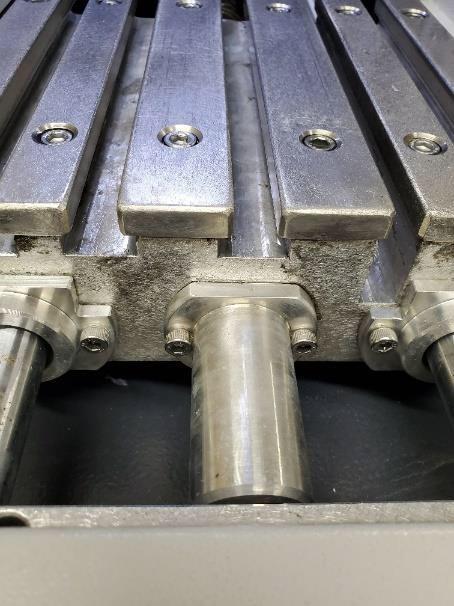

  • T slot table: 196 x 190mm
  • T slot dimension: 12mm
  • Cutting Power: 0.75 kW
  • Wheel speed: 500-5000rpm
  • Positioning accuracy, X axis: 5µm
  • Feed rate y axis: 20 – 1500 µm /sec
  • Cutting method: Table-feed, pulse cutting
  • HMI touch screen
  • Cooling unit: 5.5 litres
  • Size: 66cm x 75cm x 45cm, Weight: 90 kg
  • Electrical: 230V-1 phase-50Hz

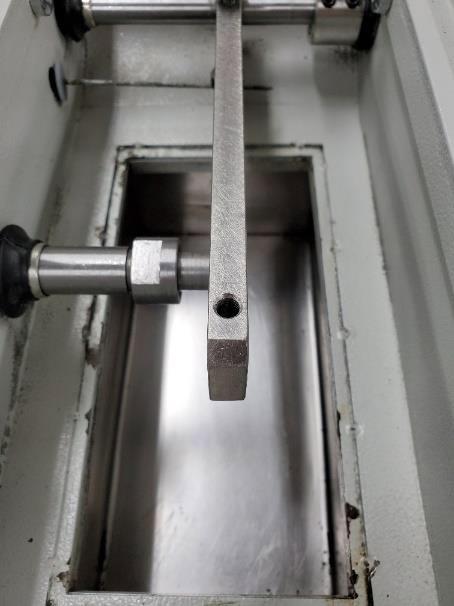

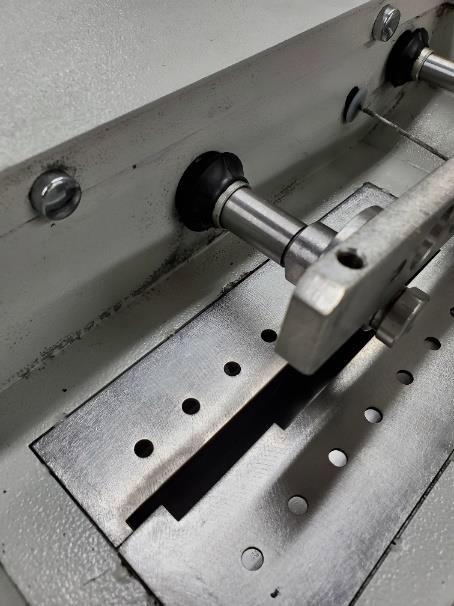

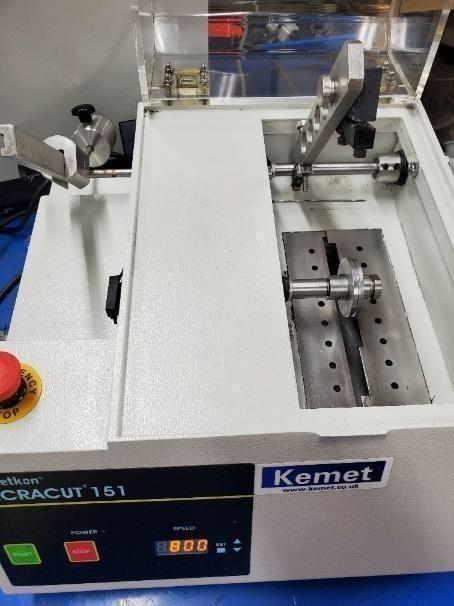

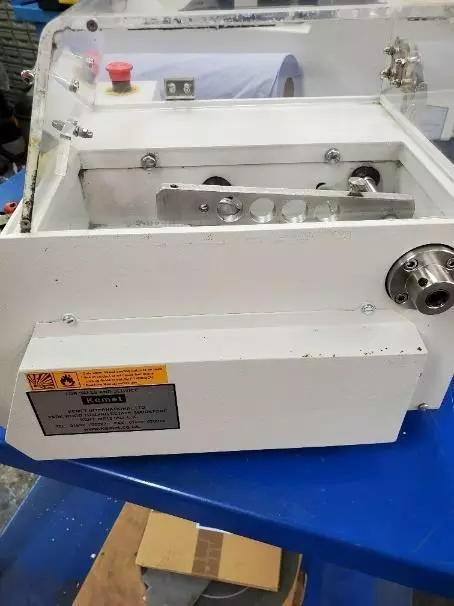

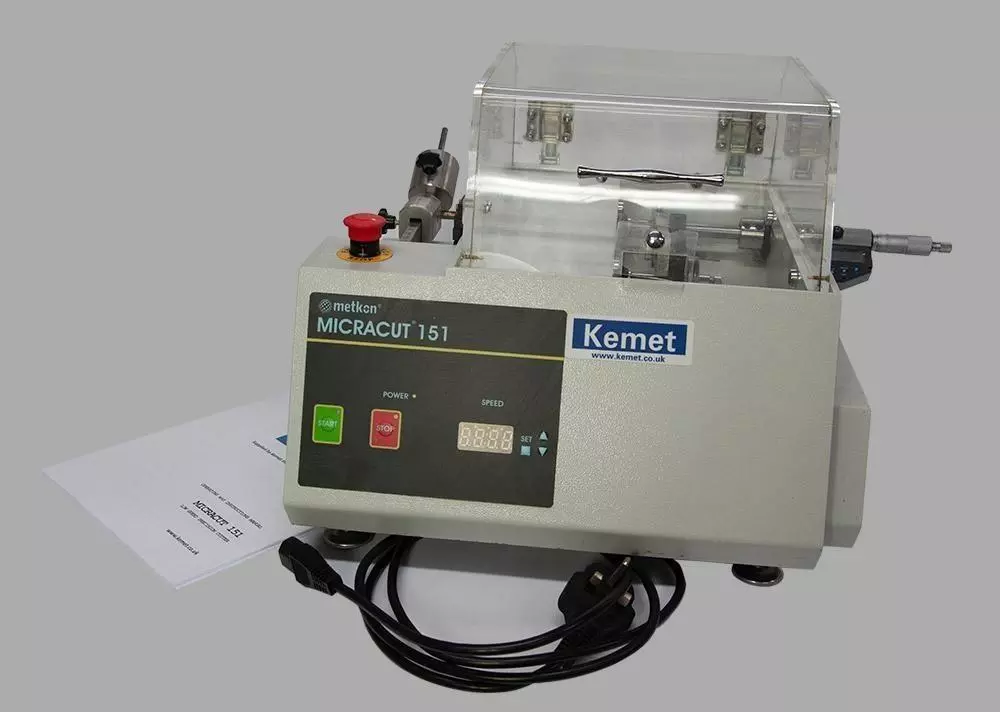

MICRACUT 151 - S/N N20130138

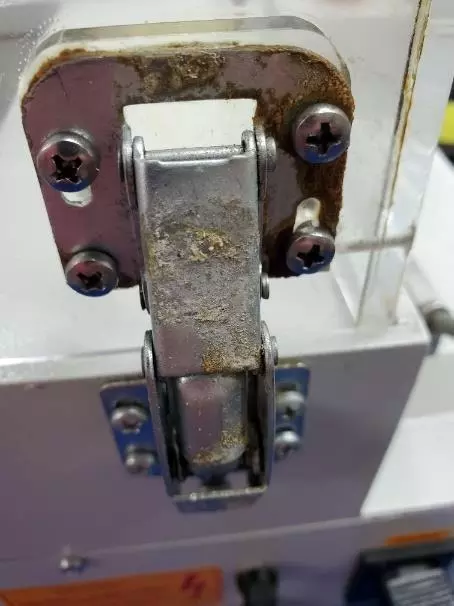

General wear and tear due to age of machine. Has heavy staining on some areas from use that cannot be cleaned/removed, this is not detrimental to machine usage. Grommet cover over arm bushing cracking but not fully perished. Available for £...., please contact us for more info and to purchase.

MICRACUT 151 is a low speed precision cut off machine used for precise and deformation free cutting of materials found in any metallurgical, geological, electronic, research, biomedical or industrial laboratory. The cut surface is ready for microscopic examination with minimal polishing.

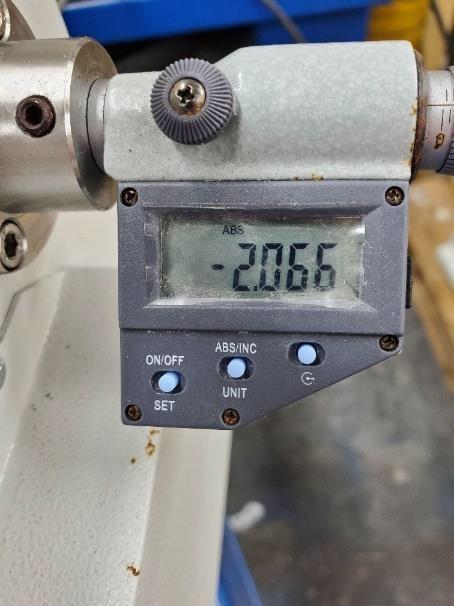

MICROCUT 151 accepts diamond and abrasive wheels up to 150mm diameter with a variable speed range between 0 to 1000 rpm. The gravity feed loading design minimises sample deformation. The sliding arm with counterweight allows precise force application. The digital micrometer enables the operator to set the cutting width with a resolution of 1 micron. The coolant tray is removable from the front of the instrument for easy cleaning. The cutting chamber is fully enclosed by a transparent hood. Blade dresser is an optional feature. At the end of the cut, an audible signal notifies the operator. Optional cutting table attachment is available for manual cutting of extra flat large specimens and PCBs. Supplied without specimen vice.

Specification

  • Cut of Wheel: Ø 150mm
  • Cutting Capacity: 50mm
  • Motor Power: 100W
  • Positioning range, X axis: 25mm
  • Built in coolant system
  • Cutting speed: 0 –1000 rpm
  • Cutting method: Chop
  • Size: 51cm x 43cm x 34cm
  • Weight: 28 kg
  • Electrical: 230V-1phase-50Hz
