Inverted Microscopes
Inverted microscopes are widely used in research and clinical laboratories for various biological and material science applications. Their unique design and versatility make them essential tools for scientists and researchers who need to examine specimens that may not be accommodated by traditional upright microscopes.
Advantages of Inverted Microscopes
Inverted microscopes offer advantages such as versatility for various applications, the ability to examine thick specimens, advanced imaging techniques, customisation with accessories, stability, ergonomic design, and suitability for live cell imaging. These benefits make them essential tools in scientific and research settings.
Inverted microscope vs Upright
The choice between an inverted microscope and an upright microscope depends on the specific needs of the application. Inverted microscopes are best for examining thicker or larger specimens, especially in biological and cell culture studies. Upright microscopes, on the other hand, are versatile and suitable for a wide range of routine microscopy applications, making them a common choice in clinical and research laboratories.

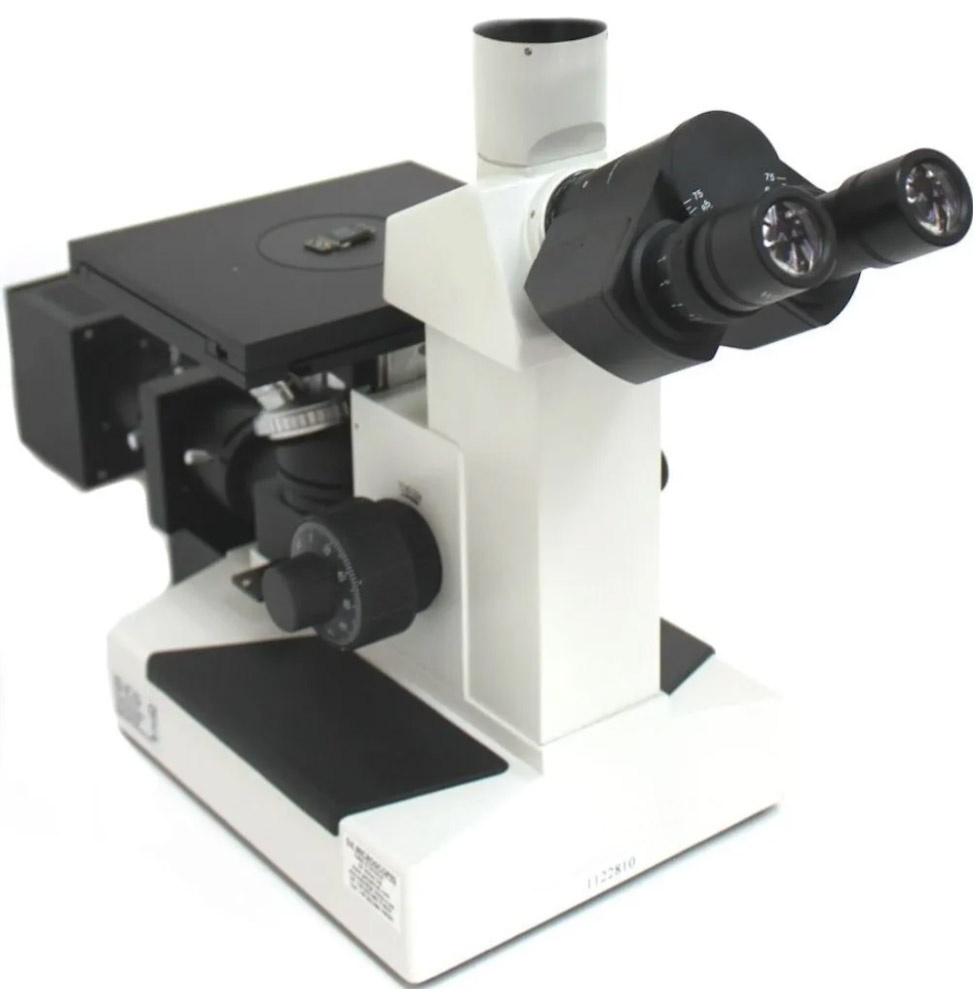

KMXJL17AT, 100X – 600X, Routine and Research, Inverted Metallurgical Microscope
The KMXJL17AT, known for its user-friendly design, especially when working with numerous specimens that require frequent changes of polished 'micros'. Its inverted configuration ensures that each new specimen is instantly in focus, making it particularly advantageous for examining large specimens that won't fit beneath an upright microscope model. Additionally, the microscope is equipped with a trinocular head, making it ready for digital camera attachment.
This microscope features a comprehensive set of high-quality plan achromatic metallurgical objectives positioned under the stage. You can adjust the focusing tension, and a focus lock safeguards the objectives from potential damage. The illumination is provided by an LED illuminator, offering adjustable intensity, field, and aperture diaphragms, along with a set of Y, G, B, and diffusion filters. The microscope is constructed on the sturdy XJL inverted series microscope frame, ensuring a stable and durable platform suitable for the most demanding applications.
There are various optional accessories available, such as camera adaptor, digital cameras, image analysis software, additional objectives, and eyepieces. Additional product details:
- Head: Trinocular Head with interpupillary distance adjustment Eyepieces: 10X Widefield Eyepieces
- Objectives: 4 Long Working Distance Plan Achromatic Objectives, including 10X (WD 8.8mm), 20X (WD 8.6mm), 40X (WD 3.7mm), and 60X (WD 1.3mm)
- Stand & Focus Mechanism: A substantial stand with Coarse/Fine Focus, Adjustable Tension, and Limit Stopper
- Stage and Condenser: Double Layer Mechanical Stage, 180mmx150mm (movement range 15mm x 15mm)
- Illumination: Reflected LED Illumination, including Field and aperture diaphragms, Y, G, B Frosted Filters
KMXJL17ATPOL, 50X – 600X, Routine and Research, Inverted Metallurgical Microscope
The KMXJL17AT offers user-friendly operation, especially when dealing with numerous specimens that require frequent changes of polished 'micros'. Its inverted microscope design ensures that each consecutive specimen remains instantly in focus, making it highly beneficial for examining sizable specimens that do not fit beneath an upright microscope model. Moreover, this microscope comes equipped with a trinocular head, ready for digital camera attachment.
This microscope boasts a comprehensive collection of top-quality plan achromatic metallurgical objectives mounted beneath the stage. You can adjust the focusing tension, and a focus lock safeguards the objectives from potential damage. It utilises LED lamphouse illumination, featuring adjustable intensity, field, aperture diaphragms, and a set of Y, G, B, and diffusion filters. The microscope is constructed on the robust XJL inverted series microscope frame, providing a stable and durable platform suitable for the most demanding applications.
Optional accessories encompass a variety of camera adaptors, digital cameras, image analysis software, additional objectives, and eyepieces. Details of the Long Working Distance Plan Achromatic Metallurgical Objectives included are as follows: 5X, 10X, 20X, and 60X (80X and 100X are available as optional additions). Additional specifications include:
- Head: Trinocular Eyepieces: 10x
- Objectives: 4 Long Working Distance Plan Achromatic Objectives, including 5x (WD 18mm), 10x (WD 8.8mm), 20x (WD 8.5mm), and 60x (WD 1.3mm).
- Stage: Double Layer Mechanical Stage, measuring 180mm x 150mm, with a movement range of 15mm x 15mm.
- Illumination: Reflected LED Illumination, accompanied by field and aperture diaphragms, Y, G, B Frosted Filters, and a polariser.
