Fully Automatic Hardness Testing
Evaluation of the test indents is performed in the DuraVision G5 series with fully automatic brightness control and fast autofocus. The test load is applied using the proven concept of closed-loop control – the force is thereby continuously and precisely monitored by electronic force measuring sensors. Motorised cross slides position the test points with a high degree of repeatability and positioning accuracy, without any operator influence.
The DuraVision G5 series offers a uniquely broad standard load range from 0.3 kgf to 3,000 kgf, thereby fulfilling the prerequisites for numerous different test methods. Furthermore, intelligent use of the high-resolution 10-megapixel camera allows a 3x zoom without having to accept any loss in image quality due to interpolation. This innovative solution allows a wide range of applications to be covered with a small number of lenses. In order to make full use of this potential, the DuraVision G5 uses only lenses that offer maximum optical resolution. The 7 positions of the star turret also spare you from changing tools.
Whether subjected to a 0.3 kgf or 3,000 kgf test load, the rigid cast iron stand guarantees absolute test stability for the entire range of loads. By using precious components and materials we are also able to comply with North American safety standards (control unit ‘UL-listed’ for the highest standards of fire resistance for plastic covers).
The DuraVision G5 Automatic helps to save time, both in serial testing and in the case of alternating test requirements. Thanks to the new, patented rapid traverse, the height of the nose cone can be adjusted at up to 25 mm/s. Combined with intuitive operation and use of the template function, this enables quick configuration. The high degree of automation of the DuraVision G5 Automatic reduces the active operating time involved in serial testing many times over. The xChange interface included as standard allows the automatic import and export of test parameters and test results and speeds up the test cycle.
Slim nose cone with star-shaped turret
The nose cone of the DuraVision G5 can be configured either with a 2-fold star-shaped turret (standard) or with a 7-fold star-shaped turret (optional). The slim nose cone also makes it easy to test complex components.
Overview camera (optional)
With the help of a “macro lens” featuring a 10x zoom, the overview camera generates a large live image of the specimen, thereby simplifying the setting of multiple test points and complicated test rows – making this an unbeatable tool in combination with the evaluation lenses.
Motorised cross slide
The large travel ranges of the cross slide enable optimum, fully automatic hardness testing. The high resolution ensures a high degree of repeatability and positioning accuracy.
CE protective housing
Maximum protection with highest levels of user-friendliness – together with the CE protective housing, the DuraVision G5 meets international CE requirements. The light barrier system means that no safety door needs to be opened in future in order to access the machine's testing area. User-friendliness is therefore increased without compromising safety. In countries where the CE label applies, the machine may only be supplied with the protective housing. For the purposes of automation, the DuraVision G5 is also available outside these countries without a protective housing, in which case the machine is supplied without a CE label.
DuraVision 250 G5 Testing Methods
Brinell
According to ISO 6506, ASTM E10
1/1 | 1/2.5 | 1/5 | 1/10 |
1/30 | 2.5/6.25 | 2.5/15.6 | 2.5/31.25 |
2.5/62.5 | 2.5/187.5 | 5/25 | 5/62.5 |
5/125 | 5/250 | 10/100 | 10/250 |
HBD* |
Knoop
According to ISO 4545, ASTM E384, E92
HK 0.3 | HK 0.5 | HK 1 | HK 2 |
* not standardised
Vickers
According to ISO 6507, ASTM E384, E92
HV 0.3 | HV 0.5 | HV 1 | HV 2 | HV 2.5 |
HV 3 | HV 5 | HV 10 | HV 20 | HV 30 |
HV 50 | HV 60 | HV 100 | HV 120 | HV 125 |
HV 150 | HVD* |
Plastic testing
according to EN ISO 2039
49.03 N | 132.9 N | 357.9 N | 961 N |
Rockwell
According to ISO 6508, ASTM E18
HRA – HRV | HR15-N/T/W/X/Y |
HR30-N/T/W/X/Y | HR45-N/T/W/X/Y |
Carbon testing
According to DIN 51917
2.5/7 | 5/7 | 5/15 | 5/20 | 5/40 |
5/60 | 5/100 | 5/150 | 10/20 | 10/40 |
10/60 | 10/100 | 10/150 |
DuraVision 350 G5 Testing Methods
Brinell
According to ISO 6506, ASTM E10
1/5 | 1/10 | 1/30 | 2.5/6.25 |
2.5/15.6 | 2.5/31.25 | 2.5/62.5 | 2.5/187.5 |
5/25 | 5/62.5 | 5/125 | 5/250 |
5/750 | 10/100 | 10/250 | 10/500 |
10/1000 | 10/1500 | 10/3000 | HBD* |
* not standardised
Vickers
According to ISO 6507, ASTM E384, E92
HV 3 | HV 5 | HV 10 | HV 20 | HV 30 |
HV 50 | HV 60 | HV 100 | HV 120 | HV 125 |
HV 150 | HVD* |
Rockwell
According to ISO 6508, ASTM E18
HRA – HRV | HR15-N/T/W/X/Y |
HR30-N/T/W/X/Y | HR45-N/T/W/X/Y |
Carbon testing
According to DIN 51917
2.5/7 | 5/7 | 5/15 | 5/20 | 5/40 |
5/60 | 5/100 | 5/150 | 10/20 | 10/40 |
10/60 | 10/100 | 10/150 |
Serial testing with the DuraVision G5
Easy generation of test series
The test point editor allows test points to be easily set up in a grid. It is also possible to set up each individual test point by entering coordinates. An even more elegant solution for serial measurement is provided by line and polygon line tools. Test series can be automatically adapted to suit work piece contours. Compliance with standard defined test distances is also enabled by an integrated tool (i.e. point distance = 3 x diagonal).
Positioning using a fixed reference point
Several test points or rows can be fixed very simply to a defined reference point and saved as a template. Later, this template can be easily placed over the new work piece and exactly positioned by rotation over the reference point.Testing of identical parts

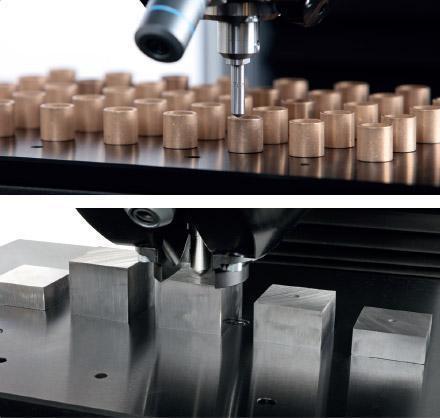

If several work pieces with the same test requirements are placed and tested on the cross slide, the DuraVision is able to show the full range of its skills. All test parameters are taken from the existing template and transferred to the new work piece.Work pieces with different heights
Even simultaneous serial testing of multiple specimens with different heights presents no problem at all for the DuraVision G5, whether with or without nose cone.

Positioning with panorama function (optional)
The overview camera captures a specimen size of 180 x 145 mm and is equipped with a 10x zoom. This makes it very simple to position individual test points – as well as complex test sequences and test patterns – in the real-time image of the overview camera. With the unique panorama function, it is also possible to set all test points in one operation, even on larger specimens. The maximum specimen size is limited only by the travel ranges of the motorised cross slide. The specimen image from the overview camera can be inserted into test reports or archived on the company network.
Jominy tests (optional)
Jominy end quench tests have never been quicker or easier! With a separate software module, ecos Workflow CIS also guides the operator in the customary manner, step by step, to the result with Jominy specimens. The operator has a choice of two options for Jominy testing – standard-compliant or user-defined. For the standard-compliant test, operators choose between HV 30 and HRC test methods in accordance with EN ISO 642 and ASTM A255 respectively. All the test parameters, including test point spacings, are predefined and guaranteed standard-compliant.

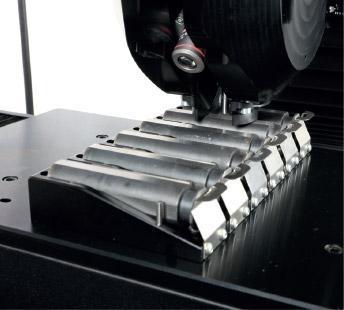

For the user-defined test, operators can design the testing of Jominy specimens freely according to their requirements. All test methods are available for selection, and users can define their own test point patterns and spacings. Furthermore, multiple parallel test sequences can be created on one test surface. Single specimen holders are used for performing Jominy tests. The Jominy specimen holders can be combined with one another, thereby enabling up to 18 specimen holders to be placed on the cross table. The result is described clearly with all hardness values in a standardised test report.

DuraVision 250 G5 | DuraVision 350 G5 | |
---|---|---|
Methods and load range | ||
Load range 2.942 - 2,452 N (0.3 - 250 kgf) - electronically controlled | • | - |
Load range 29.42 - 29,420 N (3 - 3,000 kgf) - electronically controlled | - | • |
Brinell (ISO 6506, ASTM E10) | • | • |
Vickers (ISO 6507, ASTM E384, E92) | • | • |
Rockwell, Super Rockwell (ISO 6508, ASTM E18) | • | • |
Knoop (ISO 4545, ASTM E384, E92) | • | - |
Plastics testing (ISO 2039) | • | - |
Configuration | ||
ecos Workflow CIS Pro operating software | • | • |
Automatic test cycle with brightness control, autofocus and image evaluation | • | • |
3x zoom | • | • |
10 Mpix evaluation camera with CMOS sensor | • | • |
Machine control via integrated PLC | • | • |
Motorised height adjustment of the test unit with rapid traverse | • | • |
Clamping force setting 1,961.4 - 19,614 N(200 - 2,000 kgf) ±10% | • | • |
Automatic 2x star-shaped turret | • | • |
Automatic 7x star-shaped turret | optional | optional |
Surface lighting (integrated into nose cone, dimmable) | • | • |
Testing clamped/unclamped | • | • |
Motorised cross table (WxD) | 400 x 250 mm | 400 x 250 mm |
Software functions | ||
Template function | • | • |
CHD, NHD, SHD and serial measurements | optional | optional |
Extended export functions via Export Editor | • | • |
Calibration Information System with calibration assistant | • | • |
ecos Workflow xCHANGE (XML-based interface for data connection) | • | • |
Multiple specimen module for testing several specimens in one work cycle | optional | optional |
areaMASTER software module for generating hardness maps | optional | optional |
Jominy software module | optional | optional |
Integrated TeamViewer client | • | • |
Adjustable User Rights | • | • |
Interfaces | ||
Interfaces for PC connection | 2x USB 2.0, 1x RJ45 | 2x USB 2.0, 1x RJ45 |
Functional dimensions | ||
Max. specimen weight | 50 kg | 50 kg |
Weight of basic unit | 500 kg | 500 kg |
Z-axis resolution | 0.18 μm | 0.18 μm |
Max. speed on Z-axis | up to 25 mm/s | up to 25 mm/s |
Max. test height | 420 mm | 420 mm |
Max. throat depth | 320 mm | 320 mm |
Nose cone support | 53 x 42 mm | 53 x 42 mm |
Machine data:
Dimensions (W x H x D) | 900 x 1370 x 1050 mm |
Space requirements (W x D) | 900 x 1050 mm |
Test force application resolution | 0.45 nm |
Length measuring probe resolution | 0.05 μm |
Protection class to EN 60529 | IP20 |
Voltage supply (V) | 230 V 1/N/PE |
110 V 1/N/PE | IP20 |
Max. voltage fluctuations | ± 10% |
Frequency | 50/60 Hz |
Main fuse (110 / 230 V) | T 6.3 A |
Room temperature (to ISO/ASTM) | +5°C to +40 °C |
Humidity | max. 70% |
Power consumption (max./standby) | 600 W / 100 W |
