Electrolytic Polishing and Etching Machine

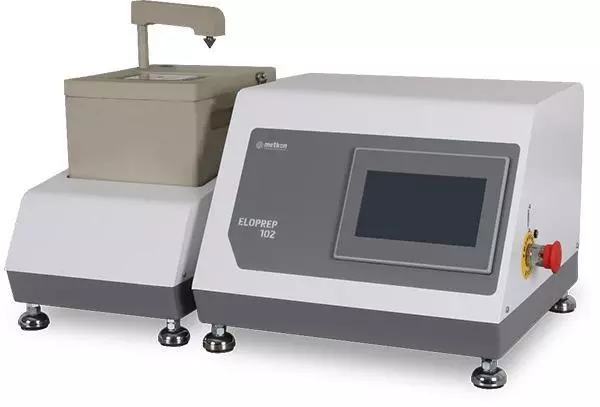

ELOPREP 102 is a fully automatic electrolytic polishing and etching equipment with independent control unit. Shorter preparing time is needed for electrolytic polishing and etching process compared to traditional mechanical preparation.
The eloprep has advanced techniques and software with programmable coloured HMI touch screen controls, increasing the productivity, sample consistency and operator comfort. All speed, etc. can be monitored during the process. The speed of the amount to be pumped is also variable.
A library of 25 different cutting programs with related specimen name or number can be saved with all parameters which can be recalled at any time.

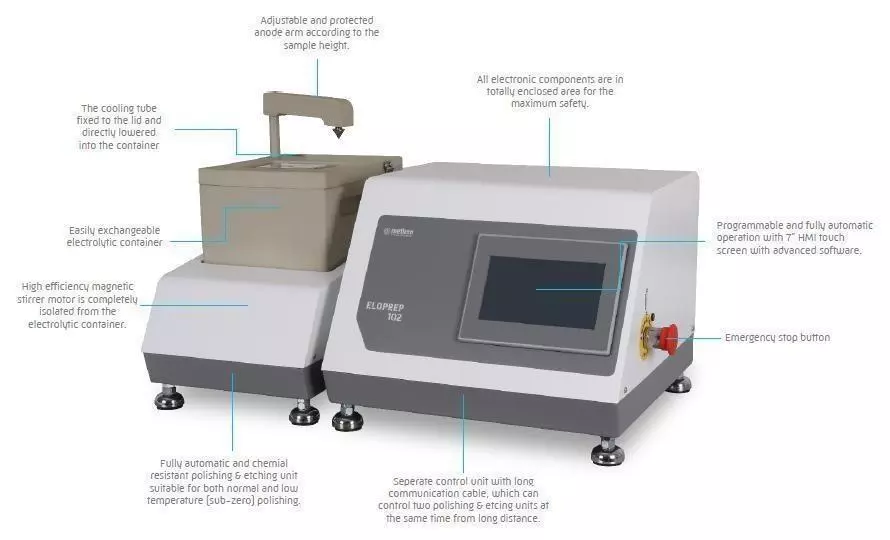

Eloprep 102 has two separate units, the control unit and the polishing unit. Separate polishing and etching unit can be placed away from the control unit and can be installed under a fume extraction system. The electrolyte cartridge is easily exchangeable and inserted into the polishing and etching unit.
With the scanning function of Eloprep 102, correct voltage of polishing as well as etching can be defined automatically.
The sample is placed on the polishing and etching table where optional masks are available as 0.5 cm2 - 5cm 2. The cooling tube is fixed to the lid and directly lowered into the container. Eloprep 102 has the highest safety standards. The cooling water is automatically switched on as the set temperature is reached. The cooling water is activated with a solenoid valve.
- Fully automatic electrolytic polishing and etching of metallographic specimens
- Temperature limiter (C) – 30-50
- Electrolytic container volume (ml) – 1000ml
- External etching volume (ml) – 1200ml
- Pump – Magnetic stirrer
- Integrated cooling system
- Automatic scanning function
- 5.7” HMI touch-screen controls
- 25 program memory
- Electrical - 230V-1Ph-50Hz
- Weights / Dimensions - Cooling unit – 404 x 370 x 305mm / 20kg Polishing unit – 210 x 370 x 305mm / 5kg
| Model | ELOPREP 102 |
|---|---|
| Temperature limiter, C | 30 - 50 |
| Pump | Magnetic Stirrer |
| Electrolytic Container Volume, mL | 1000 ml |
| External Etching Volume, mL | 1200 ml |
| Cooling System | Integrated |
| Mask Dimensions, cm2 | 0 - 0.5 - 1 - 2 - 5 |
| Scanning Function | Automatic |
| Control Panel | HMI TS |
| Program Memory | 25 |
| Output Voltage / Current | |
| Polishing | 0-120 V |
| Etching | 0-35 V |
| External Etching | 0-15 V |
| Power Supply | 1x 110/120 V |
| 1 x 230 V | |
| Dimensions, WxDxH, mm | |
| Control Unit | 404 x 370 x 305 |
| Polishing Unit | 210 x 370 x 305 |
| Weight, kgs | |
| Control Unit | 20 |
| Polishing Unit | 5 |
Optional Accessories for Eloprep 102
Cathodes
YM 6904-00 Stainless steel
YM 6937-00 Copper
YM 6936-00 Titanium
External etching unit
46 10 for ELOPREP
Masks
46 12 0,5 cm²
46 13 1 cm²
46 14 2cm²
46 15 5cm²
46 16 without aperture
46 17 set of masks
