Diaflex diamond impregnated sheets

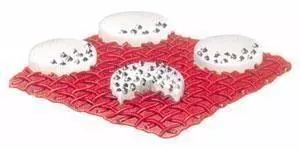

Kemet Diaflex is a self adhesive flexible diamond material which combines the long life and aggressive cutting action of diamond with the flexibility of cloth. Supplied in either discs or squares from Grit 60 - 12000. The diamond is either nickel bonded (N) or resin bonded (R).
Diamond Discs
| Dimensions | |||||
|---|---|---|---|---|---|
| Grade | 150mm | 200mm | 230mm | 250mm | 300mm |
| Code | Code | Code | Code | Code | |
| Green (N) Grit 60, 250 Micron |
342074 | 342025 | 342075 | 342076 | 342068 |
| Black (N) Grit 120, 125 Micron |
342001 | 342002 | 342077 | 342026 | 342027 |
| Red (N) Grit 200, 74 Micron |
342004 | 342005 | 342067 | 342028 | 342029 |
| Yellow (N) Grit 400, 40-50 Micron |
342006 | 342007 | 342071 | 342030 | 342031 |
| White (N) Grit 800, 20-30 Micron |
342032 | 342008 | 342072 | 342033 | 342034 |
| Yellow / White (R) Grit 800, 20-30 Micron | 342078 | 342035 | 342079 | 342080 | 342047 |
| Blue (R) Grit 1800, 6-12 Micron |
342042 | 342009 | 342073 | 342081 | 342084 |
| Orange (R) Grit 12000, 1-3 Micron |
342069 | 342010 | 342082 | 342083 | 342085 |
Diamond Squares
| Dimensions | |||
|---|---|---|---|
| Grade | 100mm x 100mm | 150mm x 150mm | 300mm x 300mm |
| Code | Code | Code | |
| Green (N) Grit 60, 250 Micron | 342011 | 342013 | 342048 |
| Black (N) Grit 120, 125 Micron | 342014 | 342070 | 342049 |
| Red (N) Grit 200, 74 Micron | 342016 | 342036 | 342050 |
| Yellow (N) Grit 400, 40-50 Micron | 342018 | 342066 | 342051 |
| White (N) Grit 800, 20-30 Micron | 342020 | 342037 | 342052 |
| Yellow / White (R) Grit 800, 20-30 Micron | 342038 | 342044 | 342053 |
| Blue (R) Grit 1800, 6-12 Micron | 342043 | 342021 | 342054 |
| Orange (R) Grit 12000, 1-3 Micron | 342022 | 342023 | 342055 |
