Workholding is one of the most important factors when carrying out a lapping operation. The flatness of a part can be adversely affected by incorrect workholding.

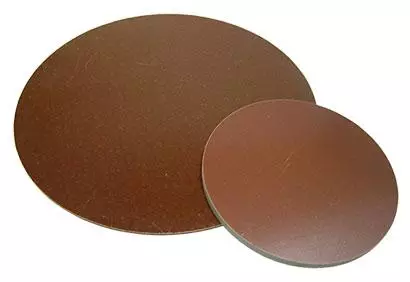

For continuous lapping of the same range of parts, it makes sense to have sets of profiled workholders. A full range of blank workholders 3mm or 6mm thick are available. We can also supply pre-profiled workholders on request.
| Lapping Machine | Workholder Diameter | Workholder Thickness | Code |
|---|---|---|---|
| Kemet 15 | 138mm | 3mm | 360206 |
| Kemet 15 | 138mm | 6mm | 360678 |
| Kemet 20 | 189mm | 3mm | 362460 |
| Kemet 24, 3 ring | 246mm | 3mm | 360269 |
| Kemet 24, 3 ring | 246mm | 6mm | 360232 |
| Kemet 36, 3 ring | 366mm | 3mm | 360280 |
| Kemet 36, 3 ring | 366mm | 6mm | 360285 |
| Kemet 48, 3 ring | 503mm | 6mm | 360248 |
| Kemet 56, 3 ring | 576mm | 6mm | 362498 |
Other sizes available upon request.
Kemet Facing Kit
The Kemet facing kit consists of a non-skid rubber pad. This pad can be fixed to the bottom surface of the hand weight to hold parts without a workholder and protect the parts being lapped. The hand weight with the pad is then placed directly on top of the parts which have been positioned inside the conditioning ring. Lapping can occur and the parts will not skid out of position.
On complicated parts, special workholding fixtures may be required. When producing such fixtures, the following points should be borne in mind:
1. The weight of the fixture should be balanced when holding the parts.
2. Ideally, three or more parts should be held in the fixture.
3. Often height setting blocks are helpful when assembling parts into the fixture.
4. When holding round or similar shapes where the end face is to be lapped, use a 'V' type location rather than a hole in a block.
5. The fixture should be a loose fit within the conditioning ring so it is free floating on the Lapping Plate.
| For Lapping Machine... | Code |
|---|---|
| Kemet 15 | 361503 |
| Kemet 24 | 361504 |
| Kemet 36 | 361509 |
Other sizes available upon request.

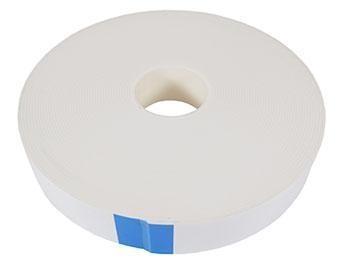

Self Adhesive Foam Tape
Double sided self-adhesive foam tape. Dimensions: 3 mm thick, 50 mm wide and 25 m long. Use in combination with Non-slip Film (material)
Product code: 361506
- Closed cell PVC foam with a paper or film release liner
- Coated on both sides with a high quality pressure sensitive acrylic adhesive
- Approved to RES22LA06
- Ultra violet light resistant
- No known hazards associated with this product
- Service temperature: -40°C to +70°C
- Performance will vary across the service temperature range
| Description | Units | Value | Test method |
|---|---|---|---|
| Type of Seal | - | Water | - |
| Compression to effect a seal | % | 20 | Internal |
| Static Shear, 500 hour loading | Kg/cm² | 0.15 | Internal |
| Max recommended weight loading | g/cm² | 7 | Internal |
| 180° peel adhesion to steel | N/25mm | 12 | Internal |

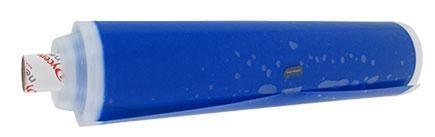

Non-slip Film (material)
The Non-slip material has a protective film on both sides, which will keep the material clean until ready to use. Dimensions: 406 mm x 9 m
Product code: 361505
Kemfix Mounting Film
Kemfix mounting film is used to fix parts for single side grinding, lapping and polishing processes on mounting plates. It is compatible with glass, ceramic and metal base plates and nearly all types of substrates.
