Diamond Lapping Film
Kemet precision coated diamond abrasive lapping film products are specifically engineered to meet all your ultra-fine, consistent polishing and final finishing requirements.
- Medium and hard metals
- Glass, rubber, ceramics and plastic
- Aerospace parts (e.g. shafts and landing gear)
- Precision automotive parts
- Fibre optic connectors
- Carbides
- thermal-sprayed rolls or cylindrical parts (HVOF)
Features/Benefits
Wide range of engineered, tightly-graded micron-sized particles/ Ensures consistent, long-lasting polishing. Generates scratch free surfaces; achieving Ra values under 1 micro-inch on hard materials, including HVOF depositions. Improves coolant access at point of contact
Proprietary resin system/Improves adhesion to substrate
Uniform 3 mil polyester film backing/Ensures film flatness and improved part geometry
Compatible with most machinery attachments and all coolants - Allow quick film replacement
Long life/Offers high yields, reduced rework, and uses fewer steps for lowest total abrasive costs
| Kemet Diamond Lapping Film, Plain Backed | ||
|---|---|---|
| Micron | Colour | 230 x 280 mm |
| 0.5 | Light Grey | 362901 |
| 1 | Grey | 362549 |
| 3 | Pink/Purple | 362550 |
| 6 | Dark Grey | 362902 |
| 9 | Blue | 362903 |
| 15 | Orange | 362040 |
| 30 | Green | 362904 |

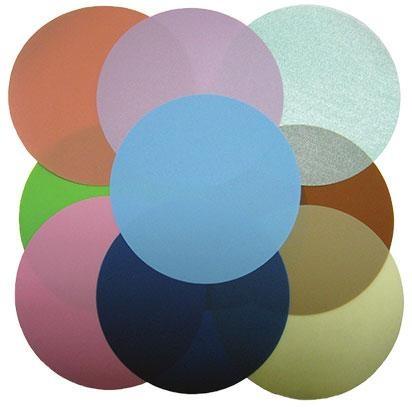

| Diamond Lapping Discs PSA Backed | ||
|---|---|---|
| Micron | Colour | 300 mm Diameter |
| 0.5 | Light Grey | 362997 |
| 1 | Grey | 362998 |
| 3 | Pink/Purple | 363004 |
| 6 | Dark Grey | 363002 |
| 9 | Blue | 363001 |
| 15 | Orange | 363000 |
| 30 | Green | 362999 |
| MICRONS | ROLL WIDTH | ROLL LENGTH | DISC DIAMETER | SHEET SIZE |
|---|---|---|---|---|
| 1, 3, 9 | </= 12" | 50' - 150' | </= 12" | </= 12" x 12" |
| 9, 15, 30, 45, 60, 76, 100 | </= 12" | 50' - 150' | </= 12" | </= 12" x 12" |
| 1, 3, 6 | </= 12" | 50' - 150' | </= 12" | </= 12" x 12" |
Standard roll </= widths 50, 100 and 200 mm. Other </= widths are available on request.
