Cross Hole & Hole Deburring for after drilling

Xebec brushes use unique abrasive ceramic fibre material instead of abrasive grains. The content ratio of ceramic fibres is an impressive 80% giving exceptional grinding power with a consistent cutting performance throughout the life of the brush. This is a real advantage compared to abrasive impregnated nylon brushes, where performance drops off over time, resulting in increased process times and mush higher frequency of brush replacement.

The Xebec products also maintain their shape for their full working life unlike other deburring materials that deform quickly; this improves the consistency of finish and eases management of them as a consumable on a mass production line.

deburring brush crossholes

XEBEC Brush™ Crosshole

Ideal for deburring, polishing and cutter mark removal of inner diameter and counterbored part

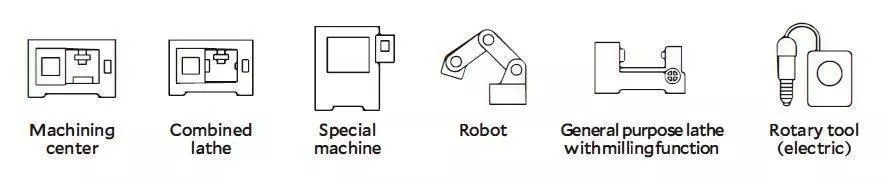

Applicable Equipment

The tool can be mounted on an equipment which can control the rotational speed. The tool must be rotated over 8000min-1.

deburring brush crosshole applicable equipment

Contact Kemet

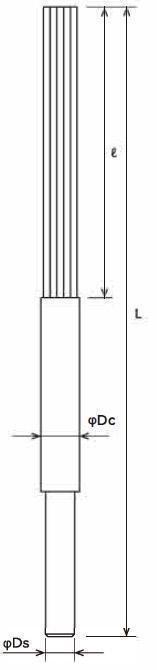

Brush (Colour) Product code Brush diameter (mm) Shaft diameter Dc(mm) Shank diameter Ds(mm) Bristle length (l) (mm) Overall length L (mm) Maximum rotational speed (min-1) Target hole
diameter
(mm)
A12(Red) CH-A12-1.5M 1.5 2.5 3 50 120 20000 3.5-5
CH-A12-3M-TL 3 4 3 50 120 14000 5-8
CH-A12-3L-TL 3 4 4 50 170 12000 5-8
CH-A12-5M-TL 5 6 6 50 120 14000 8- 10
CH-A12-5L-TL 5 6 6 50 170 12000 8- 10
CH-A12-7M-TL 7 8 6 50 120 14000 10-20
CH-A12-7L-TL 7 8 8 50 170 12000 10-20
CH-A12-11M 11 12 12 50 120 14000 14-20
CH-A12-11L 11 12 12 50 170 12000 14-20
A33(Blue) CH-A33-3M 3 4 3 60 130 14000 5-8
CH-A33-3L 3 4 4 60 180 12000 5-8
CH-A33-5M 5 6 6 60 130 14000 8-10
CH-A33-5L 5 6 6 60 180 12000 8-10
CH-A33-7M 7 8 6 60 130 14000 10-14
CH-A33-7L 7 8 8 60 180 12000 10-14
CH-A33-11M 11 12 12 60 130 14000 14-20
CH-A33-11L 11 12 12 60 180 12000 14-20

deburring brush crosshole sizes

Target burr size
Burr root thickness of 0.1mm or less (Burrs are easily bent with a fingernail)

target burr size

XEBEC Brush™ Crosshole Extra-Long Target burr size

Suitable for deburring, polishing and cutter mark removal of inner diameter and counterbored part exceeding 150mm in depth

Tool composition

Brush, collar and shank are separate items. (All special order items) Assemble brush to the shank with collar before use.

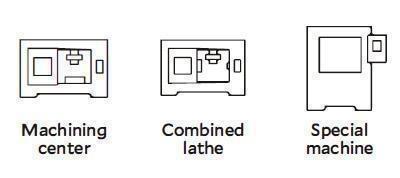

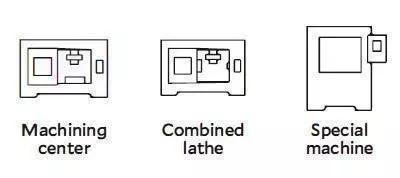

Applicable Equipment

The tool can be mounted on an equipment which can control the rotational speed. The tool must be rotated over 8000min-1.

deburring brush crosshole extra long applicable equipment

Brush (Colour) Product code Brush diameter (mm) Shank diameter Ds (mm) Overall length L (mm) Maximum rotational speed
(min-1)
A12 (Red) * 3 4 400 12000
* 5 6 400 12000
* 7 8 400 12000
* 11 12 400 12000
A33 (Blue) * 3 4 410 12000
* 5 6 410 12000
* 7 8 410 12000
* 11 12 410 12000

* This is a special order item. Please contact us for the details.

Target burr size
Burr root thickness of 0.1mm or less (Burrs are easily bent with a fingernail)

target burr size

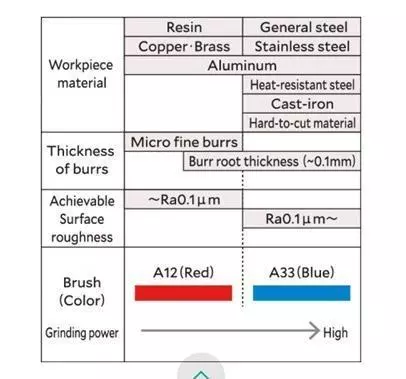

Which Brush do I need?

xebec brush crosshole which type

deburring brush crosshole sizes

XEBEC Brush™ Crosshole Extra Large

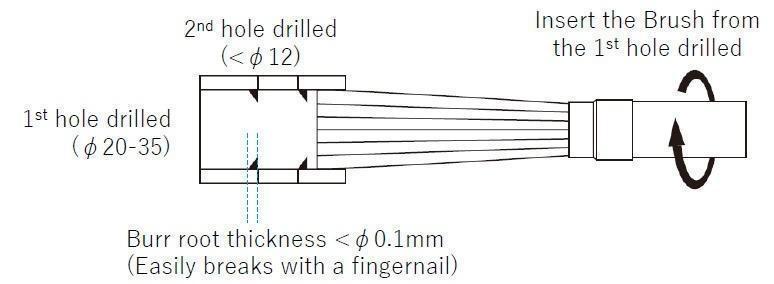

Extra Large size available to automate deburring of the inner diameter from φ20mm to φ35mm. High grinding power on the tip of the bristle as the bristle tips flare out when rotated due to centrifugal force and act on inner diameter. Used for removing burrs on a cross hole, removal of oxide layer, chips and foreign objects from the bottom of a hole and to polish the inner diameter.

Brush (Colour) Product Code Brush
diameter (mm)
Bristle
length (mm)
Depth of Shank inserted (mm) Maximum rotational speed (min-1) Target hole diameter (mm) Matching
Shank
A33 (Dark Blue) CH-A34-15 φ15 60 10 9000 φ20-25 CH-SH-6
CH-A34-20 φ20 60 16 9000 φ25-30 CH-SH-8
CH-A34-25 φ25 60 16 9000 φ30-35 CH-SH-8

Shank

Product Code Shank
diameter
Shank
length
Matching Brush
CH-SH-6 φ6mm 80mm CH-A34-15
CH-SH-8 φ8mm 86mm CH-A34-20, CH-A34-25

extra large crosshole brush case study

extra large crosshole brush

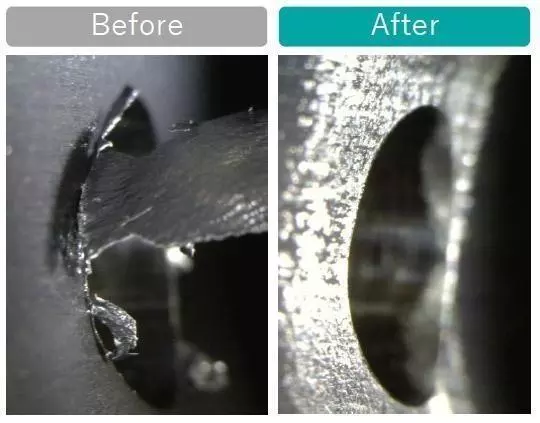

Case Study: Automotive / Deburring of hole edge

Tool Used: XEBEC CrossHole Deburring Tool Alumina Fiber Rod Type(CH-A12-5M)
RPM: 10,000min-1
Process Time: 2 sec/pc
Tool life: 1,600 pcs/tool

crosshole deburring of hole edge

Before Crosshole Deburring of Edge

before crosshole deburring of hole edge

After Crosshole Deburring of Edge

after crosshole deburring of hole edge

Case Study: Automotive / Dead-end hole deburring

Tool Used: XEBEC Cross-Hole Deburring Tool CH-A12-3M(Ø3) + XEBEC Floating Holder
RPM: 2,000 min-1
Tool pressure: 3.0kgf
Process time:2 sec/pcs

dead end hole deburring

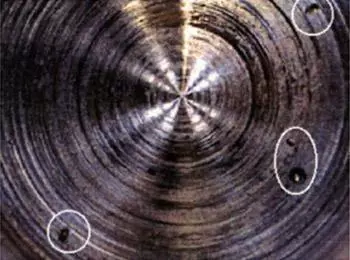

Before Dead-end hole deburring

before dead end hole deburring

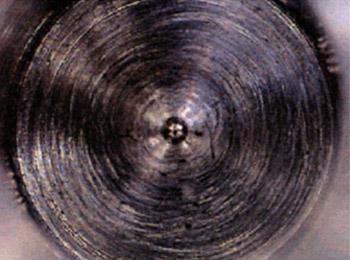

After Dead-end hole deburring

after dead end hole deburring

Hole Deburring Usage and Tips with the XEBEC Brush™ Crosshole

Refer to the chart and select Brush colour based on the workpiece material and burr root thickness.

  1. Insert the Brush while not in motion. * If you rotate the Brush outside the cylinder, the bristles may be damaged or scattered and may cause injury to an operator.
  2. Rotate the tool past the crosshole Consistent edge quality can be obtained by rotating the tool in both CW and CCW direction.
  3. Process while pulling the Brush back. Pulling the Brush back past the crossholes prevents burrs from being laid flat against the interior surface of the cylinder.
  4. Process while pushing the Brush forward.
  5. Stop the Brush rotation.
  6. Remove the Brush while it is at rest.

* XEBEC Brush has high grinding power on the tip. The Brush tip needs to be in contact with the processing area.

Processing conditions: Rotational speed

Recommended rotational speed is different depending on Brush diameter. See the diagrams below.

CH-A12-1.5M

Target hole dia.Ø3.5-5mm Recommended rotational speed: 9000-11000min-1

hole deburring CH-A12-1.5M

CH-A12-3M/3L

Target hole dia.Ø5-8mm Recommended rotational speed: 7000-10000min-1

hole deburring CH-A12-3M3L

CH-A12-5M/5L

Target hole dia.Ø8-10mm Recommended rotational speed: 8000-10000min-1

hole deburring CH-A12-5M5L

CH-A12-7M/7L

Target hole dia.Ø10-20mm Recommended rotational speed: 7000-9000min-1

hole deburring CH-A12-7M7L

CH-A12-11M/11L

Target hole dia.Ø14-20mm Recommended rotational speed: 6000-7500min-1

hole deburring CH-A12-11M11L

CH-A33-3M/3L

Target hole dia.Ø5-8mm Recommended rotational speed: 7500-9000min-1

hole deburring CH-A33-3M3L

CH-A33-5M/5L

Target hole dia.Ø8-10mm Recommended rotational speed: 7500-8000min-1

hole deburring CH-A33-5M5L

CH-A33-7M/7L

Target hole dia.Ø10-14mm Recommended rotational speed: 6500-8000min-1

hole deburring CH-A33-7M7L

CH-A33-11M/11L

Target hole dia.Ø14-20mm Recommended rotational speed: 6500-8000min-1

hole deburring CH-A33-11M11L

hole deburring recommended rotational speed Recommended rotational speed

hole deburring recommended rotational speed when worn down Rotational speed when the Brush is worn down 10mm

If burrs remain

  1. Increase rotational speed to the maximum in increments of 1000 min-1
  2. Increase the number of passes

If the workpiece cannot be deburred even by the above-mentioned procedures, the machining condition may be incorrect or the burr size is too large. Change the Brush with higher grinding power. The grinding power of the Brush : Blue> Red

To extend tool life, decrease the rotational speed in 10% increments or increase the feed rate in 10% increments

* Tool life significantly varies depending on processing conditions, burr conditions (size and direction) and workpiece material.

REFERENCE DATA: TOOL LIFE

Material: Carbon Steel S45C
Process details: Cross hole deburring after drilling process
Burr root thickness: 0.1mm
Hole diameter :
Main bore Ø10mm
Cross hole Ø5mm
Tool: CH-A12-SM
Rotational speed: 10000min-1
Feed rate: 300mm/min
Used length: 10mm out of 50mm
Tool life : 4500 holes

cross hole deburring after drilling
