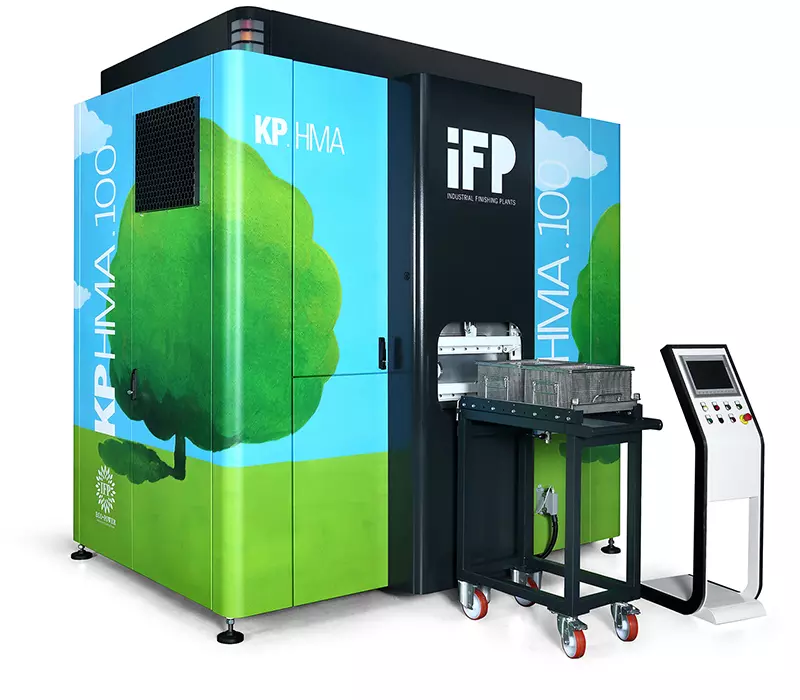

Vacuum Solvent Cleaning machines
99% Recovery of material waste, reduction of management costs, high economic benefits, sustainability and innovation
Used mainly with modified alcohols. Benefits of the machines are:
- Minimal loss of solvent significantly reducing process cost and environmental impact
- Distillation, separation, and filtration of contaminants allows oils to be reused in machining processes and swarf/particles to be reused or economically disposed of.
- Uses modified alcohols with a flash point of more than 60°C under vacuum, so machines do not have to be manufactured to ATEX approved rates, reducing build cost.
- Ethernet connection providing online diagnosis of technical issues and predictive maintenance.
- Cleans component areas that are hard to reach with Aqueous/HFE solvents, including blind holes and tubes. (Surface tension: Modified alcohols 26.1 mN/m vs Water 72 mN/m).
The latest generation KP modified alcohol washing machines, operate in a complete vacuum treatment cycle in all phases, ensuring excellent cleaning of finished products from wastage and oily substances, without releasing harmful substances into the environment. The systems use a combination of spray, basket rotation, aqueous cleaning, modified alcohols hydrocarbons, hydrocarbons HFE and ultrasounds.
All KP products guarantee a drastic reduction in consumption by halving the processing cycles thus obtaining a perfect degree of cleaning thanks to the essential contribution made by the integrated ultrasound system and the use of “universal” washing liquids with low environmental impact. The washing cycle may vary according to the pieces to be treated thanks to the supplied software equipped with a microchip which allows the system to manage multiple loading stations with relative washing and finishing cycles.
The machines allow you to work with all types of materials including AVP, AVZ, PR 80, 16CrNi4, 16Cr- Ni4Pb, 18CrMo5, 42CrMS4, Aluminium 11s, Brass, Stainless steel Aisi 303, ETG 88, ETG 100. In addition to the most common materials, PVC, Teflon, Ergal, as well as other alloys of copper, bronze, and cast-iron steels.
The ideal applications are recommended according to the quantities to be treated, the quantity of contamination, the size of the semi-finished products. Kleen Power Technology is appreciated in the fields of precision mechanics, automotive, heat treatment, oleodynamic components, springs, moulded components, fashion accessories, jewelry, watches, components for furniture, medical, dental, cookware, cutlery, and electronics.
Full vacuum functioning - continuous filtration of washing liquid - continuous distillation continuous monitoring of operation conditions - Easy access for maintenance
Complete stainless steel construction - vacuum holding systems - spraying pumps –Vacuum pumps - Cryogenic abatement system - Chip filter - Double washing liquid tank - Touch screen operating panel - Remote assistance via Internet
Ultrasound transducers (up to five transducers per system, where it is necessary to remove obstinate material, such as polishing paste made more resistant by cooking and drying, in this case, the hot detergent alone is not enough.) - Additional filtrations
Energy Saving & Low Operating Costs
Distillation and the continuous filtration of modified alcohols and hydrocarbons used for washing and for the finishing of metal components that need treatment, with the aid of filters that allow the complete separation of the emulsions from the water with continuous automatic discharge, allows the total recovery of the dried and deodorised metal fillings already in the filter, and the recovery of 99% of the emulsifying oils present in the product that needs treatment.
The reuse of perfectly clean metal scraps and emulsifying oils, both recovered during the washing cycles of the washing machines, are put back in the production chain with remarkable economic advantages for the company and ecological for the environment including the working one, thus corresponding to the virtuous circular economic model.
Manual or Automatic Loading Platforms*
The cleaning machines can be equipped with manual loading platform with roller conveyor which allows coplanar movement that facilitates the manual loading and unloading.
Certain models can be equipped with an automatic tray and lid which allows greater control in the movement of the baskets during the washing cycles. All automation operations connected to the functions of the washing machine, are controlled by the management software specifically programmed by the technical office.
KP.30 Vacuum Solvent Cleaner
MODIFIED ALCOHOLS . HFE HYDROCARBONS
The KP.30 is a compact washing machine that guarantees production efficiency with low energy consumption.
The “green technology” that distinguishes the entire KP Kleen Power Line, allows the KP.30 washing machines to fit into a small artisan workshop or space and due to the absence of spills or harmful exhalations, almost no maintenance and its silence are the conditions that make the working environment comfortable, guaranteeing maximum safety for the operator.
Thanks to a Simatic HMI touch panel integrated on the washing machine, all the machine service operations can be carried out: the management of the washing cycles entirely under vacuum, the control functions of the individual components, the remote production control and the maintenance alarm, are all operations carried out by the management software and on request, customised by the technical office.
KP.30 can be equipped with a washing chamber, able to accept an H30 CM basket. Normally the washing chamber is suitable to accept H20 baskets.
| Model | Load Dimensions (mm) | Load Weight (kg) | Dimensions (mm) | Cycles (hours) | Loading Platform* |
|---|---|---|---|---|---|
| KP 30 | 200 x 300 x 150h | 30 | 1300 x 2000 x 2000h | 4 - 6 | Manual |
KP.EASY Vacuum Solvent Cleaner
MODIFIED ALCOHOLS . HYDROCARBONS
Entry level product with advantages that can be summarised as follows:
- Continuous filtration and distillation of the washing liquid
- Continuous separation of the emulsion with automatic water drain
- Complete separation of the oil from the washing liquid, with continuous automatic discharge
- Continuous recording of operational data
- Remote connection via the Internet
- Easy accessibility for maintenance
KP.EASY is equipped with a manual loading platform which can be shifted with a roller conveyor, the manual loading platform allows the management of 2+2 baskets for the discharge of the washed product.
| Model | Load Dimensions (mm) | Load Weight (kg) | Dimensions (mm) | Cycles (hours) | Loading Platform* |
|---|---|---|---|---|---|
| KP.EASY 50 | 300 x 450 x 200h | 50 | 1600 x 1600 x 2400h | 3 - 4 | Manual |
| KP.EASY 100 | 450 x 600 x 200h | 100 | 1800 x 2000 x 2500h | 3 - 4 | Manual |
| KP.EASY 150 | 450 x 900 x 200h | 150 | 2900 x 2050 x 3200h | 4 - 8 | Automatic |
| KP.EASY 200 | 450 x 1200 x 200h | 200 | 3250 x 2300 x 3200h | 4 - 8 | Automatic |

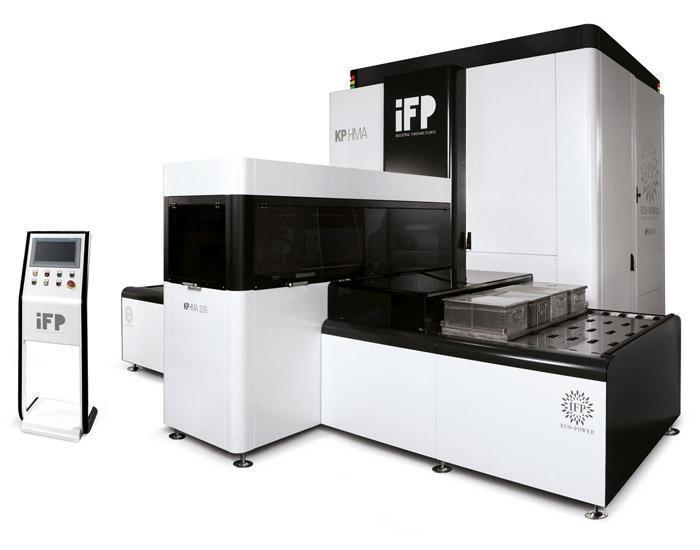

KP.HMA Vacuum Solvent Cleaner
MODIFIED ALCOHOLS . HYDROCARBONS
KP.HMA line is able to meet high production demands and large quantities of contaminants.
Thanks to the treatment cycle with modified alcohol entirely under vacuum up to 1 millibar and the rich standard and optional equipment, the KP.HMA line expresses the maximum that metal finishing technology can express.
KP.HMA washing machine can change its configuration over time thanks to its structural modularity, it can integrate the third tank for specific washing liquids, a group for the application of the protective agent, additional filtration groups and can be integrated with one or more generators with relative ultrasound transducers.
| Model | Load Dimensions (mm) | Load Weight (kg) | Dimensions (mm) | Cycles (hours) | Loading Platform* |
|---|---|---|---|---|---|
| KP.HMA 50 | 300 x 450 x 200h | 50 | 2050 x 2000 x 3000h | 4 - 8 | Manual |
| KP.HMA 100 | 450 x 600 x 200h | 100 | 2900 x 1900 x 3000h | 4 - 8 | Manual or Automatic |
| KP.HMA 150 | 450 x 900 x 200h | 150 | 3250 x 2300 x 3200h | 4 - 8 | Automatic |
| KP.HMA 200 | 450 x 1200 x 200h | 200 | 3250 x 2300 x 3200h | 4 - 8 | Automatic |

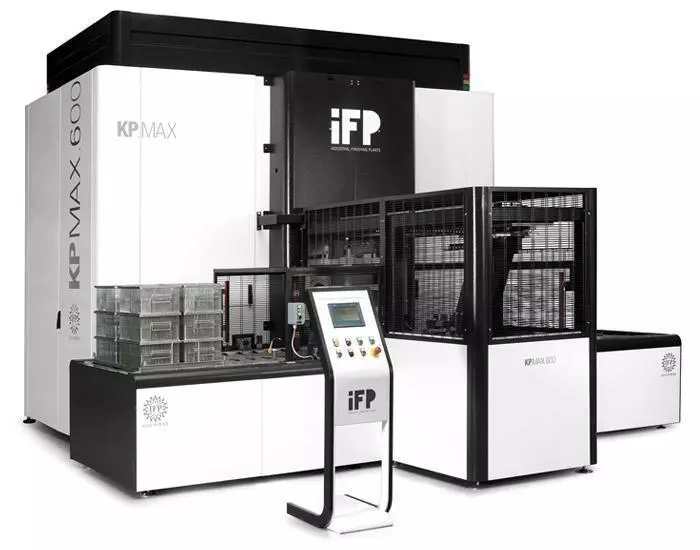

KP.MAX Vacuum Solvent Cleaner
MODIFIED ALCOHOLS . HYDROCARBONS
The largest washing machine in the KP KleenPower family, the large washing chamber allows the perfect treatment for very high production volumes or single loads of large dimensions.
The KP.MAX washing machines operate entirely under vacuum and thanks to the rich standard and optional equipment, they satisfy the needs of large productions in a relatively short time.
In addition to the standard versions, IFP Europe develops a “dedicated series” built and shaped so that it can satisfy any problem of high contamination in particularly complex cases in compliance with energy and eco-sustainable standards.
| Model | Load Dimensions (mm) | Load Weight (kg) | Dimensions (mm) | Cycles (hours) | Loading Platform* |
|---|---|---|---|---|---|
| KP.MAX 400 | 450 x 1200 x 400h | 400 | 3800 x 2700 x 3450h | 3 - 6 | Manual or Automatic |
| KP.MAX 600 | 600 x 1000 x 600h | 600 | 4050 x 2700 x 3700h | 3 - 6 | Manual or Automatic |
| KP.MAX 800 | 800 x 1200 x 800h | 800 | 4500 x 2700 x 3750h | 3 - 6 | Manual or Automatic |

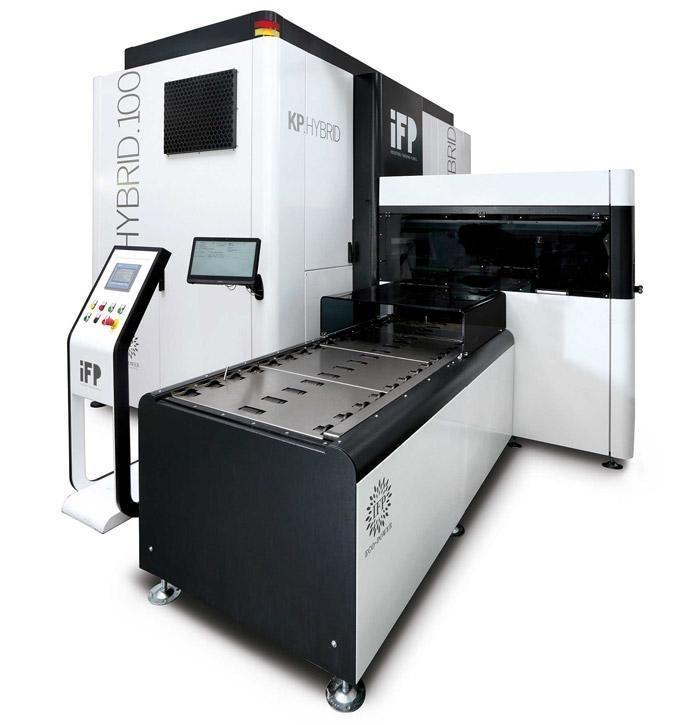

KP.HYBRID Vacuum Solvent Cleaner
MODIFIED ALCOHOLS . AQUEOUS DETERGENT SOLUTIONS
KP.HYBRID is a special washing machine, thanks to its 3 tanks it can keep in time high productive performance with low management costs.
The entire KP.HYBRID (30 - 50 - 100 - 150 - 200) covers all production needs in terms of quality products to be treated, from the small KP.HYBRID 30, compact but very useful in results obtained, the KP.HYBRID 200 the admiral in the IFP Europe house, a large range of washing machines excellent for deeper treatments, recommended for washing, decontamination and drying of components obtained from moulds with the presence of blind holes or metal elements with a strong presence of contaminants.
WHY HYBRID?
The peculiarity of KP.HYBRID is to have a double tank modified alcohol and a third for the storage of aqueous detergent solution, this configuration facilitates the routine maintenance phase avoiding machine downtime, which causes obvious economic and operational disadvantages.
The KP.HYBRID version, the combined use of modified alcohol and aqueous detergent solution in a vacuum allows for perfect cleaning of both the organic (fats, oils) and inorganic (emulsions, salts) contaminants.
| Model | Load Dimensions (mm) | Load Weight (kg) | Dimensions (mm) | Cycles (hours) | Loading Platform* |
|---|---|---|---|---|---|
| KP.HYBRID 30 | 300 x 450 x 200h | 30 | 2500 x 2000 x 3000h | 4 - 8 | Manual |
| KP.HYBRID 50 | 300 x 450 x 200h | 50 | 2500 x 2000 x 3000h | 4 - 8 | Manual |
| KP.HYBRID 100 | 450 x 600 x 200h | 100 | 3000 x 2150 x 3000h | 4 - 8 | Automatic |
| KP.HYBRID 150 | 450 x 900 x 200h | 150 | 4300 x 2300 x 3300h | 4 - 8 | Automatic |
| KP.HYBRID 200 | 450 x 1200 x 200h | 200 | 4300 x 2300 x 3300h | 4 - 8 | Automatic |

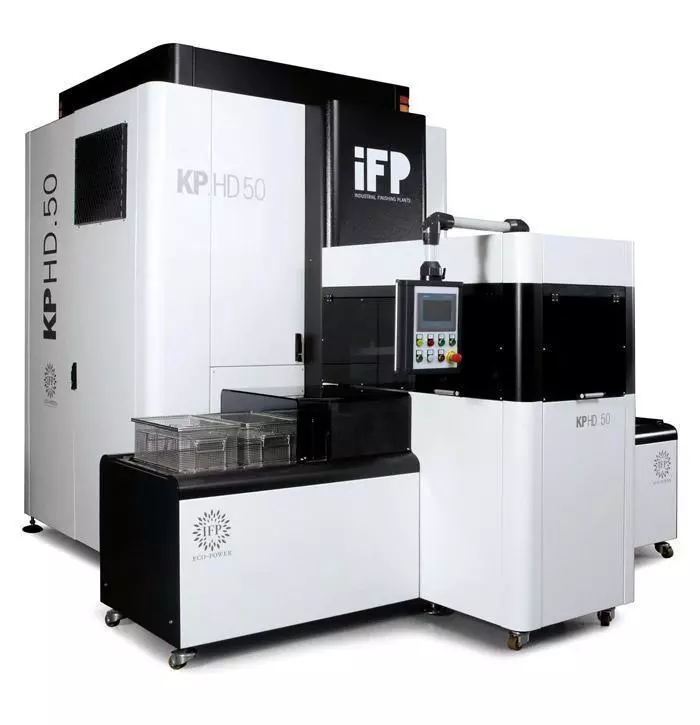

KP.HD Vacuum Solvent Cleaner
MODIFIED ALCOHOLS . HYDROCARBONS
KD.HD is the best technology for maximum results, safety, efficiency, and economic versatility.
The configuration of the KP.HD washing machine involves the use of components that guarantee high performance in the washing cycles, such as vacuum pumps, the high-performance multi-nozzle spraying system and for those who request it, Ultrasound technology. The right use of this technology allows for obtaining an effective removal of contaminating elements such as water, polishing and lapping pastes, oils, emulsions, particles of various compositions and fingerprints.
The excellent cleaning and decontamination and drying allow obtaining perfectly clean metal surfaces, guaranteeing surprising results in the subsequent processing phases such as galvanization, PDV treatment, powder coating, welding, coating and glueing.
KP.HD proves to be a winner for those who work on very particular and delicate products such as the fashion sector, taps, sintered items, precision turned parts for watches, jewellery and the medical field.
| Model | Load Dimensions (mm) | Load Weight (kg) | Dimensions (mm) | Cycles (hours) | Loading Platform* |
|---|---|---|---|---|---|
| KP.HD 50 | 300 x 450 x 270h | 50 | 2200 x 2200 x 3000h | 4 - 8 | Manual |
| KP.HD 100 | 450 x 600 x 270h | 100 | 3200 x 1900 x 3000h | 4 - 8 | Manual or Automatic |
| KP.HD 150 | 450 x 900 x 270h | 150 | 3600 x 2500 x 3200h | 4 - 8 | Automatic |
| KP.HD 200 | 450 x 1200 x 270h | 200 | 4000 x 2500 x 3200h | 4 - 8 | Automatic |
