Ultrasonic Cleaners for Light-Industrial, Dental, Jewellery and much more
The K-Sonic Benchtop ultrasonic cleaners are available in 3 sizes the K-sonic 6, 12 & 30, catering for all your smaller component cleaning requirements. All tanks can be heated, starting at 30°C and increasing by 5 °C increments up to a maximum temperature of 80°C, an LED display light indicating when the set temperature is achieved. The K-sonic features a continuous ON mode, which enables continuous running for up to 6 hours, as well as individual 1-5 minutes, increasing to 5 minutes increments after up to a 30-minute cycle time. A small audio buzz alerts the operator when the cleaning cycle ends.
The tank, basket and housing are fabricated from stainless steel, the cleaner standing on four non-slip feet to ensure any pooling water is kept away from the electronics. A waste valve at the back is controlled by a side-mounted handle. The K-sonic benchtop cleaners have practical carry handles and the lid can be also used as a drip tray for loading and unloading.
Operating at 37Khz the switchable function modes ensure the hardware performance meets your process requirements, Eco mode is for cleaning sensitive materials. The ultrasonic cavitation operates with less power to minimise cavitation damage on soft materials whilst also reducing the noise level and mechanical impact on the tank, thus increasing the life of the tub. Dynamic mode optimises the sound filed distribution ensuring peak performance for stubborn hard-to-remove contamination.
The new K-Sonic basket design features a punched pattern on the base and side walls enabling the operator to set up a hoist of different fixturing options by using the available accessory ensuring a solution to challenging fixture requirements.

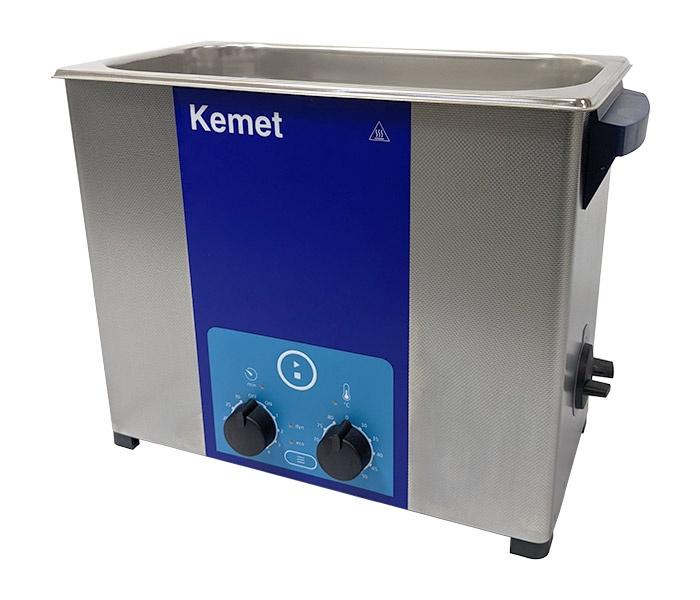

K-Sonic 6 Ultrasonic Cleaner
| Technical information | K-Sonic 6 | K-Sonic 12 | K-Sonic 30 |
|---|---|---|---|
| Tank total volume (l) | 5.9 | 12.9 | 27.5 |
| Recommended tank operating capacity (l) | 4.3 | 10 | 22 |
| Ultrasonic power effective (W) | 150 | 200 | 300 |
| Heating power (W) | 400 | 800 | 1200 |
| Unit ext. dim. W/D/H (mm) | 370 x 225 x 280 | 380 x 315 x 330 | 575 x 375 x 330 |
| Tank int. dim. W/D/H (mm) | 280 x 130 x 149 | 275 x 215 x 199 | 475 x 270 x 199 |
| Basket int. dim. W/D/H (mm) | 255 x 105 x 95 | 250 x 195 x 135 | 450 x 255 x 135 |
| Weight (kg) | 5.1 | 7.5 | 11.0 |
| Voltage | 230V-single phase-50Hz or 110V-single phase-60Hz | ||
| Product Code | 359482K | 359484K | 359486K |

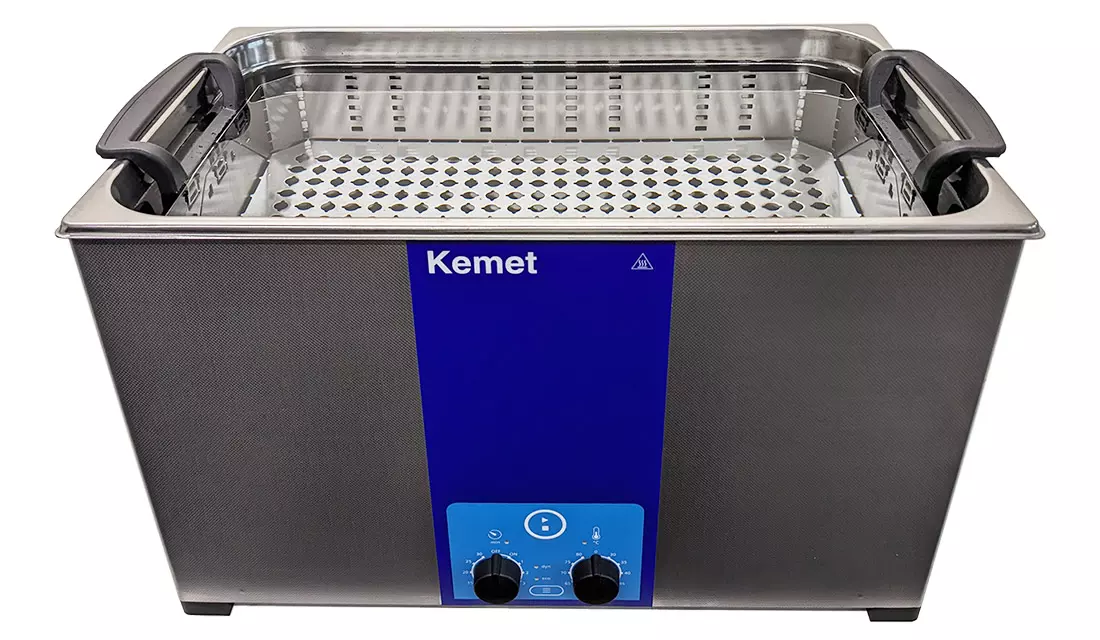

K-Sonic 30 Ultrasonic Cleaner

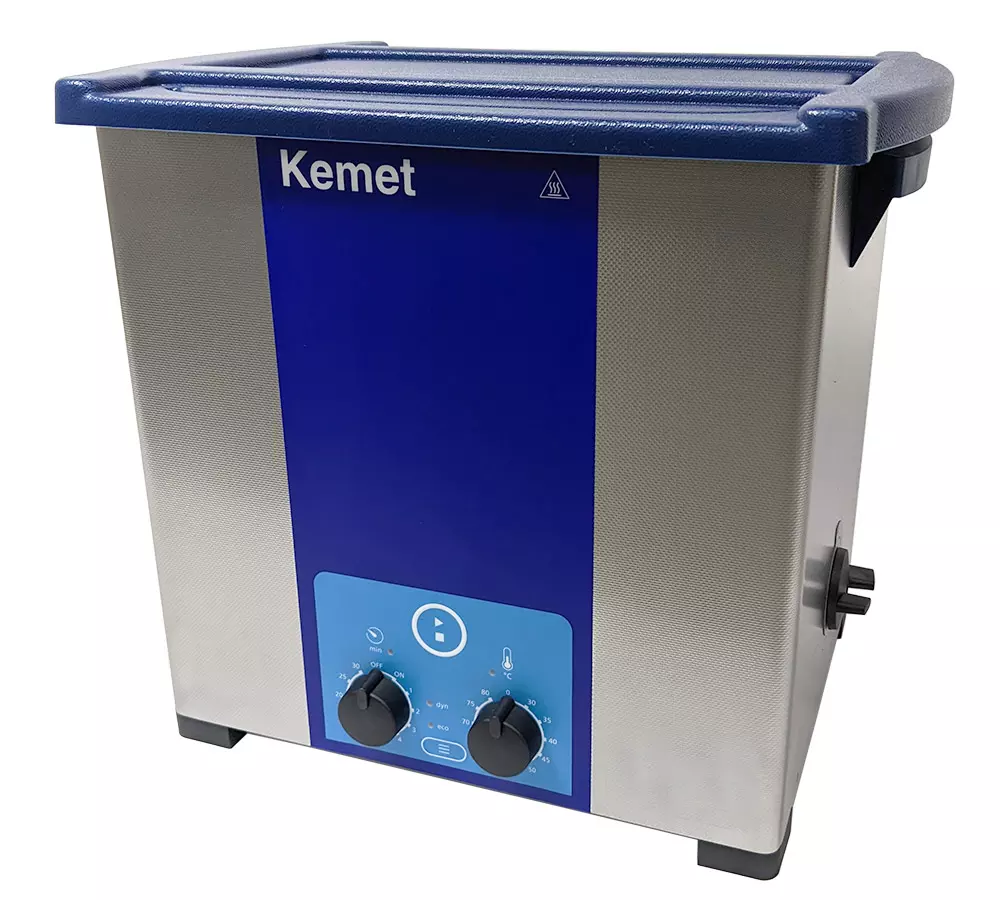

K-Sonic 12 Ultrasonic Cleaner
Accessories for the K-Sonic Ultrasonic Cleaners
| Accessories |  |  | |||
|---|---|---|---|---|---|

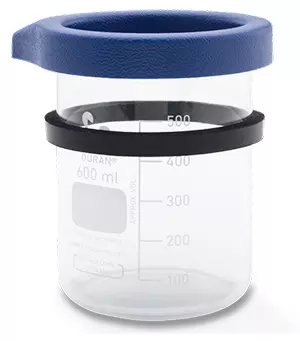

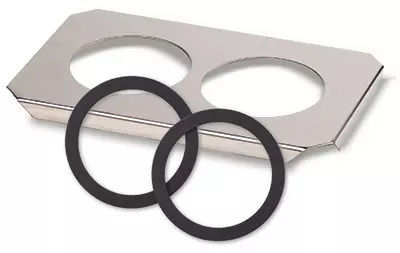

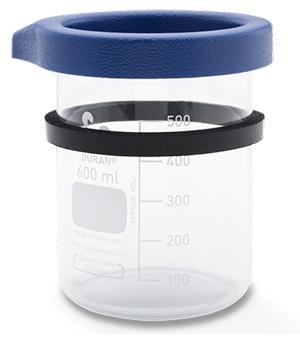

| Glass Beaker (Can be placed directly in a cleaning basket or in combination with an insert cover be hung in the ultrasonic tank) | Insert cover to be placed on the ultrasonic cleaning device | ||||
| 600 ml | 150 ml (without plastic cover) | ||||
| Suitable for | Placed in any basket/tank, 359093, 359099 | Placed in any basket/tank | K-Sonic 12, 359092 | K-Sonic 6 & 30, 359092 | |
| Product Code | 359092 | 359097 | 359093 | 359099 | |
| Dimensions | External (mm) | (Dia / H / D) | (W / D / H) | ||
| (Glass with cover) 100 / 155 / 110 | 80 / 85 / 95 | 270 / 170 / 15 | 330 / 180 / 15 | ||
| Internal (mm) | ( Dia / H) 75 / 145 | ( Dia / H) 55 / 60 | N/A | N/A | |
| Cover hole Dia (mm) | N/A | N/A | 95 | ||
| External, rubber ring Dia (mm) | 100 | 70 | 100 | ||
Basket Attachments for the K-Sonic Ultrasonic Cleaners
The punched pattern on the baskets base and side walls, complement an assortment of versatile pins. The perforations are positioned to enable optimum cavitation access to the items being cleaned. Items ranging from large industrial components to delicate laboratory glassware, tiny watch parts, and intricate pieces of jewellery, can be individually secured. Using this smart arrangement increases the potential number of components that can be cleaned in one load of the basket and improve productivity levels through the efficient use of water, cleaning agents. Energy and time.
| Basket Attachment |  |  |  |  |  |  |  |  | |
|---|---|---|---|---|---|---|---|---|---|
| Product Code | 359030 | 359031 | 359032 | 359033 | 359034 | 359035 | 359036 | 359037 | |
| Ext. dimension Dia x H (mm) | 25 x 55 | 25 x 30 | 85 x 65 | 25 x 55 | 40 x 75 | 55 x 45 | 75 x 45 | 30 x 35 | 50 x 40 |
| int. dimension Dia x H (mm) | 5 x 40 | 4 x 15 | 50 x 35 | 15 x 40 | 30 x 65 | 0.35 x 25 | 25 x 25 | 20 x 20 | 40 x 25 |
| Outer overlay Dia(mm) | - | - | - | - | - | 15 | 40 | - | - |
| Pcs. | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Material | Plastic | ||||||||
K-Sonic Ultrasonic Cleaner basket
| Basket Attachment |  |  |  |  | |||||
|---|---|---|---|---|---|---|---|---|---|

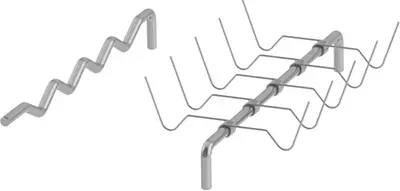

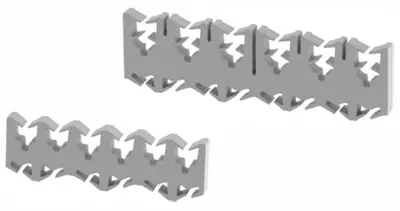

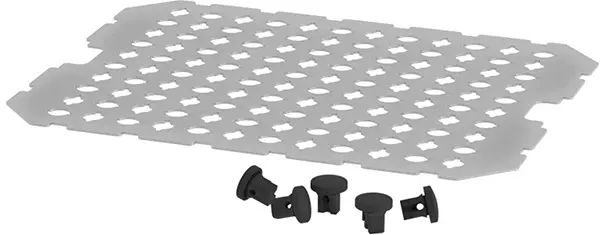

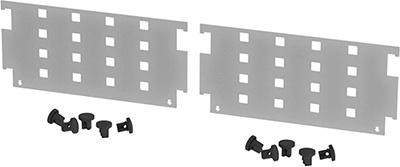

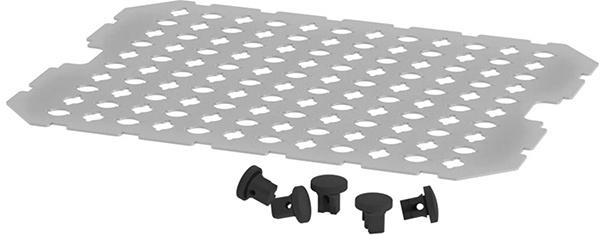

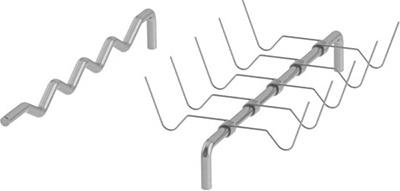

| PARTITION For vertical division of the modular basket | SECOND LEVEL For horizontal division of the modular basket | SIDE & FLOOR CHAMBER For holding various instruments, containers and workpieces | HOOK SHAFT HOLDER Positioning aid | ||||||
| Product Code | 359038 | 359039 | 359040 | 359041 | 359042 | 359043 | 359044 | 359045 | 359046 |
| Dimensions WxDxH (mm) | 105 x 50 x 1 | 105 x 90 x 1 | 200 x 60 x 1 | 255 x 130 x 1 | 255 x 105 x 1 | 250 x 195 x 1 | 105 x 10 x 35 | 150 x 10 x 45 | 105 x 3 x 15 (Holder shaft) |
| 110 x 55 x 25 (Holder hooks) | |||||||||
| For K-Sonic models | 6, 12, 30 | 6, 12, 30 | 12 | 30 | 6 | 12, 30 | 6, 12, 30 | 6, 12, 30 | 6, 12, 30 |
| Pcs. | 2 | 2 | 2 | 2 | 1 | 1 | 10 | 5 | 1 holder shaft, 1 holder hook |
| Silicone holder per set | 10 | 10 | 10 | 10 | 5 | 10 | - | - | 5 |
| Material | Stainless steel | Stainless steel | Silicone | Plastic-coated Stainless steel | |||||
