Valve Grinding Consumables

Valve Grinding Discs

The efficiency of the machine relies on the grinding discs used. The wrong discs for the wrong purpose will either slow you down drastically or in worst case, damage the valve. The grinding discs are specially designed for valve grinding. They have been proven in our facilities and out on the field. To make you sure that you get the best out of your machine we have a wide selection of grinding discs all the way from 40 grit down to 3 microns with diameter sizes from 17 - 70mm.

Product	Grit or Micron	Dimensions (sheets)
Ceramix Grinding Discs	40 grit	300x200mm
	80 grit	300x200mm
	120 grit	300x200mm
	180 grit	300x200mm
	240 grit	300x200mm
3M Grinding Discs (For micron finishing)	P80	300x350mm
	100 micron	300x350mm
	80 micron	300x350mm
	60 micron	300x350mm
	40 micron	300x350mm
	30 micron	300x350mm
	15 micron	300x350mm
	9 micron	300x350mm
	3 micron	300x350mm

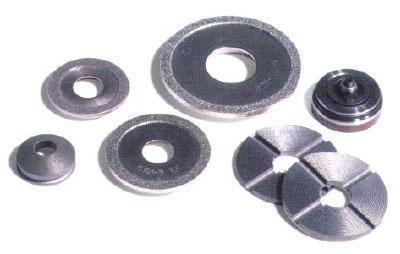

Diamond Grinding Discs	60 grit	230x280mm
	120 grit	230x280mm
	240 grit	230x280mm

Product	Grit or Micron	Diameter (mm)
Product	Grit or Micron	17	20	25	28	32	35	40	50	105
Ceramix Grinding Discs	40 grit	362366	362369	362354	362342	*	362345	362346	362349	*
	80 grit	362367	362370	362356	362343	*	362339	362347	362350	*
	120 grit	362368	362371	362355	362344	*	362310	362348	362351	*
	180 grit	*	*	*	*	*	362311	*	*	*
	240 grit	*	*	*	*	*	*	*	*	*
3M Grinding Discs (For micron finishing)	P80	*	*	*	*	*	*	*	*	*
	100 micron	*	362340	*	*	*	*	*	*	*
	80 micron	*	*	*	*	*	*	*	*	*
	60 micron	*	362841	*	*	*	*	*	*	*
	40 micron	*	*	*	*	*	*	*	*	*
	30 micron	*	*	*	*	*	*	*	*	*
	15 micron	*	*	362376	*	*	*	*	*	*
	9 micron	*	*	362377	*	*	*	*	*	*
	3 micron	*	*	362375	*	*	*	*	*	*
Diamond Grinding Discs	60 grit	*	*	*	*	*	*	*	*	*
	120 grit	*	*	*	*	*	362338	*	*	*
	240 grit	*	*	*	*	*	*	*	*	*

Aluminium Oxide Paste

Specially formulated containing Aluminium Oxide Abrasive. It is suitable for a wide range of lapping/polishing operations, and it is particularly effective when used for smoothing soft metals such as brass, aluminium and copper. Sabre Pastes are also available based on both silicon carbide and boron carbide abrasives. Available in 20g syringes.

Valve Grinding Diamond Paste

Kemet offer a huge range of Diamond Pastes for rapid stock removal, superfine surface finish, lapping and pre-polishing. Micron sizes ranging from 1/10 to 90, soluble in either oil (Type L), water (Type W) or both (Type KD). High thermal stability of the chemical carrier ensures that Kemet Diamond Compound resists frictional heat, remains stable, and keeps its suspension properties under operating conditions. For our full range, please view our website.

Valve Grinding Lapping Paste

Kemet manufacture a wide range of abrasive lapping pastes. Our range of Silicon Carbide and Aluminium Oxide pastes have many applications but are particularly suited to the lapping of mechanical seals and valve seats. The pastes are water soluble and safe to use.

Product	Type	Micron	FEPA Grade	Pastes
Product	Type	Micron	FEPA Grade	1kg
Green Silicon Carbide	Fine	3	1200	361547
	Fine	5	1000	361552
	Medium	9	600	361514
	Medium	17	400	361551
	Coarse	23	360	361548
		30	320	361558
		37	280	361538
Black Silicon Carbide	Coarse	75	180	361549
Black Silicon Carbide	Coarse	109	120	361689
White Aluminium Oxide	Fine	3	1200	361544
	Fine	5	1000	361624
	Medium	7	800	361545
		9	600	361543
		13	500	361546
	Coarse	23	360	361542
