Classic Diprofil Machines

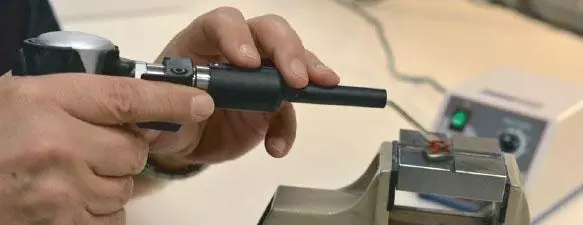

The Classic polishing/filing machines, which have been the preferred choice for tool- and mould-makers for more than 60 years, are now available in Mark II editions incorporating a new tool-holder to improve ergonomics and flexibility. The Classic machine with its rigid and ergonomic design facilitates any filing, lapping, honing or polishing application. With its reciprocating (back and forth) movement the Classic machines are an excellent alternative and compliment to rotary hand-pieces.

classic diprofil filing polishing machines

Technical Data for Classic Diprofil Machines

  • Speed (maximum): 8.000 strokes/min.
  • Speed (recommended): 5.000 - 6.000 strokes/min
  • Stroke length: 0 - 6 mm.
  • Stroke length (recommended): 0.5 - 3 mm.
  • Tool holder: Ø 6.4 mm. (suitable for tool shanks Ø 2 - Ø 6.4 mm)
  • Weight of inserted tool: Maximum: 26 g. Recommended: 1-15 g.
  • Applied feed force: 2-12 N (Depending on inserted tool type and dimension.)
  • Noise level: Not exceeding 70 dB(A) at 7.000 strokes/min. According to ISO 15744.

Contact us

Name
Email
Company Name
Town / City
Country
Telephone
Product of interest?
Spam prevention
captcha
Reload


Flexible-shaft driven machine

These models are driven by an electrical motor with speed control and a flexible shaft with slip-joint (European standard) or ball-joint connection (US standard) e.g. Diprofil type DSE-47. Corresponding motors of other brands may also be used.

  • Weight: Approx. 575 g.
ModelCode
FPK/R 331018
FPH/R Square Hole 332065
FPS/R Key hole 331033
classic diprofil Flexible-shaft driven machine

Air Driven Machines

This model is driven by compressed and oil mist lubricated air. PLEASE NOTE! The built-in air-motor may be damaged, if operated with un-lubricated air. The Diprofil quick-coupling HSL-M and fog lubrication unit MFB should be used for connection to your compressed air system. PLEASE NOTE! Protect the air inlet from dust and dirt, when not in operation.

  • Oil consumption: Minimum 30mm3/min at maximum speed (about 2 drops/min.)
  • Air pressure: 4bar (58psi).
  • Air consumption: Approx. 65 l/min at 8.000 strokes/min.
  • Weight: Approx. 740g.
ModelCode
FPL/R 331008
classic diprofil Air Driven Machines

Micro Motor Connections for NSK (Espert), ENESKA 4-1, EMax Evolution, ENESKA 3-1, 3-2

These models should be driven by motors with low strokes/min and high torque only. Exceptions can be made for motors with high torque from very low strokes/min, as e.g. Diprofil motor HPM-BL1 brushless motor for Power Unit TPU-20 or corresponding power unit. Output: BL DC 0-32V or DC 0-32V.

  • Weight: Approx. 560 g. (without micro motor).
ModelCode
FPT/ER 331036
FPT/NR 332066

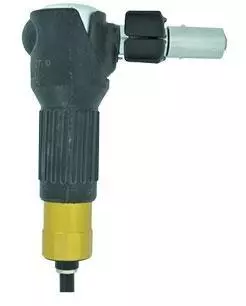

diprofil classic Micro Motor Driven Machines

Micro Motor Driven Machines

These models are driven by a built-in micro-motor, which is connected to, and controlled by, the DIPROFIL DPU-3, TPU-20 or corresponding power unit. Output: DC 0-32V.

  • Weight: 715 g.
ModelCode
FPM/R 331011
FPM/ERJ 332067
diprofi classic Micro Motor Driven Machines
