Diprofil Rotary Hand Piece

Rotary Hand-piece - C-HPM-B1

Micro-motor driven high speed rotary hand-piece with carbon brush motor for use together with power unit DPU-3 or twin power unit TPU-20. Features a quick change design for both the collet and the tool and is supplied with 3,0 mm collet. Optional 2,35 mm collet available.

Technical data

  • Speed: max. 38.000 rpm
  • Consumed power: 100 W
  • Torque: 4,0N cm
  • Weight: 285 g
  • Dimensions: L159 x Ø29,5 mm
  • Noise: < 70 db(A) at 38.000 rpm
  • Vibrations: < 2,5 m/s²

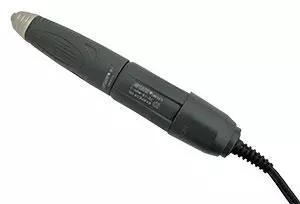

Rotary Hand-piece

Brushless Rotary Hand-piece - C-HPM-BL1

Micro-motor driven rotary hand-piece with brushless motor for use together with twin power unit TPU-20. Features a quick change design for both the collet and the tool and is supplied with 3,0 mm collet. Optional 2,35 mm collet available.

Technical data

  • Speed: max. 40.000 rpm
  • Consumed power: max. 230 W
  • Torque: 8,5N cm
  • Weight: 350 g
  • Dimensions: L159 x Ø27 mm
  • Noise: < 70 db(A) at 40.000 rpm
  • Vibrations: < 2,5 m/s²

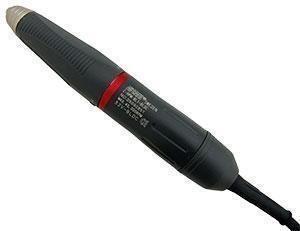

Brushless Rotary Hand-piece

Brushless Rotary Hand-piece - C-HPM-BL2

Micro-motor driven high speed rotary hand-piece with brushless motor for use together with twin power unit TPU-20. Features a quick change design for both the collet and the tool and is supplied with 3,0 mm collet. Optional 2,35 mm collet available.

Technical data

  • Speed: max. 50.000 rpm
  • Consumed power: max. 230 W
  • Torque: 7,6N cm
  • Weight: 350 g
  • Dimensions: L159 x Ø27 mm
  • Noise: < 70 db(A) at 50.000 rpm
  • Vibrations: < 2,5 m/s²
Brushless Rotary Hand-piece

Power unit – rotary hand-piece Set

Diprofil DPU-SET-S Rotary Micromotor System

This affordable rotary micro motor system performs a wide range of grinding, deburring and polishing operations. The system consists of a Hand piece, Controller and Foot rheostat. The lightweight hand piece has variable speed up to 38,000 rpm and is supplied with a 3mm quick release collet. Speed and direction of rotation is adjusted by a compact controller, which is switchable for 110/220 volt. If preferred the speed can be controlled by the rheostat Foot control which is easily connected to the controller. The whole system is also compatible with the range of Gesswein Power Polishing hand pieces available from Kemet.

Specifications:

Hand piece, 150mm long x 30mm dia. (tapers to 12mm dia. at nose). Weight 300 grams. Controller, 115mm wide x 146mm depth x 95mm high. Weight 1.4 Kg.

Description:Code:
DPU-SET-S with 3mm collet. 332034
Replacement 3mm collet 332035
Optional 3.175mm (1/8”) collet 332037
Optional 2.35mm (3/32”) collet 332036
