Air Driven Accessories, Tool Holder and Protective Finger Sleeves

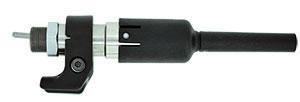

Tool Holder

Possible to use very long tools without the need for putting your fingers on moving tools and/or machine parts. The extension pipe can easily be cut to the desired length to fit different tools and applications.

With the new Mark II versions the operator will also be able to take advantage of the following attributes:

  • Improved ergonomics
  • No moving parts on the tool-holder
  • Even lower risk of sustaining vibration related injuries*
  • The same function as with the protective finger sleeve but without the cost
  • More lightweight compared to previous versions
  • Facilitates and reduces the cost for service and maintenance
  • Includes an extension pipe for longer tools
diprofil tool holder

Dipro-fog MFB lubrication

Lubrication/air filtering unit to be used with all air driven Diprofil machines. By filtering and lubricating the compressed air, the lifetime of the machines is prolonged. Package consists of air filter, regulator, manometer, and fog lubrication device, all in one, with tubing and Dipro-fog oil type MFA-K.

Dipro-fog: MFB
Lubricaton Oil (0,5 l): MFA-K

Technical data

  • Max primary pressure: 16 bar
  • Max capacity at 7 bar: 1200 l/min
  • Hose connection: 7 mm
  • Secondary pressure: 0,5 - 10 bar
Dipro-fog MFB lubrication

Accessories for Air-Driven Machines

Each air-driven machine requires a quick coupling (HSL-M) as well as a fog lubricating device type Dipro-fog MFB to ensure efficient lubrication at all times. A 3-way hose connection and air hose is also available.

Accessories for Air-Driven Machines

Diprofil Protective Finger Sleeves (to suit older style units)

It's a well known fact that it's actually more common for operators to sustain vibration related injuries in the hand guiding the tool rather than in the hand holding the actual machine. With this in mind we have developed the Diprofil protective finger sleeves. The finger sleeves will improve guidance of the tool as there is no longer any need for putting your fingers on moving tools and/or machine parts.

The finger sleeves are compatible with both the Classic and the low-vibrating Di-Pro polishing-/filing machines and comes with an extension rod for applications when a longer tool is required. There are two different versions depending on the size of the original tool-holder (Ø 3,5 or 6,4 mm). Both versions comes in a handy box with the necessary tools and an instruction on how to attach it to the machine.

Diprofil Protective Finger Sleeves

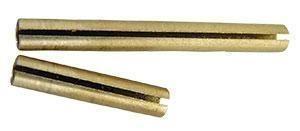

Reduction sleeves

Reduction sleeves for use of tools with Ø 2.35 mm shanks in Ø 3.0 mm collets. (to suit older style units)

Reduction sleeves
