Diprofil Mini Filing Machine

Dipromini

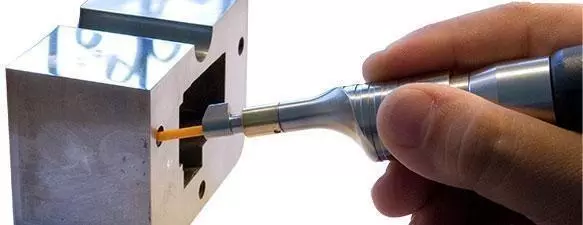

The natural choice when working in narrow and confined spaces. The compact and handy dimension makes it excellent for polishing and finishing applications on small and hard to reach surfaces. Using the Dipromini gives you total control even when working in the narrowest spaces on a delicate work-piece. For lowest possible vibration levels we recommend using light weight tools and tool-holders such as the THFS-1 and the THPS-3.

classic diprofil filing polishing machines

Technical Data for Diprofil Mini Polishing Machine (DIPROMINI)

  • Tool holder: max Ø 3.6 mm.
  • Speed: max 12.000 rpm .
  • Speed: recommended: 5.000 - 11.000 rpm.
  • Dimension: Ø 24 mm.
  • Weight: approx. 120 g.
  • Noise: < 70 dB(A) at 9.000 rpm.
  • Vibrations: stroke 0,5 mm: < 2.5 m/s2, stroke 1.0 mm: 1.5 - 3 m/s2, stroke 1.5 mm: 1.5 - 4 m/s2.
  • Frequency weighed hand/arm vibration, principally in accordance with ISO 28927-8.

Contact Kemet

Product Specification Stroke Lengh Model Code
Flexible-Shaft Drive - Slip Joint Connection Flexible-Shaft Drive - Slip Joint Connection The Diprofil Mini Polishing/Filing machine for flexble-shaft drive is available for connection to Slip Joint. Supplied with three different stroke lengths. 0.5 mm FMR/S5 332100
1.0 mm FMR/S10 333735
1.5 mm FMR/S15 330097
Flexible-Shaft Drive -
Ball Joint Connection Flexible-Shaft Drive -
Ball Joint Connection
The Diprofil Mini Polishing/Filing machine for flexible-shaftdrive is available for connection to Ball Joint. Supplied with three different stroke lengths. 0.5 mm FMR/B5 333737
1.0 mm FMR/B10 332071
1.5 mm FMR/B15 332072
Micro Motor Connection - Gesswein, Argofile & Uhandy Micro Motor Connection
- Gesswein, Argofile & Uhandy
The Dipromini Filing Machine for Gesswein,
Argofile and Uhandy connection can be supplied with three different stroke lengths.
0.5 mm FMR/G5 332003
1.0 mm FMR/G10 331998
1.5 mm FMR/G15 331999
Micro Motor Connection - NSK EMax Evolution, Eneska 3-1 and Eneska 3-2 Micro Motor Connection - NSK EMax Evolution,
Eneska 3-1 and Eneska 3-2
The Dipromini Filing Machine for NSK EMax Evolution, Eneska 3-1 or 3-2 connection can be supplied with three different stroke lengths. 0.5 mm FMR/N5 332018
1.0 mm FMR/N10 332140
1.5 mm FMR/N15 332139
Micro Motor Connection - NSK (Espert) and Eneska 4-1 Micro Motor Connection - NSK (Espert) and Eneska 4-1 The Dipromini Filing Machine for NSK and Eneska 4-1 connection can be supplied with three different stroke lengths. 0.5 mm FMR/E5 332076
1,0 mm FMR/E10 332077
1.5 mm FMR/E15 332078
Micro Motor Connection - Diprofil Motor type HPM-B1 Micro Motor Connection - Diprofil Motor type HPM-B1 Dipromini polishing/filing Machine with connection for Diprofil micro motor type HPM-B1 which should be connected to, and controlled by, the DIPROFIL DPU-3, TPU-20 or corresponding power units. 0.5 mm FMR/D5 332079
1,0 mm FMR/D10 332080
1.5 mm FMR/D15 332081

Dipromini Transverse

The Dipromini Transverse with its swinging side to side movement is ideal when working on difficult surface such as narrow shoulders and ribs. The side to side movement also makes it possible to polish the bottom surface in i.e. cavities without damaging the side walls. Variable stroke between 0-4 mm, that is easy to change by use of a hexagon key. The small and handy dimension improves control and effectiveness for polishing and finishing work. Recommended tool-holders THFS-1 and the THPS-3.

Technical Data for Diprofil Mini Polishing Machine (DIPROMINI TRANSVERSE)

  • Tool holder: max Ø 3.6 mm
  • Stroke length: Variable stroke 0-4 mm (measured 60 mm from the machine housing)
  • Speed: max 12.000 rpm (at max 2 mm stroke length)
  • Speed: recommended 5.000-11.000 rpm
  • Dimension: Ø 24 mm
  • Noise: < 78 dB(A) at 12.000 rpm
  • Vibrations: 1,5 - 3,5 m/s2.
  • Frequency weighed hand/arm vibration, principally in accordance with ISO 28927-8.
Product Specification Model Code
FMV/S Flexible-shaft Drive - Slip Joint Connection The Diprofil Transverse Mini Polishing/Filing machine for flexible-shaft drive is available for connection to Slip-joint. Weight: 235 g FMV/S 332127
FMV/B Flexible-shaft Drive - Ball Joint Connection The Diprofil Transverse Mini Polishing/Filing machine for flexible-shaft drive is available for connection to Ball-joint. Weight: 235 g FMV/B 332126
FMV/N Micro Motor
Connection - NSK EMax Evolution,
Eneska 3-1 and Eneska 3-2
The Diprofil Transverse Mini Polishing/Filing machine is available for NSK EMax Evolution, Eneska 3-1 and Eneska 3-2 connection.
Weight: 205 g
FMV/N 332020
FMV/E Micro Motor
Connection - NSK and Eneska 4-1
The Diprofil Transverse Mini Polishing/Filing machine is available for NSK and Eneska 4 connection. Weight: 210 g FMV/E 332128
FMV/G Micro Motor Connection - Gesswein, Argofile & Uhandy The Diprofil Transverse Mini Polishing/Filing machine is available for Gesswein, Argofile and Uhandy connection. Weight: 210 g FMV/G 332015
FMV/D Micro Motor
Connection -
Diprofifil Motor
type HPM-B1
Dipromini Transverse polishing/filing machine with connection for Diprofil micro motor type HPM-B1 (See page ‘T19’) which should be connected to, and controlled by, the DIPROFIL DPU-3, TPU-20 or corresponding power units. Weight: 195 g FMV/D 332070

Filing Tips & Holders

Profile / Shape Type Description Colour Code Grit size Code
filing tips dlt 1 DLT Diamond Filing Tips, from 30 micron to FEPA D181. A thin tip with rectangular shape, for use on all surfaces. Red D181 333015
Green D151 333009
Yellow D64 3330101
White 30 micron 3330111
filing tips dlt 2 DLT Diamond Filing Tips, from 30 micron to FEPA D151. A thin tip with spatula shape, for use in narrow spaces. Red D181 333219
Green D151 333012
Yellow D64 333013
White 30 micron 333014
filing tips lta 1 LTA Diamond Filing Tip, FEPA D64. For use on concave surfaces. Yellow D64 333336
filing tips lta 2 LTA Diamond Filing Tips, From 15 micron to FEPA D181. For use on concave surfaces. Red D181 333440
Green D151 333335
Gold D107 333439
Yellow D64 333438
White 30 micron 333437
Violet 15 micron 333436

Filing tip holders

Tool-holder to be used together with diamond tips (above) in the Dipromini polishing-/filing machines. Available in length 40 or 80 mm. FMR-20/21 (Set of both) code: 333098

filing tip holders

Super Stone holder

Tool-holder made of hardened steel for use together with ceramic fibre stones (Super stones) and lapping-/polishing tools with a thickness of 1 mm. Shank Ø: 3,0 mm Shank length: 18 mm Total length: 31,5 mm Width: 8 mm Weight: 4,3 g
Model: THFS-1
Code: 332068

Super Stone holder

Universal tool holder

Tool-holder made of hardened steel for use together with polishing stones and lapping-/polishing tools with a thickness of 3 mm. Shank Ø: 3,0 mm Shank length: 18 mm Total length: 31,5 mm Width: 8 mm Weight: 3,9 g
Model: THPS-3
Code: 332069

Universal tool holder

Dipromini Sets

dipromini sets
Contents of Set Model
Dipromini machine with 0.5 mm stroke length, micro-motor type HPM-B1 and power unit type DPU-3. FMR-SET-5S
Dipromini machine with 1.0 mm stroke length, micro-motor type HPM-B1 and power unit type DPU-3. FMR-SET-10S
Dipromini machine with 1.5 mm stroke length, micro-motor type HPM-B1 and power unit type DPU-3. FMR-SET-15S
Dipromini Transverse machine, micro-motor type HPM-B1 and power unit type DPU-3. FMV-SET-S
