Diprofil Lapping Tools

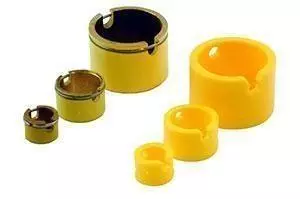

Lapping Rings

Rotating tools for use together with Diamond Compound in various lapping and polishing applications.

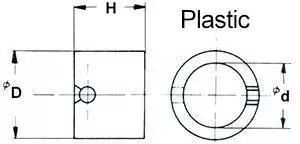

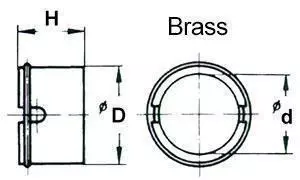

Lapping Ring sizes available

Material	Type	Ø D	Ø d	Height	Quantity	Code
Plastic	8	9	6	6	10 pcs	332178
	12	13	10	8	10 pcs	332045
	20	21	17	14	10 pcs	332179
Brass	8	8	6	6	10 pcs	332180
	12	12	10	8	10 pcs	332046
	20	20	17	14	10 pcs	332181

Mandrels for use together with Lapping rings. Snaps on and keeps rings flat against the work surface.

Mandrel sizes available

For use with:	Ø D	Shank Ø d	H	A	Code
Type 8 rings	8	3	6	5	332175
Type 12 rings	12	3	7.5	8	332047
Type 20 rings	20	3	7.5	8	332176
Type 20 rings	20	6	11	9	332177

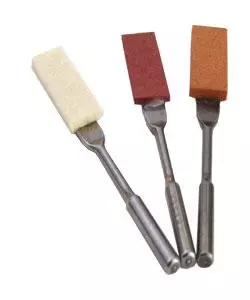

Lapping tools

Rectangular lapping tools on shank diameter 3,0 mm

Lapping Tool sizes & materials available

Type	Dimensions (AxBxC)	Code
Cast Iron	18 x 7 x 1	333039
Copper	18 x 7 x 1	333212
Fibre	18 x 7 x 1.5	333184
Balsa Wood	18 x 7 x 1.5	333185
Felt	18 x 7 x 3	333215

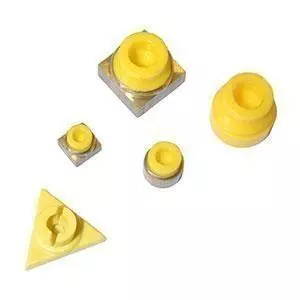

Lapping Bits

Lapping tools for use together with Diamond Compound and the Diprofil Polishing/Filing machines.

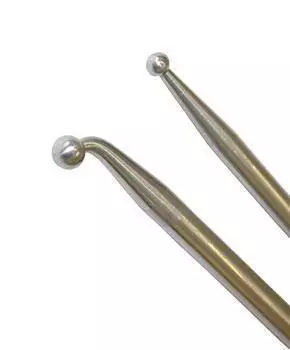

Ball-rods

For use together with Lapping bits.
