Semiconductor Microscopes

Semiconductor microscopes, also known as semiconductor inspection microscopes or semiconductor wafer inspection microscopes, are specialised optical instruments designed for inspecting and analysing semiconductor wafers and other microelectronics components. These microscopes are crucial in the semiconductor manufacturing industry and play a key role in ensuring the quality and reliability of microchips and electronic devices. Here are some key characteristics and uses of semiconductor microscopes:

  • High-powered optics for detailed examination of semiconductor wafers and microelectronics.
  • Brightfield and darkfield illumination for standard imaging and defect highlighting.
  • Automation and advanced software for efficient wafer inspection.
  • Precise wafer mapping to identify defects.
  • Defect identification and classification for quality control.
  • Wafer alignment and metrology for lithography processes.
  • Inspection of various wafer types.
  • Cleanroom compatibility for contamination control.

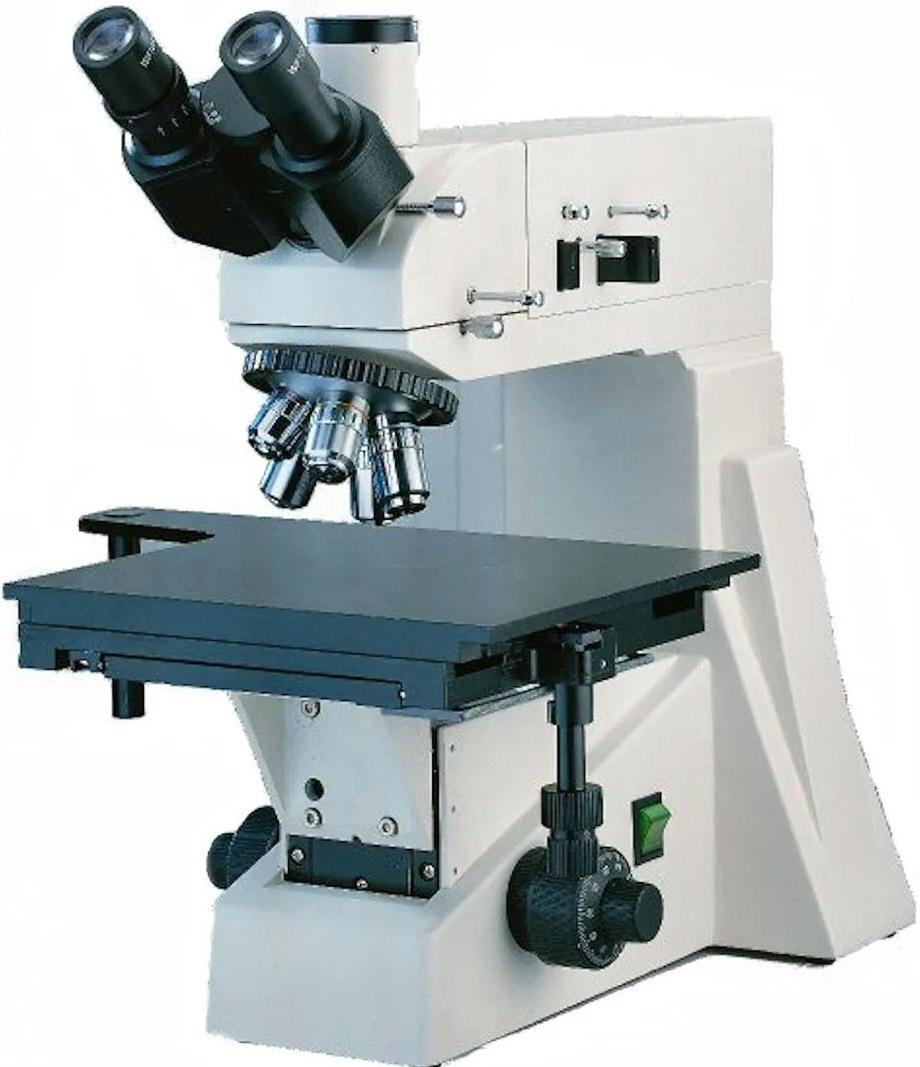

KMXJL101A, 50X – 800X, Materials/Semiconductor Routine & Research Microscope

This robust and dependable microscope is well-suited for observing silicon wafers, assemblies, and standard metallurgical reflective samples. It features a trinocular head for potential digital camera attachment and includes a comprehensive set of high-quality plan achromatic materials objectives. Specimens can be conveniently placed on the mechanical stage with XY stage controls, including a rapid traverse override for scanning larger areas. The microscope allows for adjustable focusing tension and includes a focus lock to safeguard the objectives from harm. Illumination is supplied by an integral LED reflected light illuminator with adjustable intensity, field and aperture diaphragms, a polariser, and a set of Y, G, B, and diffusion filters.

This microscope is constructed on durable KMXJL upright series industrial microscope frame, ensuring exceptional stability for the most demanding applications. It offers a range of optional accessories, including camera adaptors, digital cameras, image analysis software, extra objectives, and eyepieces. Additional product details:

  • Head: Trinocular
  • Eyepieces: 10x
  • Objectives: 5x, 10x, 20x, 40x, 80x Plan Achromatic Objectives
  • Stage: Large Mechanical Glide Stage with an overall size of 280mm x 270mm and a moving range of 204mm x 204mm
  • Illumination: LED Illuminator with Adjustable Intensity
Materials/Semiconductor Routine & Research Microscope

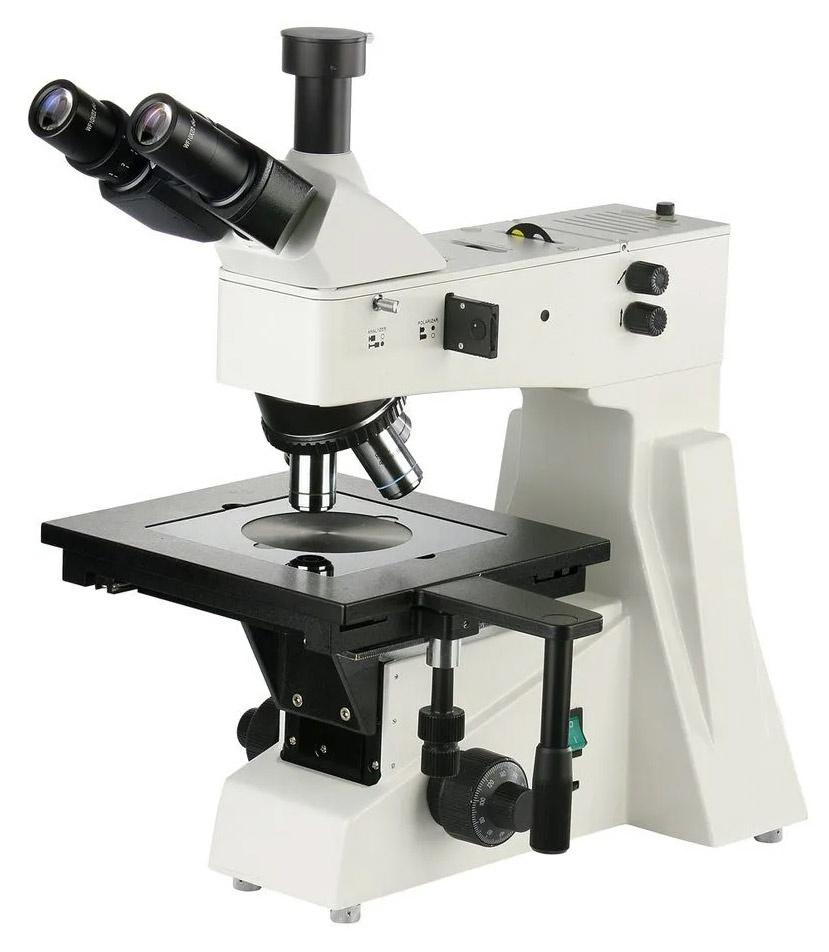

KMXJL302BD, 50X – 800X, Materials/Semiconductor Routine; Research Microscope

This high-capacity, premium materials microscope is well-suited for the examination of silicon wafers, assemblies, and standard metallurgical reflective samples. It boasts infinity optics with darkfield/brightfield incident (reflected) illumination, making it a versatile instrument. Additionally, it features a trinocular head ready for digital camera attachment and a complete set of high-quality infinity BD plan achromatic materials objectives mounted on a rotatable objective turret.

The microscope offers a generously sized mechanical stage, accommodating even 8-inch wafers, with XY stage controls, including a rapid traverse override for efficient scanning of large areas. You can fine-tune the focus with adjustable tension, and a focus lock safeguards the objectives from potential damage.

It is equipped with a powerful integral reflected light illuminator, featuring a 50W halogen lamp with adjustable intensity, field and aperture diaphragms, a polariser, and a set of Y, G, B, and diffusion filters. This microscope is built on largest and highly robust KMXJL upright series industrial microscope frame, ensuring superior stability for demanding applications. Various optional accessories are available, including camera adaptors, digital cameras, image analysis software, additional objectives, and eyepieces. Additional product information:

  • Eyepieces and Objectives: Pair of WF10X FN22 Widefield Eyepieces, 5X, 10X, 20X, 40X, 80X BD Infinity Plan Achromatic Objectives
  • Head: Trinocular head with interpupillary distance adjustment
  • Stand & Focus Mechanism: Large Stable Stand with coaxial coarse and fine focus
  • Stage and Condenser: Very Large Mechanical Glide Stage (204 X 204mm)
  • Illumination: 50W Halogen Light with Adjustable Intensity
Materials/Semiconductor Routine; Research Microscope
