Benchtop Abrasive Cutoff Machine

Specimen integrity begins with high quality cutting. Perfectly cut surfaces reduce the number of subsequent preparation stages and shorten the total sample preparation time to the minimum. SERVOCUT 302 offers the advantage of combining different cutting techniques and methods into the same machine to obtain superior cut surfaces for a broad range of heavy duty cutting applications.

metallographic cutting machine

SERVOCUT 302 has X-Y-Z triple axes cutting capability: Z-axis Chop cutting: The specimen is clamped and the cut-off wheel approaches the specimen. Y-axis Table-feed cutting: Feeding the clamped specimen into a rotating cut-off wheel using a T-slotted feed table. X-axis Parallel Cutting (optional): Parallel serial sectioning in the x-axis with optional movable x-bed.

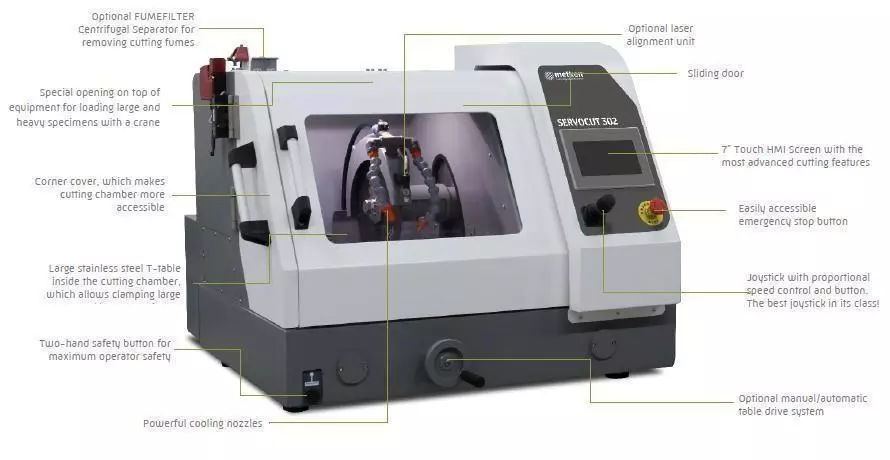

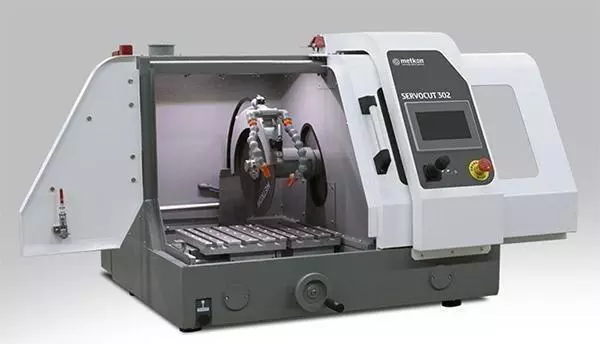

SERVOCUT 302 consists of a cast aluminium base on which the motor and the working space are provided in the form of two separate housings. A large window of Lexan and a sealed LED lamp in the cutting chamber allow precise observation of the cutting process at an optimum degree of safety. A standard 80 mm dia. outlet for fume extraction is at the back of the hood. A large, T-slotted feed table located in the cutter’s generous work area can accommodate a variety of different clamping devices which need to be selected. The feed table provides a long travel depth making the SERVOCUT 302 ideal for cutting long or deep samples in a single pass. Side access port makes it possible to make transverse sections on long specimens. Stainless small parts tray to catch small specimens is supplied with the cutting table as standard

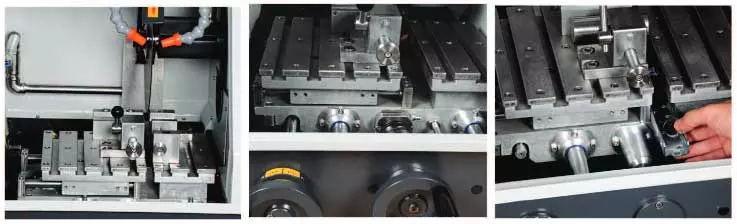

servocut 301 closeup

SERVOCUT 302 cutting machine has the highest safety standards. The interlocking safety device does not allow the motor to be started unless the hood is closed. The hood can not be opened before the cutting motor is stopped. The electronic brake system, which is a standard feature, brings the cutter to a quick full stop in seconds after it has been switched of

Automatic Operation

Cutting Methods

Chop cutting ( Z-axis ) and Table feed cutting ( Y-axis ) combined with pulse cutting in automatic models is standard. Optional Cutting Methods: Diagonal Cut - for increased cutting capacity. Step Cut - for extra hard materials Segment Cut - for difficult workpieces are available which make SERVOCUT 302 the perfect choice for a broad range of heavy duty cutting applications.

Multi-Slice Cutting:

The optional automatic x-table allows programmable plane parallel sectioning. Slices of equal thickness with number of slices as well as programming slices of different thickness is possible.

SERVOCUT 302 automatic models have advanced techniques and software with programmable HMI touch screen controls increasing the productivity, sample consistency and operator comfort.

Cutting Parameters:

The preselection of the cutting force level as well as the setting of cutting feed rate (0,02-5mm/sec) is possible from the touch screen LCD. The feed rate is automatically adjusted, if needed reduced, resulting in perfect cuts and eliminating sample and machine damage. Pulse cutting mode is a standard feature in all automatic models for cutting extra hard specimens. Optional speed regulating unit is available to adjust the cut-off wheel speed between 600-4000 rpm.

Programmable Return Positions

SERVOCUT 302 has 3 different stop modes: Stay at the end of cutting: Stops when the specimen has been cut through. Back to starting point: Stops when it has returned to its starting point. Back to reference point: Stops when the ultimate reset point in all axes has been reached.

Database

A library of 99 different cutting programs with related specimen name or number can be saved with all cutting parameters which can be recalled at anytime. Data with cutting consumables is also listed for easy selection

Cooling System

A closed loop recirculating cooling unit is a recommended option for the cutting machines. The cutting surface is cooled by spray nozzles whose water jets hit both the cutting wheel and the specimen. This provides an efficient cooling of the sample and prevents the overheating of the surface structure.

For cutting materials which generate a lot of swarf or for higher volume usage, we recommend “ Band filter Unit ” which is optionally available. It is environmentally friendly filtering the coolant and depositing the swarf in a separate container for easy disposal.

Servocut 302 Models

Model SERVOCUT 302-MM SERVOCUT 302-MA SERVOCUT 302-AA
Chop Cutting, Z Axis Manual Manual Automatic
Table Feed Cutting, Y Axis Manual Automatic Automatic
Parallel Cutting, X Axis Manual (Optional) Manual/Automatic (Opt.) Automatic (Optional)
HMI Touch Screen, (inch) - 7" 7"
Step;Segment;Diagonal Cut - - Optional
Radip Pulse Cutting - Standard Standard
Smart Feed Control - Standard Standard
Max. wheel Diameter, (mm) Ø300 Ø300 Ø300
Max. Cutting Capacity Ø300, (mm) Ø110 Ø110 Ø110
Max. Cutting Capacity Ø300, # (mm) 70 x 200 70 x 200 70 x 200
Y Axis Travel, (mm) 220 mm 220 mm 220 mm
X Axis Travel, (mm) 95 mm (optional) 95 mm (optional) 95 mm (optional)
Z Axis Travel, (mm) 125 mm 125 mm 125 mm
T-Slot table dimension, mm (WxD) 380 x 250 495 x 275 495 x 275
T-Slot dimension, (mm) 12 12 12
Cutting Power kW (S1) 4 4 4
Wheel Speed, rpm 2800 600-4000 600-4000
Cutting Feedrate, (μm/s) - 20-5000 20-5000
Size, WxDxH, (cm) 94 x 99 x 76 94 x 99 x 76 94 x 99 x 76
Weight, (kgs) 250 250 250
Cooling Unit, (lt) 80 80 80
