Dispensing Systems for Lapping Machines

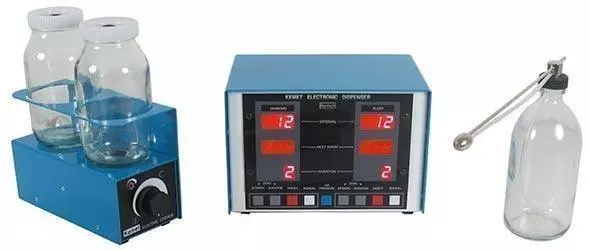

The Kemet Electronic Dispenser distributes Kemet Liquid Diamond and Lubricating Fluid by means of touch sensitive settings. The digital display shows dispensing intervals, durations and air pressure at a glance. Dispensing is achieved to an accuracy of 0.2 gm, eliminating wastage and simplifying cost control.

Electronic Dispenser

The Kemet Liquid Diamond Stirrer Unit maintains a consistent distribution of diamond particles within the slurry by using a small non-contaminant plastic coated paddle magnet, which ensures even diamond suspension. The Kemet Dual Dispensing Bar can be positioned to dispense Liquid Diamond and Lubricating Fluid accurately on to the plate without spray bounce.

  • Supplied as standard with Kemet Flat Lapping and Polishing Machines and Plates
  • Easily fitted to existing conventional Flat Lapping Machines to improve productivity
  • Fully controlled metering of Kemet Liquid Diamond and Lubricating Fluid using independent pressure and time settings
  • Easy to install and operate

Contact us

Name
Email
Company Name
Town / City
Country
Telephone
Product of interest?
Spam prevention
captcha
Reload


Electronic Dispenser

Dispenses Kemet Liquid Diamond and Lubricating Fluid automatically at pre-set intervals in conjunction with a lapping and polishing machine cycle timer.

Air requirements: 1 Bar min - 5 Bar max. Air pressure: Dual circuit. Air pressure display: Bar or psi Adjustable duration of spray: 1-9 seconds. Adjustable intervals of spray: 1-999 seconds Spray memory: Standard. Manual override: Standard Electrical supply: 110V or 220V - 240V / 50Hz or 60Hz (self adjusting for supply voltage & frequency)

Height Width Depth (exc. air filter) Nett Weight Code
150 mm 230 mm 150 mm 3.74kg 360499

Electronic Dispenser

Liquid Diamond Stirrer Unit

Quiet electric unit has fully variable speed control and is provided with a magnetic stirrer paddle also holds the bottle for the lubricating fluid.

Height Width Depth Power Code
120 mm 90 mm 215 mm 50Hz or 60Hz 230V 360534
110V 360536

diamond slurry Stirrer

Dual Dispensing bars

Supplied complete with two bottles and plastic tubing. Fully adjustable head for vertical and radial positioning.

Type Length Reach Adjustable Height Section of head Bottle capacity Code
Standard 340 mm 260 mm 100 mm 20 x 20 mm 400ml 360511
Long 495 mm 415 mm 100 mm 20 x 20 mm 400ml 360510

Dual Dispensing bars

Single spray head

Supplied with bottle, cap and plastic tubing.

Length Code
250 mm 360514
380 mm 360512

Single spray head
