Cobalt Leaching

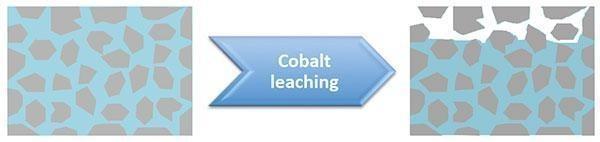

  • Tungsten carbide grains embedded in a cobalt matrix
  • Cobalt easily oxidized in aqueous solution
  • Cobalt binder leaching impacts substrate cohesion

We have been developing a dedicated product line to avoid Cobalt leaching during the acqueous cleaning process: VACUKLEEN which contains cobalt leatching inhibitors.

cobalt leaching
Benefits
  • Excellent cleanliness of the Tungsten carbide and HSS
  • Remove all kinds of pollution (oil, grease, grinding & polishing compounds…)
  • Prevent from Cobalt Leaching and Corrosion
  • Extend life time of the parts
  • Gives a bright & shinny aspect to the surface
  • Safe & Environment friendly
removing grinding compound and oils from tools

Removing grinding compounds and oils from cutting tools (H.S.S hard metal)

Without cobalt leaching, prior to vacuum metallisation (P.V.D)

Cleaning Finishing
1 2 3 4 5 6 7
VACUKLEEN SUPRA VACUKLEEN SUPRA Tap water rinse VACUKLEEN 30 Tap water rinse Cascade Hot air drying
Conc: 3-5%
Temp: 50-75°C
Time: 3-4 min
Conc: 3-5%
Temp: 50-75°C
Time: 3-4 min
Conc: 3%
Temp: 50-60°C
Time: 3-4 min
Demi water Demi water
US US   US

Grinding residues

Cleaning Finishing
1 2 3 4 5 6 7 8
VACUKLEEN 30 Tap water rinse VACUKLEEN CO Tap water rinse VACUKLEEN AC Tap water rinse Cascade Hot air drying
Conc: 3-5%
Temp: 50-60°C
Time: 3-4 min
Conc: 3-5%
Temp: 50-75°C
Time: 3-4 min
Conc: 2-3%
Temp: 50-75°C
Time: 3-4 min
Demi water Demi water
US   US   US

Oils and grinding compounds

Cleaning Finishing
1 2 3 4 5
VACUKLEEN CO VACUKLEEN 30 VACUKLEEN AC   Hot air drying
Conc: 3-5%
Temp: 50-75°C
Time: 3-4 min
Conc: 3-5%
Temp: 50-60°C
Time: 3-4 min
Conc: 2-3%
Temp: 50-60°C
Time: 3-4 min
Demi water rinse Demi water rinse
US US US

Process for very dirty but slightly oily parts with deoxidation

Cleaning Finishing
1 2 3 4 5 6 7 8
VACUKLEEN CO VACUKLEEN 30 Tap water rinse VACUKLEEN AC Tap water rinse Demi water rinse Demi water rinse Hot air drying
Conc: 5%
Temp: 60°C
Time: 5 min
Conc: 5%
Temp: 50°C
Time: 4 min
Conc: 2-3%
Temp: 50-60°C
Time: 3-4 min
Temp: 40°C
Time: 40 min
Temp: 40°C
Time: 40 min
Temp: 90-110°C
Time: 2x4 min
US US   US   US

Process for very dirty and very oily parts without deoxidation:

Cleaning Finishing
1 2 3 4 5 6 7 8
VACUKLEEN 347 VACUKLEEN CO Tap water rinse VACUKLEEN AC Tap water rinse Demi water rinse Demi water rinse Hot air drying
Conc: 5%
Temp: 65°C
Time: 5 min
Conc: 4%
Temp: 60°C
Time: 4 min
Conc: 2-3%
Temp: 50-60°C
Time: 3-4 min
Temp: 30-40°C
Time: 40 min
Temp: 30-40°C
Time: 40 min
Temp: 90-110°C
Time: 2x4 min
US US   US   US
  • VacuKleen Co: Grinding & polishing paste elimination
  • VacuKleen 30: Deoxidation effect
  • VacuKleen AC: Deposition of a protective fi lm
  • VacuKleen 347: Desemulsifying effect > Use with an oil separator

New application: VACUKLEEN TM in wet blasting!

Included in wet blasting processes as an additive VACUKLEEN TM:

  • Protects blasted parts from corrosion
  • Ensures an extremly high level of cleanliness at low temperature
  • Increases the effectiveness of the binder metal
  • Safe for the skin and the inhalation (aerosol)
  • Environment friendly
