Cleaning Aluminium Deposits, Staining & Burn Marks - Case Study

Customers Criteria: Remove all aluminium
Component: Extrusion Tooling
Material: Tool Steel
Contamination prior to cleaning: Aluminium deposit, staining burn marks
Total number off: 1
Number off per run: 1

Ultrasonic Cleaner Cleaning Agent Temperature(s) Concentration
Versa 120 Ultrasonic H14 60°C 15%
Versa 120 Ultrasonic De-ionised water 50°C 100%
Versa 120 Dryer N/A 65°C 5 Minutes

Process for removing aluminium deposit and burn marks

The part was placed in the basket and set for a cycle time of 10 minutes. As soon as the part is submerged in the bath you can see the H14 attacking and breaking down the aluminium. The part was left in the ultrasonic tank until all the aluminium had been removed which took 18 hours. This cycle time can be reduced by increasing the H14 concentration. The concentration was not increased through out the test.

% Satisfactorily Cleaned: 100%.

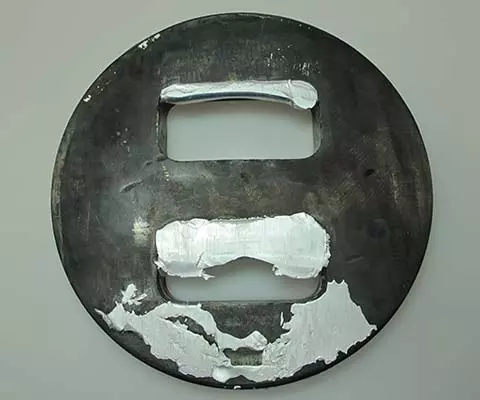

Before Removing Aluminium Deposit & Burn Marks

before removing staining marks

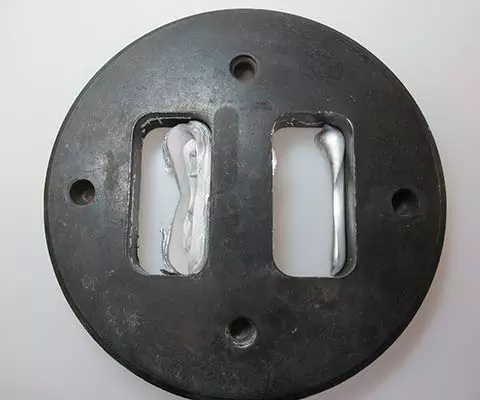

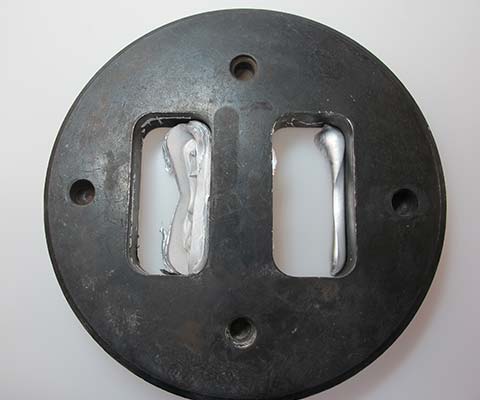

before removing aluminium deposits

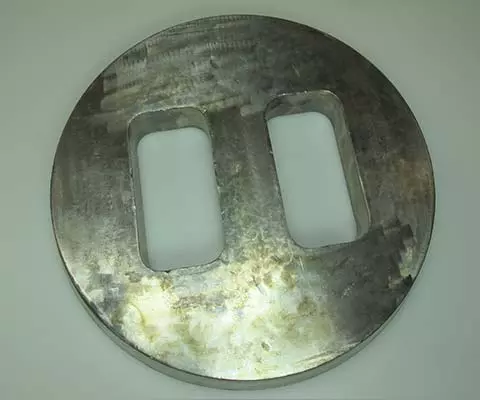

After Removing Aluminium Deposit & Burn Marks

after removing staining marks

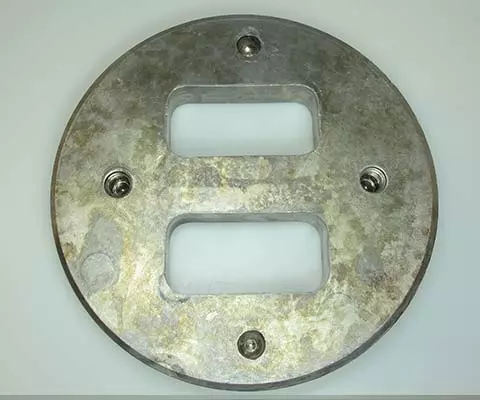

after removing aluminium deposits

Customers Criteria: Remove staining, brighten
Component: Cup mould
Material: Brass
Contamination prior to cleaning: Staining, burn marks, dull
Total number off: 1
Number off per run: 1

Ultrasonic Cleaner Cleaning Agent Temperature(s) Concentration
Kemet 12 Rodastel 30 45°C 3%
Kemet 12 De-ionised water 50°C 100%
Versa 120 Dryer N/A 65°C 5 Minutes

Process for removing staining and burn marks

The mould was placed into the basket and then submerged into the tank and set for a cycle time of 10 minutes. After the wash cycle the part was placed into the rinse tank to neutralise and rinse any left on contamination. The rinse cycle time is 3 minutes. The part was then placed into the versa 120 hot air dryer set at 65°C for 5 minutes.

% Satisfactorily Cleaned: 100%.

Before Removing Staining & Burn Marks

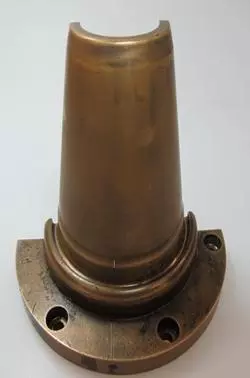

before removing staining

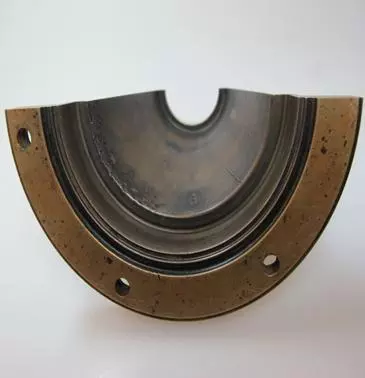

before removing burn marks

After Removing Staining & Burn Marks

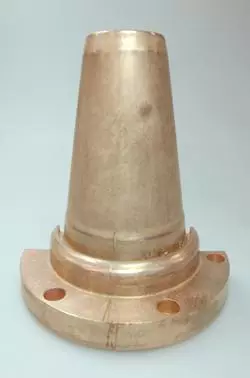

after removing staining

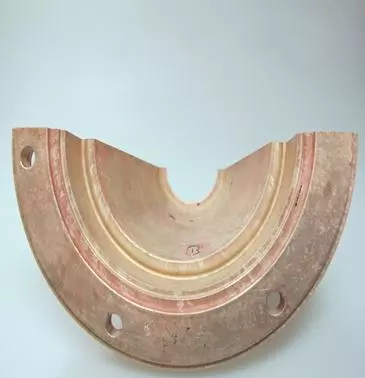

after removing burn marks
